SRM-3605 U - Echo Brush Cutter (SN: 20001001 - 20999999) Carburetor Parts Diagram

Brush Cutter

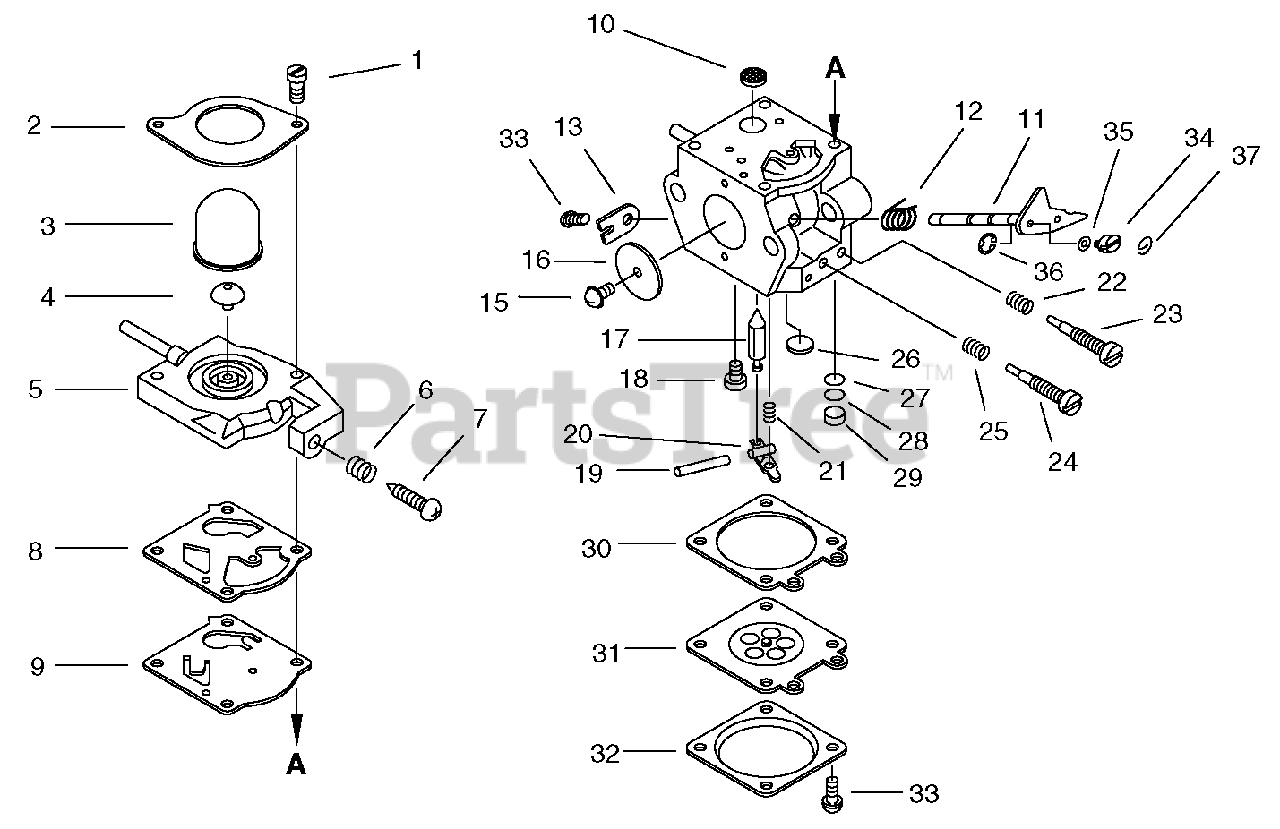

Carburetor Parts Diagram

  • Title

Echo 12300055630

CARBURETOR WT-344

$88.99

$

In Stock, only 3 left!

0

1

Echo 12311043130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12314209560

RETAINER, PURGE BULB

$6.99

$

Usually ships in 2-4 days

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$4.99

$

In Stock, Qty 20+

0

4

Echo 12317135630

VALVE, CHECK

$3.99

$

In Stock, only 2 left!

0

5

Echo 12312443130

COVER, PUMP

$21.99

$

Usually ships in 2-4 days

0

6

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 16

0

7

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

8

Echo 12312509560

GASKET, PUMP

$3.99

$

Usually ships in 2-4 days

0

9

Echo 12311209560

DIAPHRAGM, PUMP

$11.99

$

Usually ships in 2-4 days

0

10

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 19

0

11

Echo 12311755630

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

12

Echo 12311347530

SPRING, THROTTLE RETURN

$4.99

$

Usually ships in 2-4 days

0

13

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

15

$1.49

$

In Stock, Qty 13

0

16

Echo 12311623230

VALVE, THROTTLE

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12313704260

VALVE, INLET NEEDLE

$3.99

$

Usually ships in 2-4 days

0

18

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

19

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

20

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

21

Echo 12312206530

SPRING, METERING LEVER
(Superseded to 12312203660)

$1.49

$

Usually ships in 2-4 days

0

22

$2.99

$

Usually ships in 2-4 days

0

23

Echo 12312009560

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

24

Echo 12311824430

NEEDLE - LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

25

$3.49

$

Usually ships in 2-4 days

0

26

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

27

Echo 12316810630

SCREEN, SPARK ARRESTOR

$1.99

$

Usually ships in 2-4 days

0

28

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

29

Echo 12314617330

PLUG, WELCH

$4.99

$

Usually ships in 2-4 days

0

30

Echo 12314027230

GASKET, METERING

$3.99

$

In Stock, only 1 left!

0

31

Echo 12314103930

DIAPHRAGM, METERING

$13.99

$

In Stock, Qty 6

0

32

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

33

$1.99

$

Usually ships in 2-4 days

0

34

$1.99

$

Usually ships in 2-4 days

0

35

$0.99

$

In Stock, only 1 left!

0

36

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

37

$2.49

$

Usually ships in 2-4 days

0
