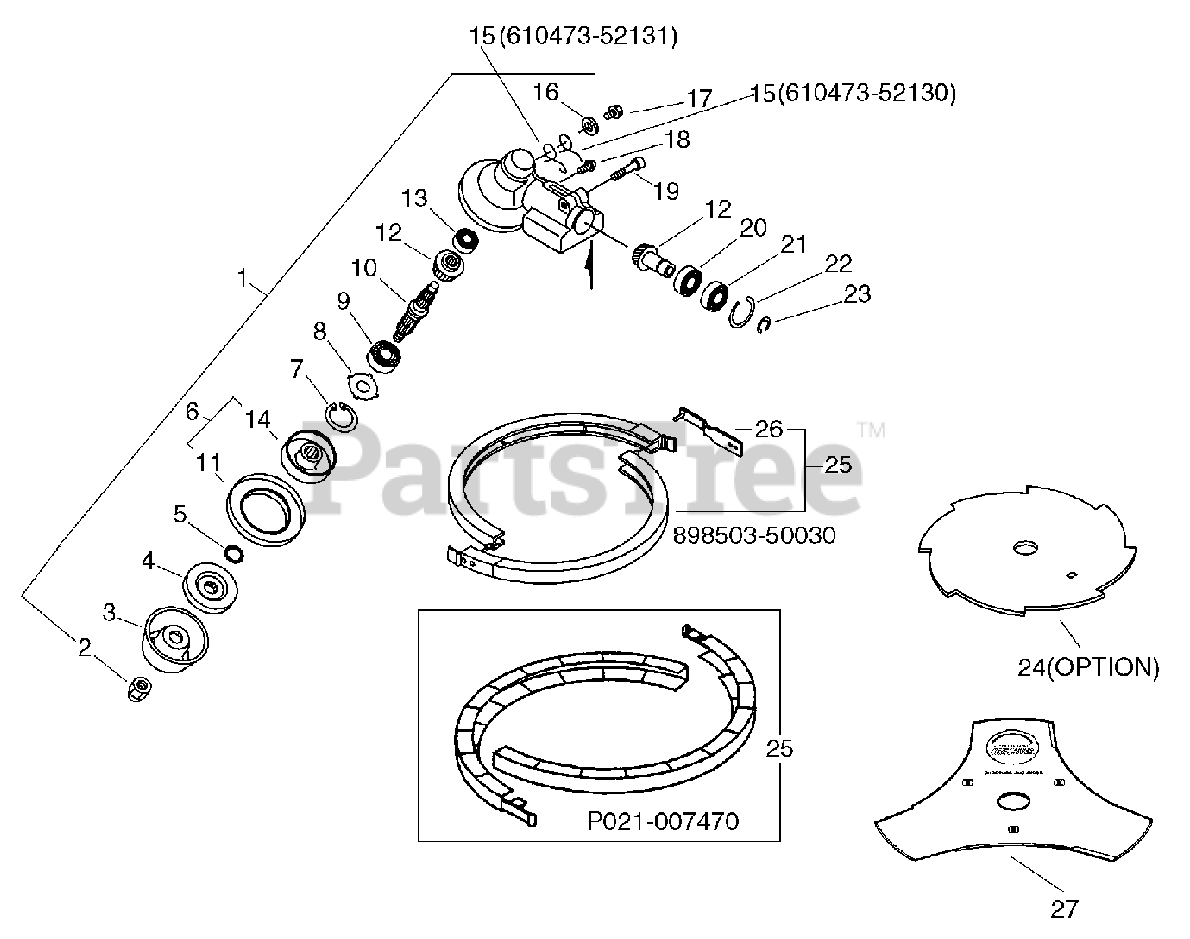

SRM-360 SL - Echo String Trimmer (SN: S00836001001 - S00836999999) Gear Case(U-Handle Type), Blade Parts Diagram

String Trimmer

Gear Case(U-Handle Type), Blade Parts Diagram

  • Title

1

Echo 61040056930

GEAR CASE ASSY
(Superseded to 61040056931)

Note: Sus. by 610400-56932

$189.99

$

Usually ships in 2-4 days

0

1

Echo 61040056930

GEAR CASE ASSY
(Superseded to 61040056931)

Note: Sus. by 610400-56932

$189.99

$

Usually ships in 2-4 days

0

1

Echo 61040056931

GEAR CASE ASSY
(Superseded to 61040056932)

Note: Sus. by 610400-56932

$189.99

$

Usually ships in 2-4 days

0

1

Echo 61040056931

GEAR CASE ASSY
(Superseded to 61040056932)

Note: Sus. by 610400-56932

$189.99

$

Usually ships in 2-4 days

0

1

Echo 61040056932

GEAR CASE ASSY
(Superseded to P021012590)

Note: Sus. by P021-012590

$189.99

$

Usually ships in 2-4 days

0

1

Echo 61040056932

GEAR CASE ASSY
(Superseded to P021012590)

Note: Sus. by P021-012590

$189.99

$

Usually ships in 2-4 days

0

2

Echo 61032052130

NUT - 10

$4.99

$

Usually ships in 2-4 days

0

2

Echo 61032052130

NUT - 10

$4.99

$

Usually ships in 2-4 days

0

3

Echo 69922956830

GUARD

$24.99

$

Usually ships in 2-4 days

0

3

Echo 69922956830

GUARD

$24.99

$

Usually ships in 2-4 days

0

4

Echo 61031452130

ADAPTOR, BLADE - LOWER

$22.99

$

Usually ships in 2-4 days

0

4

Echo 61031452130

ADAPTOR, BLADE - LOWER

$22.99

$

Usually ships in 2-4 days

0

5

Echo 90072000012

O-RING - 12

$1.49

$

In Stock, only 2 left!

0

5

Echo 90072000012

O-RING - 12

$1.49

$

In Stock, only 2 left!

0

6

Echo 61031352930

ADAPTOR, BLADE - UPPER
(Superseded to C535000000)

Note: Sus. by C535-000001

$38.99

$

Usually ships in 2-4 days

0

6

Echo 61031352930

ADAPTOR, BLADE - UPPER
(Superseded to C535000000)

Note: Sus. by C535-000001

$38.99

$

Usually ships in 2-4 days

0

6

Echo C535000000

BLADE ADAPTER KIT
(Superseded to C535000001)

Note: Sus. by C535-000001

$38.99

$

Usually ships in 2-4 days

0

6

Echo C535000000

BLADE ADAPTER KIT
(Superseded to C535000001)

Note: Sus. by C535-000001

$38.99

$

Usually ships in 2-4 days

0

6

Echo C535000001

BLADE ADAPTER KIT
(Superseded to 61031352932)

$38.99

$

Usually ships in 2-4 days

0

6

Echo C535000001

BLADE ADAPTER KIT
(Superseded to 61031352932)

$38.99

$

Usually ships in 2-4 days

0

11

Echo 61035256830

PLATE, CUP

$22.99

$

Usually ships in 2-4 days

0

11

Echo 61035256830

PLATE, CUP

$22.99

$

Usually ships in 2-4 days

0

14

Echo C535000010

ADAPTOR, BLADE - UPPER
(Superseded to C535000011)

Note: Sus. by C535-000011

$34.99

$

Usually ships in 2-4 days

0

14

Echo C535000010

ADAPTOR, BLADE - UPPER
(Superseded to C535000011)

Note: Sus. by C535-000011

$34.99

$

Usually ships in 2-4 days

0

14

Echo C535000011

ADAPTOR, BLADE - UPPER

$34.99

$

Usually ships in 2-4 days

0

14

Echo C535000011

ADAPTOR, BLADE - UPPER

$34.99

$

Usually ships in 2-4 days

0

7

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

7

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

8

Echo 61044456830

WASHER

$1.49

$

Usually ships in 2-4 days

0

8

Echo 61044456830

WASHER

$1.49

$

Usually ships in 2-4 days

0

9

Echo 90081206201

BEARING, BALL - 6201

$12.99

$

In Stock, only 2 left!

0

9

Echo 90081206201

BEARING, BALL - 6201

$12.99

$

In Stock, only 2 left!

0

10

Echo 61031056930

GEAR - SHAFT
(Superseded to 61031056931)

Note: Sus. by 610310-56931

$46.99

$

Usually ships in 2-4 days

0

10

Echo 61031056930

GEAR - SHAFT
(Superseded to 61031056931)

Note: Sus. by 610310-56931

$46.99

$

Usually ships in 2-4 days

0

12

Echo 61030056930

GEAR SET

$129.99

$

Usually ships in 2-4 days

0

12

Echo 61030056930

GEAR SET

$129.99

$

Usually ships in 2-4 days

0

13

Echo 90081000629

BEARING, BALL - 629

$15.99

$

In Stock, only 2 left!

0

13

Echo 90081000629

BEARING, BALL - 629

$15.99

$

In Stock, only 2 left!

0

15

Echo 61047352130

SPRING
(Superseded to Discontinued)

Note: Drive Shaft Sr/Nr 001820 and before

$

$

Not available

15

Echo 61047352130

SPRING
(Superseded to Discontinued)

Note: Drive Shaft Sr/Nr 001820 and before

$

$

Not available

15

Echo 61047352131

SPRING
(Superseded to V452001310)

Note: Drive Shaft Sr/Nr 001821 and after

$6.99

$

Usually ships in 2-4 days

0

15

Echo 61047352131

SPRING
(Superseded to V452001310)

Note: Drive Shaft Sr/Nr 001821 and after

$6.99

$

Usually ships in 2-4 days

0

16

Echo 90060350008

WASHER - 8

$1.49

$

Usually ships in 2-4 days

0

16

Echo 90060350008

WASHER - 8

$1.49

$

Usually ships in 2-4 days

0

17

Echo 61043450030

BOLT - 8X6
(Superseded to 90010008008)

Note: Sus. by 610434-50031

$0.99

$

In Stock, Qty 11

0

17

Echo 61043450030

BOLT - 8X6
(Superseded to 90010008008)

Note: Sus. by 610434-50031

$0.99

$

In Stock, Qty 11

0

17

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, Qty 6

0

17

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, Qty 6

0

18

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

18

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

19

Echo 90016206030

SCREW - 6X30

$1.49

$

Usually ships in 2-4 days

0

19

Echo 90016206030

SCREW - 6X30

$1.49

$

Usually ships in 2-4 days

0

20

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, only 3 left!

0

20

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, only 3 left!

0

21

Echo 90080706001

BEARING, BALL - 6001

Note: Drive Shaft Sr/Nr 001820 and before

$11.99

$

In Stock, only 2 left!

0

21

Echo 90080706001

BEARING, BALL - 6001

Note: Drive Shaft Sr/Nr 001820 and before

$11.99

$

In Stock, only 2 left!

0

21

Echo 90080306001

BEARING, BALL - 6001

Note: Drive Shaft Sr/Nr 001821 and after

$16.99

$

Usually ships in 2-4 days

0

21

Echo 90080306001

BEARING, BALL - 6001

Note: Drive Shaft Sr/Nr 001821 and after

$16.99

$

Usually ships in 2-4 days

0

22

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 13

0

22

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 13

0

23

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

23

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

24

Echo 69600155630

BLADE, 8-CUTTER 10IN
(Superseded to 69600155631)

Note: Sus. by 696001-55631

$42.99

$

Usually ships in 2-4 days

0

24

Echo 69600155630

BLADE, 8-CUTTER 10IN
(Superseded to 69600155631)

Note: Sus. by 696001-55631

$42.99

$

Usually ships in 2-4 days

0

24

Echo 69600155631

BLADE, 8-CUTTER 10IN
(Superseded to 69600155632)

Note: OPTION

$42.99

$

Usually ships in 2-4 days

0

24

Echo 69600155631

BLADE, 8-CUTTER 10IN
(Superseded to 69600155632)

Note: OPTION

$42.99

$

Usually ships in 2-4 days

0

25

Echo 89850350030

COVER, BLADE
(Superseded to P021007470)

Note: Sus. by P021-007470

$12.99

$

Usually ships in 2-4 days

0

25

Echo 89850350030

COVER, BLADE
(Superseded to P021007470)

Note: Sus. by P021-007470

$12.99

$

Usually ships in 2-4 days

0

25

Echo P021007470

COVER, BLADE

$12.99

$

Usually ships in 2-4 days

0

25

Echo P021007470

COVER, BLADE

$12.99

$

Usually ships in 2-4 days

0

26

Echo 89856243230

CLAMP

Note: Can be used on 898503-50030 only

$3.49

$

Usually ships in 2-4 days

0

26

Echo 89856243230

CLAMP

Note: Can be used on 898503-50030 only

$3.49

$

Usually ships in 2-4 days

0

27

Echo X405000000

BLADE, BRUSHCUTTER

Note: Sus. by X405-000001

$

$

Not available

27

Echo X405000000

BLADE, BRUSHCUTTER

Note: Sus. by X405-000001

$

$

Not available

27

Echo X405000001

BLADE, BRUSHCUTTER

$

$

Currently unavailable

27

Echo X405000001

BLADE, BRUSHCUTTER

$

$

Currently unavailable
