SRM-360 SL - Echo String Trimmer (SN: S00836001001 - S00836999999) Cylinder, Crankcase, Piston, Fan Cover(Sr/Nr 36003113 and before) Parts Diagram

String Trimmer

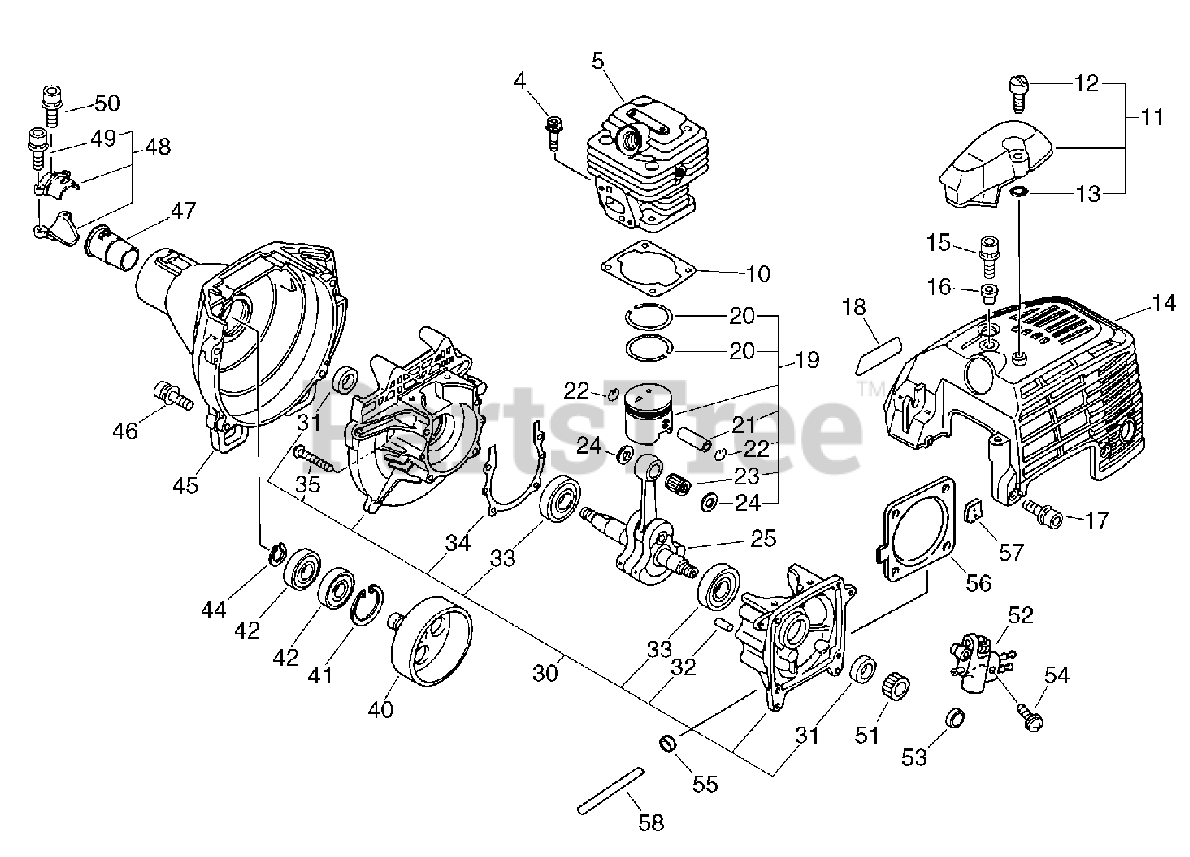

Cylinder, Crankcase, Piston, Fan Cover(Sr/Nr 36003113 and before) Parts Diagram

  • Title

4

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

4

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

5

Echo 10103455830

CYLINDER
(Superseded to A130000600)

Note: Sus. by A130-000601

$154.99

$

Usually ships in 2-4 days

0

5

Echo 10103455830

CYLINDER
(Superseded to A130000600)

Note: Sus. by A130-000601

$154.99

$

Usually ships in 2-4 days

0

5

Echo A130000600

CYLINDER
(Superseded to A130000601)

Note: Sus. by A130-000601

$154.99

$

Usually ships in 2-4 days

0

5

Echo A130000600

CYLINDER
(Superseded to A130000601)

Note: Sus. by A130-000601

$154.99

$

Usually ships in 2-4 days

0

5

Echo A130000601

CYLINDER

$154.99

$

Usually ships in 2-4 days

0

5

Echo A130000601

CYLINDER

$154.99

$

Usually ships in 2-4 days

0

10

Echo 10101054430

GASKET, CYLINDER

$5.99

$

Usually ships in 2-4 days

0

10

Echo 10101054430

GASKET, CYLINDER

$5.99

$

Usually ships in 2-4 days

0

11

Echo 15990255230

GUARD KIT

$13.99

$

Usually ships in 2-4 days

0

11

Echo 15990255230

GUARD KIT

$13.99

$

Usually ships in 2-4 days

0

12

Echo 352325-55230

KNOB, FASTENER

$3.49

$

Usually ships in 2-4 days

0

12

Echo 352325-55230

KNOB, FASTENER

$3.49

$

Usually ships in 2-4 days

0

13

Echo 90072000004

O-RING - 4

$1.99

$

In Stock, Qty 14

0

13

Echo 90072000004

O-RING - 4

$1.99

$

In Stock, Qty 14

0

14

Echo 10151455630

COVER, ENGINE

$47.99

$

Usually ships in 2-4 days

0

14

Echo 10151455630

COVER, ENGINE

$47.99

$

Usually ships in 2-4 days

0

15

Echo 90016205020

SCREW - 5X20

Note: Sus. by 91118-05020

$1.49

$

In Stock, Qty 20+

0

15

Echo 90016205020

SCREW - 5X20

Note: Sus. by 91118-05020

$1.49

$

In Stock, Qty 20+

0

16

Echo 10153155230

COLLAR

$3.49

$

Usually ships in 2-4 days

0

16

Echo 10153155230

COLLAR

$3.49

$

Usually ships in 2-4 days

0

17

Echo 90016205012

SCREW - 5X12

Note: Sus. by 91118-05012

$0.99

$

In Stock, Qty 20+

0

17

Echo 90016205012

SCREW - 5X12

Note: Sus. by 91118-05012

$0.99

$

In Stock, Qty 20+

0

18

Echo 89011264730

LABEL - MODEL

Note: Sus. by X547-001020

$

$

Currently unavailable

18

Echo 89011264730

LABEL - MODEL

Note: Sus. by X547-001020

$

$

Currently unavailable

19

Echo 10000055830

PISTON KIT
(Superseded to 10000055831)

Note: Sus. by P021-007410

$94.99

$

Usually ships in 2-4 days

0

19

Echo 10000055830

PISTON KIT
(Superseded to 10000055831)

Note: Sus. by P021-007410

$94.99

$

Usually ships in 2-4 days

0

19

Echo 10000055831

PISTON KIT
(Superseded to P021007410)

Note: Sus. by P021-007410

$94.99

$

Usually ships in 2-4 days

0

19

Echo 10000055831

PISTON KIT
(Superseded to P021007410)

Note: Sus. by P021-007410

$94.99

$

Usually ships in 2-4 days

0

19

Echo 10000055832

PISTON KIT

Note: Sus. by P021-007410

$

$

Currently unavailable

19

Echo 10000055832

PISTON KIT

Note: Sus. by P021-007410

$

$

Currently unavailable

19

Echo P021007410

PISTON KIT
(Superseded to P021015780)

$94.99

$

Usually ships in 2-4 days

0

20

Echo 10001142230

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

20

Echo 10001142230

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

21

Echo 10001327430

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

21

Echo 10001327430

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

22

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

Usually ships in 2-4 days

0

22

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

Usually ships in 2-4 days

0

22

Echo 10001503931

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

22

Echo 10001503931

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

23

Echo 10001216131

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

23

Echo 10001216131

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

24

Echo 10001453630

SPACER, PISTON

$5.99

$

Usually ships in 2-4 days

0

24

Echo 10001453630

SPACER, PISTON

$5.99

$

Usually ships in 2-4 days

0

25

Echo 10010056930

CRANKSHAFT ASSY

$

$

Currently unavailable

25

Echo 10010056930

CRANKSHAFT ASSY

$

$

Currently unavailable

30

Echo 10020456930

CRANKCASE KIT

$

$

Currently unavailable

30

Echo 10020456930

CRANKCASE KIT

$

$

Currently unavailable

31

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

31

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

32

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

32

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$0.99

$

In Stock, Qty 20+

0

33

Echo 90081036201

BEARING, BALL - 6201
(Superseded to 9403536201)

Note: Sus. by 94035-36201

$7.99

$

In Stock, Qty 9

0

33

Echo 90081036201

BEARING, BALL - 6201
(Superseded to 9403536201)

Note: Sus. by 94035-36201

$7.99

$

In Stock, Qty 9

0

33

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

33

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

34

Echo 10024255430

GASKET, CRANKCASE
(Superseded to V102000040)

$3.99

$

Usually ships in 2-4 days

0

34

Echo 10024255430

GASKET, CRANKCASE
(Superseded to V102000040)

$3.99

$

Usually ships in 2-4 days

0

35

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

35

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

40

Echo 17500549930

DRUM, CLUTCH

$68.99

$

Usually ships in 2-4 days

0

40

Echo 17500549930

DRUM, CLUTCH

$68.99

$

Usually ships in 2-4 days

0

41

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 19

0

41

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 19

0

42

Echo 90080706001

BEARING, BALL - 6001

$11.99

$

In Stock, only 2 left!

0

42

Echo 90080706001

BEARING, BALL - 6001

$11.99

$

In Stock, only 2 left!

0

44

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

44

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

45

Echo 10151155430

COVER, FAN

$

$

Currently unavailable

45

Echo 10151155430

COVER, FAN

$

$

Currently unavailable

46

Echo 90016205020

SCREW - 5X20

Note: Sus. by 91118-05020

$1.49

$

In Stock, Qty 20+

0

46

Echo 90016205020

SCREW - 5X20

Note: Sus. by 91118-05020

$1.49

$

In Stock, Qty 20+

0

47

Echo 61091055630

CUSHION
(Superseded to 61091051830)

Note: Sus. by 610910-51830

$10.99

$

In Stock, only 1 left!

0

47

Echo 61091055630

CUSHION
(Superseded to 61091051830)

Note: Sus. by 610910-51830

$10.99

$

In Stock, only 1 left!

0

47

Echo 61091051830

CUSHION

$10.99

$

In Stock, only 1 left!

0

47

Echo 61091051830

CUSHION

$10.99

$

In Stock, only 1 left!

0

48

Echo 61090355630

HOLDER KIT
(Superseded to P021012800)

Note: Sus. by P021-012800

$17.99

$

Usually ships in 2-4 days

0

48

Echo 61090355630

HOLDER KIT
(Superseded to P021012800)

Note: Sus. by P021-012800

$17.99

$

Usually ships in 2-4 days

0

49

Echo 90016205025

SCREW - 5X25

Note: Sus. by 91118-05025

$0.99

$

In Stock, Qty 20+

0

49

Echo 90016205025

SCREW - 5X25

Note: Sus. by 91118-05025

$0.99

$

In Stock, Qty 20+

0

50

Echo 90016205012

SCREW - 5X12

Note: Sus. by 91118-05012

$0.99

$

In Stock, Qty 20+

0

50

Echo 90016205012

SCREW - 5X12

Note: Sus. by 91118-05012

$0.99

$

In Stock, Qty 20+

0

51

Echo 43706350430

GEAR - WORM

$

$

Currently unavailable

51

Echo 43706350430

GEAR - WORM

$

$

Currently unavailable

52

Echo 43700249930

AUTO-OILER ASSY

Note: Sus. by 437002-49931

$

$

Currently unavailable

52

Echo 43700249930

AUTO-OILER ASSY

Note: Sus. by 437002-49931

$

$

Currently unavailable

52

Echo 43700249931

AUTO-OILER ASSY

$

$

Currently unavailable

52

Echo 43700249931

AUTO-OILER ASSY

$

$

Currently unavailable

53

Echo 10012750430

COLLAR - 8

$

$

Currently unavailable

53

Echo 10012750430

COLLAR - 8

$

$

Currently unavailable

54

Echo 90024004016

SCREW - 4X16

$

$

Currently unavailable

54

Echo 90024004016

SCREW - 4X16

$

$

Currently unavailable

55

Echo 17881003930

GROMMET

$1.49

$

In Stock, only 3 left!

0

55

Echo 17881003930

GROMMET

$1.49

$

In Stock, only 3 left!

0

56

Echo 10158656930

SPACER

$

$

Currently unavailable

56

Echo 10158656930

SPACER

$

$

Currently unavailable

57

Echo 43724356930

GROMMET

$

$

Currently unavailable

57

Echo 43724356930

GROMMET

$

$

Currently unavailable

58

Echo 13271734330

PIPE - 2X4X115

$

$

Currently unavailable

58

Echo 13271734330

PIPE - 2X4X115

$

$

Currently unavailable
