SRM-360 SL - Echo String Trimmer (SN: S00836001001 - S00836999999) Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

  • Title

Echo 12420064730

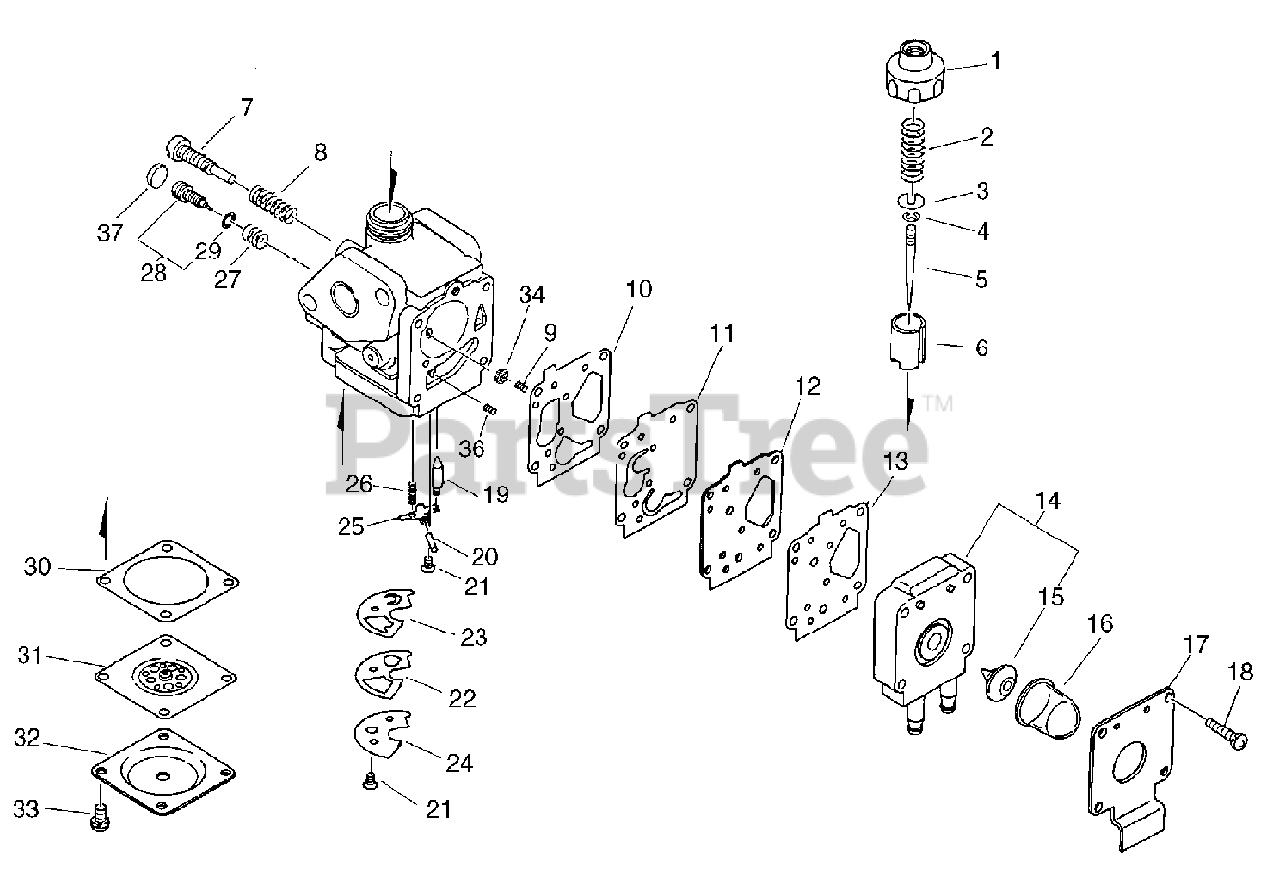

CARBURETOR

Note: Sus. by 124200-64731

$

$

Currently unavailable

Echo 12420064730

CARBURETOR

Note: Sus. by 124200-64731

$

$

Currently unavailable

Echo 12420064731

CARBURETOR

$124.99

$

Usually ships in 2-4 days

0

Echo 12420064731

CARBURETOR

$124.99

$

Usually ships in 2-4 days

0

1

Echo 12411305530

COVER - TOP

$10.99

$

Usually ships in 2-4 days

0

1

Echo 12411305530

COVER - TOP

$10.99

$

Usually ships in 2-4 days

0

2

Echo 12411450330

SPRING, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12411450330

SPRING, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

3

Echo 12411505530

SEAT, SPRING

$1.99

$

In Stock, Qty 12

0

3

Echo 12411505530

SEAT, SPRING

$1.99

$

In Stock, Qty 12

0

4

Echo 12411605530

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

4

Echo 12411605530

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

5

Echo 12431752030

NEEDLE, JET

Note: Can be used on 124200-64730

$

$

Currently unavailable

5

Echo 12431752030

NEEDLE, JET

Note: Can be used on 124200-64730

$

$

Currently unavailable

5

Echo P004000580

NEEDLE, JET

Note: Can be used on 124200-64731

$

$

Currently unavailable

5

Echo P004000580

NEEDLE, JET

Note: Can be used on 124200-64731

$

$

Currently unavailable

6

Echo 12431855430

VALVE, THROTTLE

$

$

Currently unavailable

6

Echo 12431855430

VALVE, THROTTLE

$

$

Currently unavailable

7

Echo 12415905530

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 4 left!

0

7

Echo 12415905530

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 4 left!

0

8

Echo 12416011120

SPRING

$2.49

$

In Stock, only 1 left!

0

8

Echo 12416011120

SPRING

$2.49

$

In Stock, only 1 left!

0

9

Echo 12436753630

SPRING, CHECK VALVE

Note: Can be used on 124200-64730

$

$

Currently unavailable

9

Echo 12436753630

SPRING, CHECK VALVE

Note: Can be used on 124200-64730

$

$

Currently unavailable

9

Echo P004000600

SPRING, ADJUST
(Superseded to Discontinued)

Note: Can be used on 124200-64731

$

$

Not available

9

Echo P004000600

SPRING, ADJUST
(Superseded to Discontinued)

Note: Can be used on 124200-64731

$

$

Not available

10

Echo 12436112710

GASKET, PUMP

$2.99

$

In Stock, only 2 left!

0

10

Echo 12436112710

GASKET, PUMP

$2.99

$

In Stock, only 2 left!

0

11

Echo 12436412710

DIAPHRAGM, PUMP

$15.99

$

Usually ships in 2-4 days

0

11

Echo 12436412710

DIAPHRAGM, PUMP

$15.99

$

Usually ships in 2-4 days

0

12

Echo 12436212710

PLATE, PUMP

$18.99

$

In Stock, only 1 left!

0

12

Echo 12436212710

PLATE, PUMP

$18.99

$

In Stock, only 1 left!

0

13

Echo 12436312710

GASKET, PUMP

$6.99

$

Usually ships in 2-4 days

0

13

Echo 12436312710

GASKET, PUMP

$6.99

$

Usually ships in 2-4 days

0

14

Echo 12437955430

COVER, PUMP
(Superseded to P004003710)

$25.99

$

In Stock, only 3 left!

0

14

Echo 12437955430

COVER, PUMP
(Superseded to P004003710)

$25.99

$

In Stock, only 3 left!

0

15

Echo 12437455430

VALVE, CHECK

$13.99

$

Usually ships in 2-4 days

0

15

Echo 12437455430

VALVE, CHECK

$13.99

$

Usually ships in 2-4 days

0

16

Echo 12438055430

BULB, PURGE

$7.49

$

In Stock, only 1 left!

0

16

Echo 12438055430

BULB, PURGE

$7.49

$

In Stock, only 1 left!

0

17

Echo 12434255430

COVER, PUMP

$5.99

$

Usually ships in 2-4 days

0

17

Echo 12434255430

COVER, PUMP

$5.99

$

Usually ships in 2-4 days

0

18

Echo 90024103014

SCREW - 3X14

$0.99

$

Usually ships in 2-4 days

0

18

Echo 90024103014

SCREW - 3X14

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12432052830

VALVE, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

19

Echo 12432052830

VALVE, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

20

Echo 12433221330

PIN, METERING LEVER

$1.99

$

In Stock, only 3 left!

0

20

Echo 12433221330

PIN, METERING LEVER

$1.99

$

In Stock, only 3 left!

0

21

Echo 90027303008

SCREW - 3X8

$

$

Currently unavailable

21

Echo 90027303008

SCREW - 3X8

$

$

Currently unavailable

22

Echo 12437453630

VALVE, CHECK

$11.99

$

In Stock, only 1 left!

0

22

Echo 12437453630

VALVE, CHECK

$11.99

$

In Stock, only 1 left!

0

23

Echo 12437512710

GASKET

$6.99

$

Usually ships in 2-4 days

0

23

Echo 12437512710

GASKET

$6.99

$

Usually ships in 2-4 days

0

24

Echo 12434554930

PLATE

$

$

Currently unavailable

24

Echo 12434554930

PLATE

$

$

Currently unavailable

25

Echo 12432150430

LEVER, INLET

$

$

Currently unavailable

25

Echo 12432150430

LEVER, INLET

$

$

Currently unavailable

26

Echo 12433121330

SPRING

$1.49

$

In Stock, only 2 left!

0

26

Echo 12433121330

SPRING

$1.49

$

In Stock, only 2 left!

0

27

Echo 12435521330

SPRING, ADJUST

$1.99

$

In Stock, Qty 10

0

27

Echo 12435521330

SPRING, ADJUST

$1.99

$

In Stock, Qty 10

0

28

Echo 12435412710

NEEDLE - HIGH SPEED

$15.99

$

Usually ships in 2-4 days

0

28

Echo 12435412710

NEEDLE - HIGH SPEED

$15.99

$

Usually ships in 2-4 days

0

28

Echo P004000630

SCREW, MAIN ADJUST

$

$

Currently unavailable

28

Echo P004000630

SCREW, MAIN ADJUST

$

$

Currently unavailable

29

Echo 12435621330

O-RING

$

$

Currently unavailable

29

Echo 12435621330

O-RING

$

$

Currently unavailable

29

Echo P004000610

O-RING

$

$

Currently unavailable

29

Echo P004000610

O-RING

$

$

Currently unavailable

30

Echo 12435861830

GASKET, DIAPHRAGM

Note: Can be used on 124200-64730

$3.49

$

Usually ships in 2-4 days

0

30

Echo 12435861830

GASKET, DIAPHRAGM

Note: Can be used on 124200-64730

$3.49

$

Usually ships in 2-4 days

0

30

Echo P004000590

GASKET, DIAPHRAGM

Note: Can be used on 124200-64731

$

$

Currently unavailable

30

Echo P004000590

GASKET, DIAPHRAGM

Note: Can be used on 124200-64731

$

$

Currently unavailable

31

Echo 12434155430

DIAPHRAGM

Note: Can be used on 124200-64730

$

$

Currently unavailable

31

Echo 12434155430

DIAPHRAGM

Note: Can be used on 124200-64730

$

$

Currently unavailable

31

Echo 12434152830

DIAPHRAGM

Note: Can be used on 124200-64731

$

$

Currently unavailable

31

Echo 12434152830

DIAPHRAGM

Note: Can be used on 124200-64731

$

$

Currently unavailable

32

Echo 12432421330

COVER, DIAPHRAGM

$4.49

$

In Stock, only 1 left!

0

32

Echo 12432421330

COVER, DIAPHRAGM

$4.49

$

In Stock, only 1 left!

0

33

Echo 90024103008

SCREW - 3X8

$0.99

$

Usually ships in 2-4 days

0

33

Echo 90024103008

SCREW - 3X8

$0.99

$

Usually ships in 2-4 days

0

34

Echo P004000010

STRAINER

$4.49

$

Usually ships in 2-4 days

0

34

Echo P004000010

STRAINER

$4.49

$

Usually ships in 2-4 days

0

36

Echo 12436755430

SPRING

$2.99

$

Usually ships in 2-4 days

0

36

Echo 12436755430

SPRING

$2.99

$

Usually ships in 2-4 days

0

37

Echo P004000570

PLATE

Note: Can be used on 124200-64731

$3.99

$

Usually ships in 2-4 days

0

37

Echo P004000570

PLATE

Note: Can be used on 124200-64731

$3.99

$

Usually ships in 2-4 days

0
