SRM-3400 - Echo String Trimmer (Type 1) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer (Type 1)

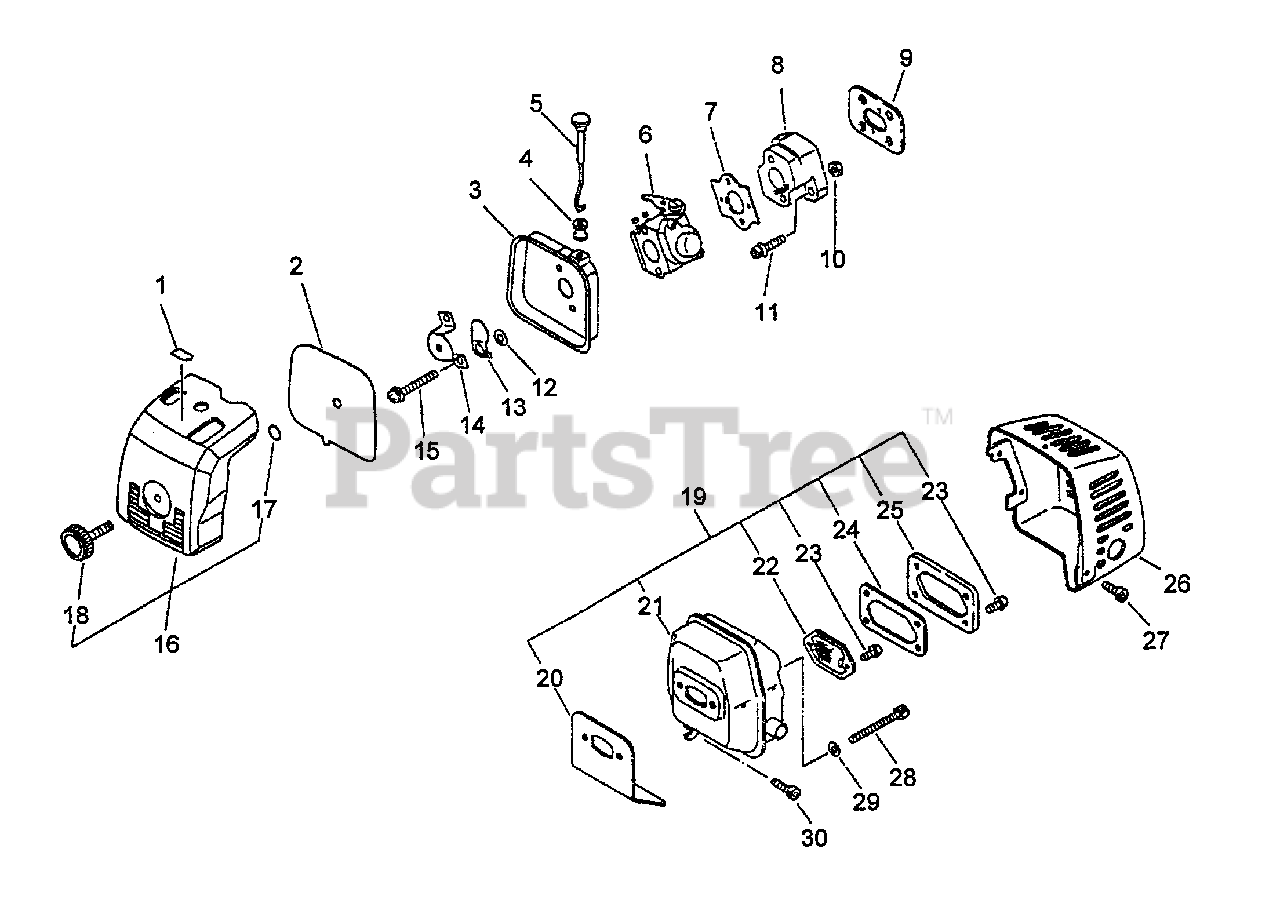

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 89012152130

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

2

Echo 13031051830

FILTER, AIR - HEAVY DUTY

Note: Use air/fuel filter kit P/N 90030

$7.49

$

In Stock, Qty 20+

0

3

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 8

0

5

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

6

Echo 12300055730

CARBURETOR WT-333
(Superseded to 12300055830)

Note: Type 1 & Type 1E (California emissions)

$119.99

$

In Stock, only 1 left!

0

7

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, only 2 left!

0

8

Echo 13001755630

INSULATOR, INTAKE

$14.99

$

In Stock, only 1 left!

0

9

Echo 13001055730

GASKET, INTAKE

$2.49

$

Usually ships in 2-4 days

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

12

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

14

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$5.49

$

In Stock, only 3 left!

0

15

Echo 90016205057

SCREW - 5X57

$1.99

$

Usually ships in 2-4 days

0

16

Echo 13030252130

AIR FILTER COVER ASSY
(Superseded to 13030252131)

Note: Includes ITEMS 17-18

$15.99

$

In Stock, Qty 5

0

17

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 10

0

18

Echo 13040616331

THUMBSCREW

$5.49

$

In Stock, only 1 left!

0

19

Echo 14580055730

MUFFLER ASSY

Note: Includes items 20 - 25

$78.99

$

Usually ships in 2-4 days

0

20

Echo 14551055730

GASKET, EXHAUST

$9.99

$

Usually ships in 2-4 days

0

21

Echo 14580655730

MUFFLER
(Superseded to Discontinued)

$

$

Not available

22

Echo 14590555730

SCREEN, SPARK ARRESTOR

$5.49

$

Usually ships in 2-4 days

0

23

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

24

Echo 14586655730

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

25

Echo 14586155730

GUIDE, EXHAUST
(Superseded to 14586155731)

$5.99

$

Usually ships in 2-4 days

0

26

Echo 14562155730

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

27

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

28

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

29

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

30

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0
