SRM-3400 - Echo String Trimmer (Type 1) Engine, Crankcase, Fan Housing, Clutch Drum, Cover Parts Diagram

String Trimmer (Type 1)

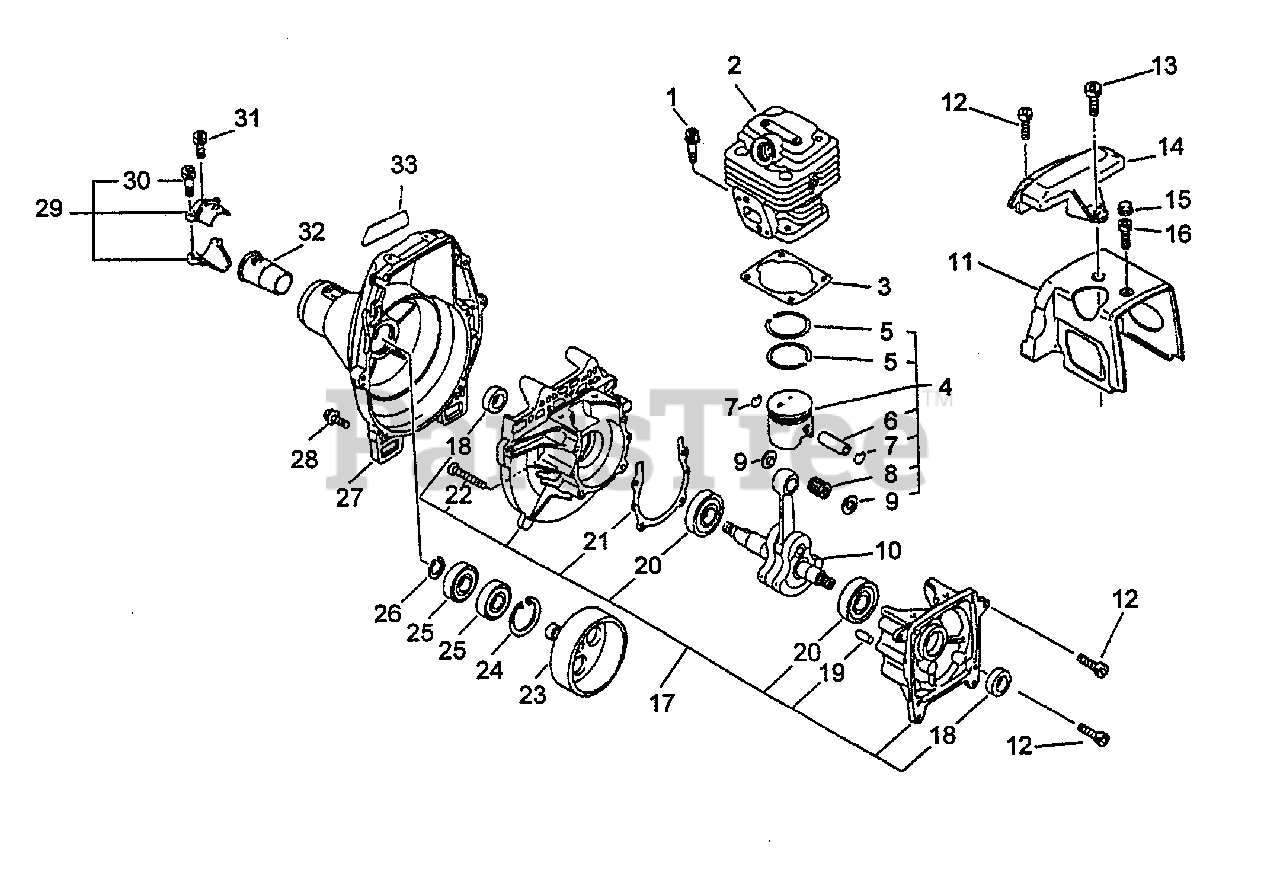

Engine, Crankcase, Fan Housing, Clutch Drum, Cover Parts Diagram

  • Title

1

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo 10103455830

CYLINDER
(Superseded to A130000600)

$154.99

$

Usually ships in 2-4 days

0

3

Echo 10101055430

GASKET, CYLINDER

Note: Use gasket set 88900055730

$2.99

$

Usually ships in 2-4 days

0

4

Echo 10000055830

PISTON KIT
(Superseded to 10000055831)

Note: Includes items 5 - 9

$94.99

$

Usually ships in 2-4 days

0

5

Echo 10001142230

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

6

Echo 10001327430

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

7

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

In Stock, Qty 10

0

8

Echo 10001216131

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

9

Echo 10001453630

SPACER, PISTON

$5.99

$

Usually ships in 2-4 days

0

10

Echo 10010055430

CRANKSHAFT ASSY

$244.99

$

Usually ships in 2-4 days

0

11

Echo 10151455730

COVER, ENGINE
(Superseded to 10157655730)

$22.99

$

In Stock, only 1 left!

0

12

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

13

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

14

Echo 15990540930

GUARD - TOP

$12.99

$

Usually ships in 2-4 days

0

15

Echo 88051609220

SCREW

$3.99

$

Usually ships in 2-4 days

0

16

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

17

Echo 10020455430

CRANKCASE KIT

Note: Includes items 18 - 22

$345.99

$

Usually ships in 2-4 days

0

18

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, only 1 left!

0

19

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

20

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 11

0

21

------------------

GASKET, CRANKCASE

Note: Use gasket set 86900055730

$

$

Not available

22

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

23

Echo 17500549930

DRUM, CLUTCH

$68.99

$

Usually ships in 2-4 days

0

24

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

25

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 8

0

26

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

27

Echo 10151155730

CASE, FAN

$94.99

$

Usually ships in 2-4 days

0

28

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

29

Echo 61090355630

HOLDER KIT
(Superseded to P021012800)

Note: includes item 30

$17.99

$

Usually ships in 2-4 days

0

30

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

31

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

32

Echo 61091051830

CUSHION

$10.99

$

In Stock, only 1 left!

0

33

Echo 89011255830

LABEL - MODEL SRM-3400

$3.99

$

Usually ships in 2-4 days

0

Echo SB1029

SHORT BLOCK -- SB1029

$312.99

$

Usually ships in 2-4 days

0

Echo 88900055730

GASKET KIT

$

$

Not available

Echo 10101055430

GASKET, CYLINDER

$2.99

$

Usually ships in 2-4 days

0

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, only 2 left!

0

Echo 13001055730

GASKET, INTAKE

$2.49

$

Usually ships in 2-4 days

0

Echo 14551055430

GASKET, EXHAUST

$13.99

$

Usually ships in 2-4 days

0

Echo 14586655730

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available

Echo 90013

ENGINE MAINTENANCE KIT
(Superseded to 90060)

$

$

Not available

Echo 90030

RePower FILTER KIT
(Superseded to 90153)

$18.99

$

In Stock, Qty 13

0
