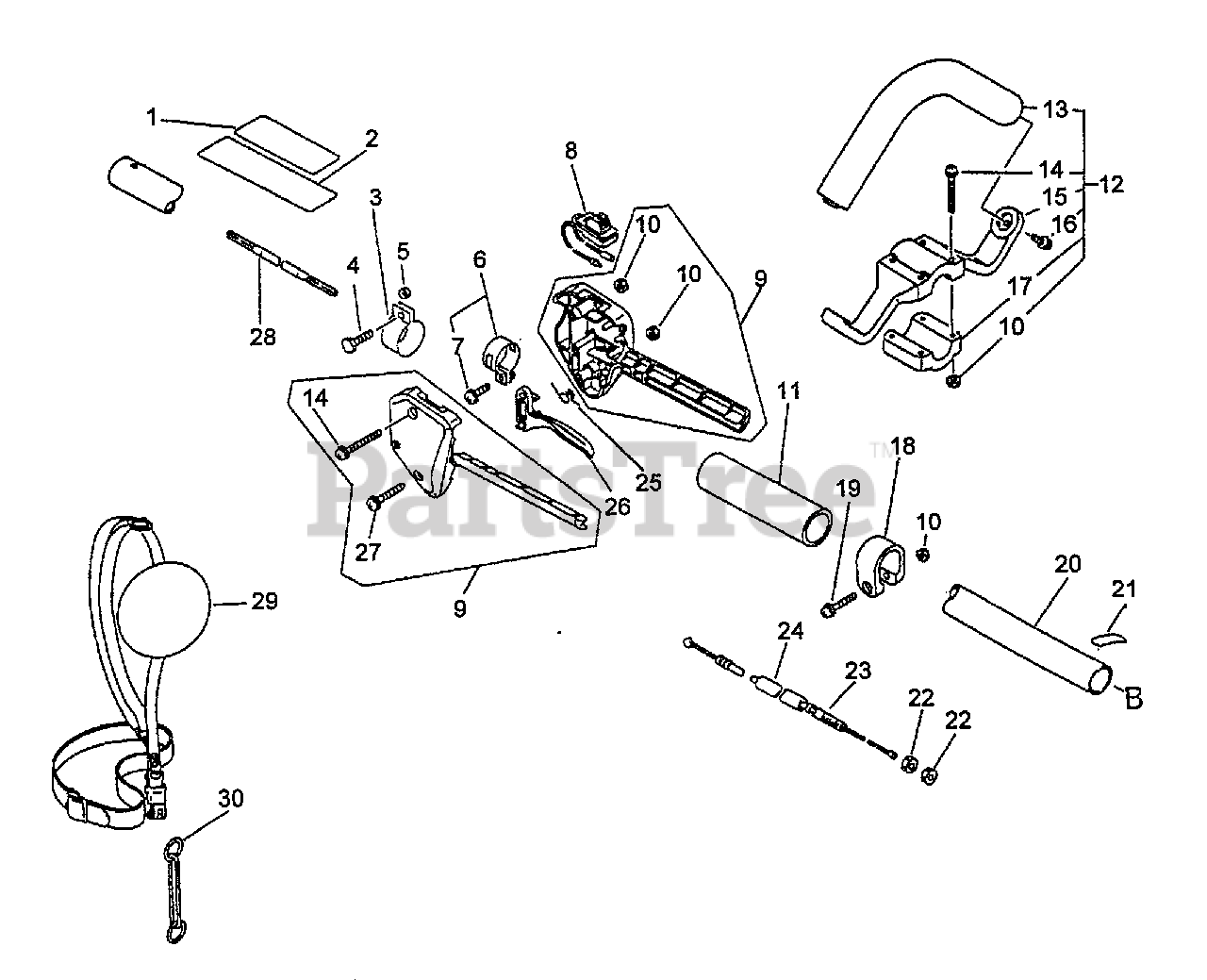

SRM-3400 - Echo String Trimmer (Type 1) Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

String Trimmer (Type 1)

Driveshaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

  • Title

1

Echo 89017740630

LABEL - CAUTION

$5.49

$

Usually ships in 2-4 days

0

2

Echo 89016054130

LABEL - CAUTION

$1.49

$

In Stock, only 1 left!

0

3

Echo 30120707530

HOOK

$5.99

$

Usually ships in 2-4 days

0

4

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

5

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0

6

Echo 30120042230

MAIN PIPE CLAMP KIT

Note: Includes ITEM 7

$9.49

$

Usually ships in 2-4 days

0

7

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

8

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 14

0

9

Echo 17800351830

CONTROL HANDLE ASSY

Note: Includes items 10, 14 & 27

$45.99

$

Usually ships in 2-4 days

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 35121351830

GRIP, HANDLE

$11.99

$

Usually ships in 2-4 days

0

12

Echo 35120107131

HANDLE ASSY
(Superseded to P021041120)

Note: Includes items 10, 13, 14 - 17

$66.99

$

Usually ships in 2-4 days

0

13

Echo 35120507130

HANDLE - FRONT
(Superseded to 35120507131)

$

$

Not available

14

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

15

Echo 35123207130

BRACKET, HANDLE - UPPER

$22.99

$

Usually ships in 2-4 days

0

16

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

17

Echo 35122506930

BRACKET, HANDLE

$6.49

$

In Stock, only 2 left!

0

18

Echo 61027251830

CLAMP

$19.99

$

Usually ships in 2-4 days

0

19

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

20

Echo 61020655630

PIPE, MAIN

$195.99

$

Usually ships in 2-4 days

0

21

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

22

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

23

Echo 17800151030

CABLE, THROTTLE

$17.99

$

In Stock, Qty 6

0

24

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

25

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

26

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

27

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

28

Echo 61001106230

DRIVESHAFT - SOLID

$51.99

$

Usually ships in 2-4 days

0

29

Echo 30100047731

SHOULDER STRAP ASSY
(Superseded to 30100052131)

$21.99

$

In Stock, only 1 left!

0

30

Echo 30130524330

HOOK

$10.99

$

Usually ships in 2-4 days

0
