SRM-3400 - Echo String Trimmer (Type 1) Clutch, Fuel System, Ignition, Starter Parts Diagram

String Trimmer (Type 1)

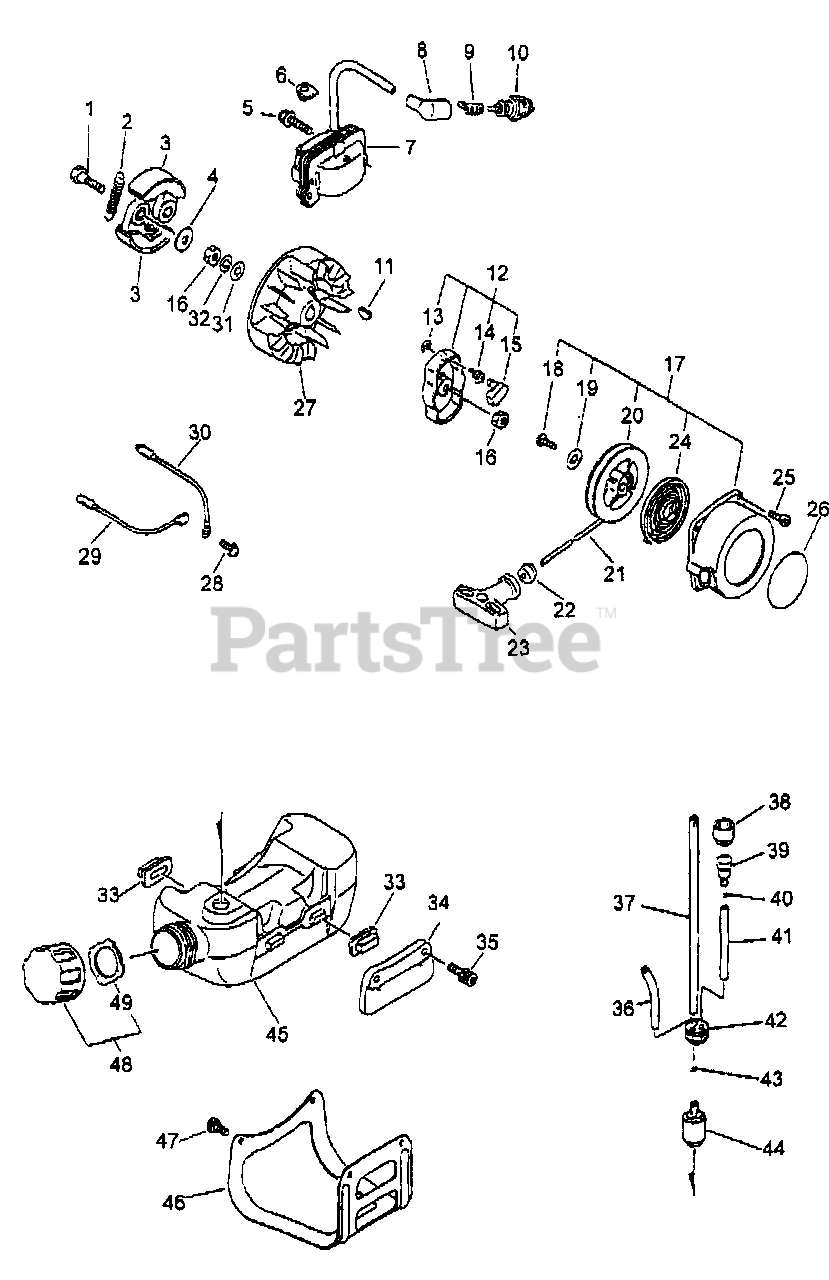

Clutch, Fuel System, Ignition, Starter Parts Diagram

  • Title

1

Echo 17504646430

BOLT, CLUTCH

$6.49

$

Usually ships in 2-4 days

0

2

Echo 17501827931

SPRING, CLUTCH
(Superseded to 17501827932)

$3.49

$

Usually ships in 2-4 days

0

3

Echo 17500946431

SHOE, CLUTCH
(Superseded to A553000000)

$24.99

$

Usually ships in 2-4 days

0

4

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 19

0

5

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

6

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

7

Echo 15262655730

COIL, IGNITION

$137.99

$

In Stock, only 1 left!

0

8

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 6

0

9

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

10

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

11

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 15

0

12

Echo 17720241030

STARTER PAWL ASSY
(Superseded to A052000370)

Note: Includes ITEMS 13-15

$13.99

$

In Stock, only 2 left!

0

13

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

14

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

15

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

16

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

17

Echo 17720055630

STARTER ASSY
(Superseded to 17720055631)

Note: Includes Items 18-24

$97.99

$

Usually ships in 2-4 days

0

18

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

19

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

20

Echo 17721543130

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

21

Echo 17722601110

ROPE, STARTER - 4X880

Note: RePower BULK OPTION: 99944450000

$5.99

$

In Stock, only 1 left!

0

22

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

23

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

24

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 12

0

25

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

26

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

27

Echo 15280155430

FLYWHEEL

$132.99

$

Usually ships in 2-4 days

0

28

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

29

Echo 16201055630

LEAD - IGNITION

$6.49

$

Usually ships in 2-4 days

0

30

Echo 16201452930

LEAD - GROUND

$4.99

$

In Stock, only 1 left!

0

31

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

32

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

33

Echo 13192055430

CUSHION, FUEL TANK

$3.49

$

In Stock, only 3 left!

0

34

Echo 13191055430

BRACKET, FUEL TANK

$16.99

$

Usually ships in 2-4 days

0

35

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

36

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

37

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

38

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 10

0

39

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

Note: Use cap/vent kit 90010

$7.49

$

In Stock, Qty 10

0

40

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

41

Echo V471001220

PIPE - 3X5X50 -- BLACK

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 18

0

42

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

43

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

44

Echo 13120550430

FILTER, FUEL
(Superseded to 13120507320)

Note: Use Air/Fuel Filter Kit 90030

$5.49

$

In Stock, Qty 20+

0

45

Echo 13101055430

TANK, FUEL
(Superseded to 13101055431)

$13.99

$

In Stock, only 1 left!

0

46

Echo 30511055830

GUARD, FUEL TANK

$42.99

$

Usually ships in 2-4 days

0

47

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

48

Echo 13100455730

CAP ASSY
(Superseded to 13100455830)

Note: Includes Item 49, Use Cap/Vent Kit 90010

$4.49

$

In Stock, only 1 left!

0

49

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 19

0
