SRM-3400 - Echo String Trimmer (Type 1) Carburetor Parts Diagram

String Trimmer (Type 1)

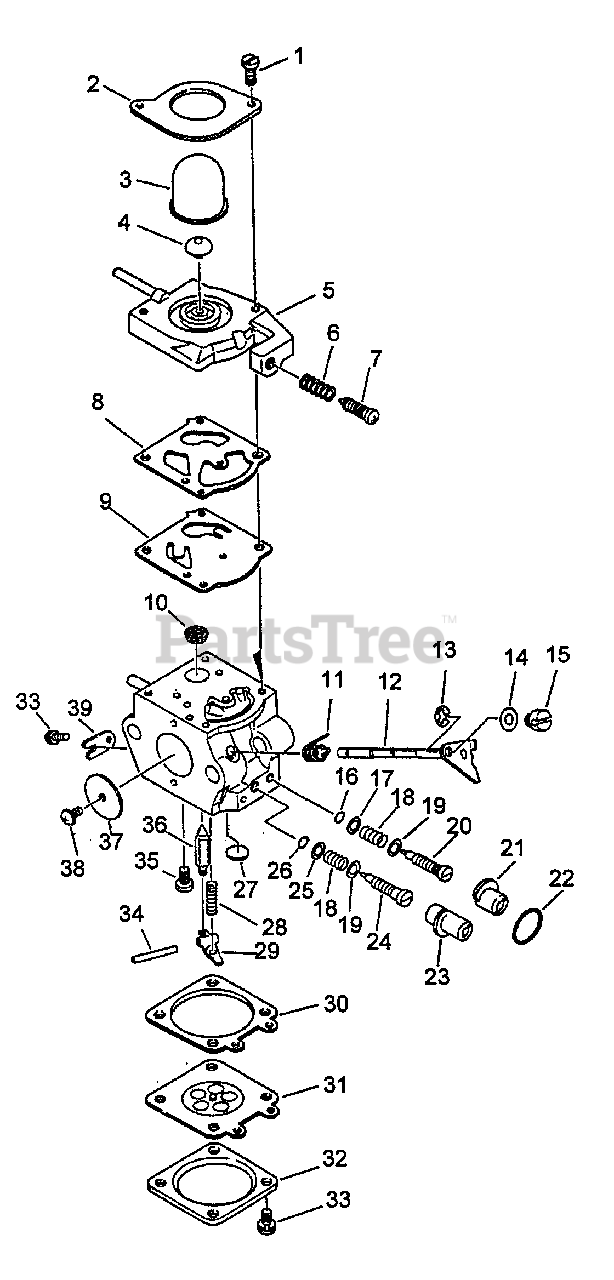

Carburetor Parts Diagram

  • Title

Echo 12300055730

CARBURETOR WT-333
(Superseded to 12300055830)

$119.99

$

In Stock, only 1 left!

0

1

Echo 12311009560

SCREW

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12314209560

RETAINER, PURGE BULB

$6.99

$

Usually ships in 2-4 days

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$4.99

$

In Stock, Qty 20+

0

4

Echo 12317135630

VALVE, CHECK

$3.99

$

In Stock, only 2 left!

0

5

Echo 12312451430

COVER, PUMP
(Superseded to 12312451431)

$13.99

$

Usually ships in 2-4 days

0

6

------------------

SPRING, IDLE ADJUST

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

7

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

8

------------------

GASKET, PURGE

Note: Included in REPAIR KIT WT-333 P\N 12310055730 & DIAPHRAGM/GASKET KIT WT-333 P\N 12310155730

$

$

Not available

9

------------------

DIAPHRAGM, PURGE

Note: Included in REPAIR KIT WT-333 P\N 12310055730 & DIAPHRAGM/GASKET KIT WT-333 P\N 12310155730

$

$

Not available

10

------------------

STRAINER

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

11

Echo 12311347530

SPRING, THROTTLE RETURN

$4.99

$

Usually ships in 2-4 days

0

12

Echo 12311755630

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

13

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

14

Echo 12314926030

WASHER

$0.99

$

In Stock, only 1 left!

0

15

Echo 12317226030

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12318339630

O-RING

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12314939130

WASHER
(Superseded to Discontinued)

$

$

Not available

18

------------------

SPRING

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

19

Echo 12314939630

WASHER
(Superseded to Discontinued)

$

$

Not available

20

Echo 12312039630

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

21

Echo 12315139430

CAP, LIMITER

Note: TYPE 1E (CALIFORNIA EMISSIONS) ONLY

$0.99

$

Usually ships in 2-4 days

0

22

Echo 12318355730

O-RING

Note: TYPE 1E (CALIFORNIA EMISSIONS) ONLY

$0.99

$

Usually ships in 2-4 days

0

23

Echo 12315139530

CAP, LIMITER

Note: TYPE 1E (CALIFORNIA EMISSIONS) ONLY

$0.99

$

Usually ships in 2-4 days

0

24

Echo 12311855730

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

25

Echo 12317454230

WASHER
(Superseded to Discontinued)

$

$

Not available

26

Echo 12318354230

O-RING
(Superseded to Discontinued)

$

$

Not available

27

------------------

PLUG, WELCH

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

28

------------------

SPRING, METERING LEVER

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

29

------------------

LEVER, METERING

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

30

------------------

GASKET, METERING

Note: Included in REPAIR KIT WT-333 P\N 12310055730 & DIAPHRAGM/GASKET KIT WT-333 P\N 12310155730

$

$

Not available

31

------------------

DIAPHRAGM, METERING

Note: Included in REPAIR KIT WT-333 P\N 12310055730 & DIAPHRAGM/GASKET KIT WT-333 P\N 12310155730

$

$

Not available

32

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

33

------------------

SCREW

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

34

------------------

PIN, METERING LEVER

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

35

------------------

SCREW, METERING LEVER PIN

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

36

------------------

VALVE, INLET NEEDLE

Note: Included in REPAIR KIT WT-333 P\N 12310055730

$

$

Not available

37

Echo 12311623230

VALVE, THROTTLE

$1.49

$

Usually ships in 2-4 days

0

38

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

39

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

Echo 12310055730

REPAIR KIT

$15.99

$

Usually ships in 2-4 days

0

Echo 12310155730

DIAPHRAGM/GASKET KIT

$9.99

$

Usually ships in 2-4 days

0
