SRM-340 - Echo String Trimmer (SN: 04001001 - 04999999) Intake, Exhaust Parts Diagram

String Trimmer

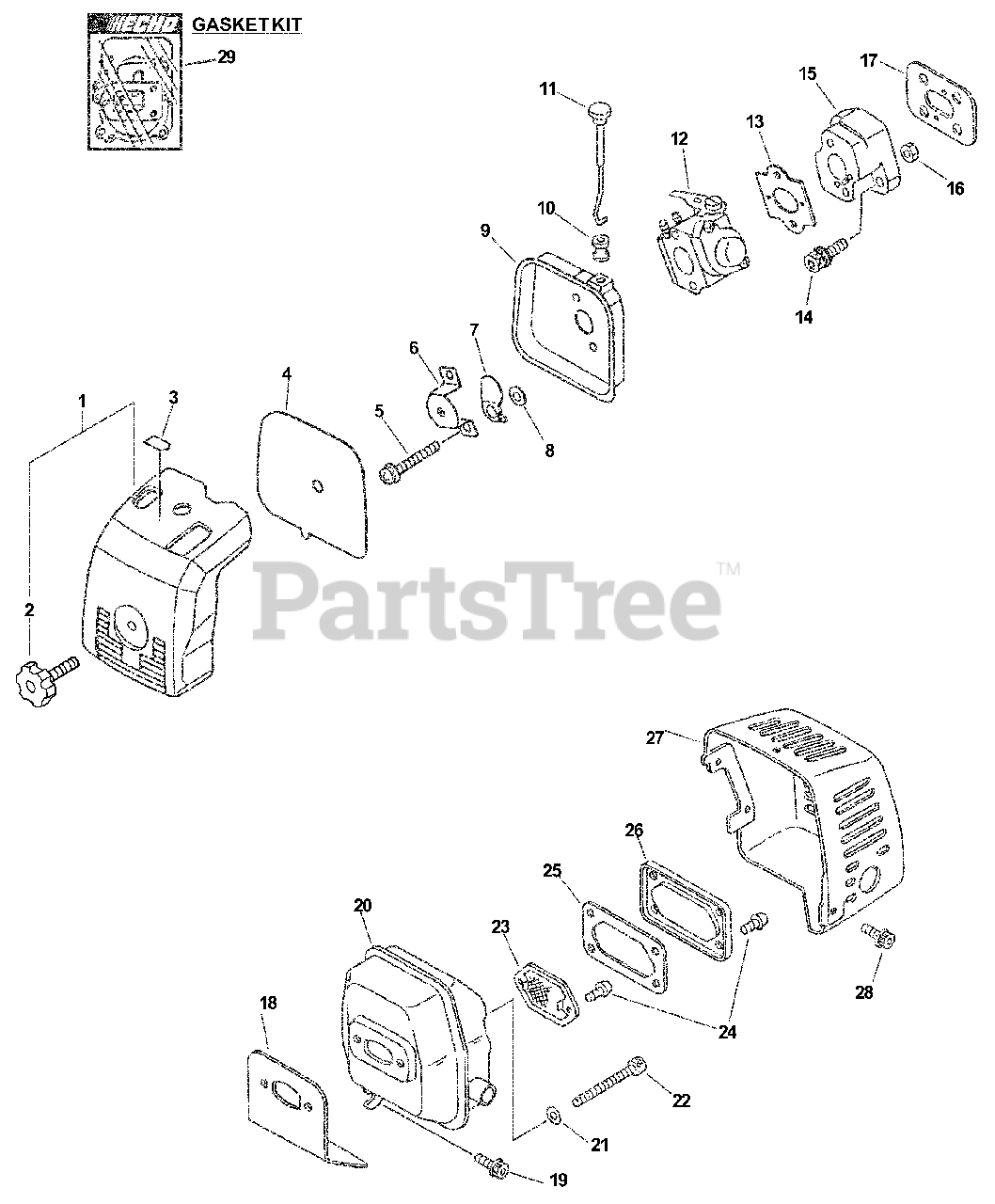

Intake, Exhaust Parts Diagram

  • Title
1

Echo 13030252130

AIR FILTER COVER ASSY
(Superseded to 13030252131)

Note: Includes ITEM 2

$15.99

$

In Stock, Qty 5

0

2

Echo 13040652131

THUMBSCREW

$5.49

$

In Stock, Qty 20+

0

3

Echo 89012152130

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

4

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

5

Echo 90016205057

SCREW - 5X57

$1.99

$

Usually ships in 2-4 days

0

6

Echo 12901152131

PLATE, PREVENT

$5.49

$

In Stock, only 3 left!

0

7

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

8

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

10

$1.99

$

In Stock, Qty 8

0

11

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

12

Echo 12300055832

CARBURETOR WT-418B

$119.99

$

In Stock, only 1 left!

0

13

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, only 2 left!

0

14

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

15

Echo 13001755630

INSULATOR, INTAKE

$14.99

$

In Stock, only 1 left!

0

16

$0.99

$

In Stock, Qty 20+

0

17

Echo 13001055730

GASKET, INTAKE

$2.49

$

Usually ships in 2-4 days

0

18

Echo 14551055730

GASKET, EXHAUST

$9.99

$

Usually ships in 2-4 days

0

19

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

20

Echo 14580655730

MUFFLER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

23

Echo 14590555730

SCREEN, SPARK ARRESTOR

$5.49

$

Usually ships in 2-4 days

0

24

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

25

Echo 14586655730

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

26

Echo 14586155730

GUIDE, EXHAUST
(Superseded to 14586155731)

$5.99

$

Usually ships in 2-4 days

0

27

Echo 14562155730

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

28

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

29

Echo 88900055730

GASKET KIT

$

$

Not available
