Echo SRM-340 - Echo String Trimmer (SN: 04001001 - 04999999) Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Lookup with Diagrams

1

Echo 35120107131

HANDLE ASSY

(Superseded to P021041120) 

Note: INCLUDES ITEMS 2-7

$66.99

$

Usually ships in 2-4 days

2

Echo 35120507130

HANDLE - FRONT

(Superseded to 35120507131) 

$

Not available 

3

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

4

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

5

Echo 35123207130

BRACKET, HANDLE - UPPER

$22.99

$

Usually ships in 2-4 days

6

Echo 35122506930

BRACKET, HANDLE

$6.49

$

In Stock, only 2 left!

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

8

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

9

Echo 89016054130

LABEL - CAUTION

$1.49

$

In Stock, only 1 left!

9

Echo 89031749030

LABEL - CAUTION

(Superseded to Discontinued) 

Note: CANADA MODELS: 04001001-04999999

$

Not available 

10

Echo X505001930

LABEL - HANDLE LOCATION

$1.49

$

In Stock, Qty 20+

11

Echo 30130524330

HOOK

$10.99

$

Usually ships in 2-4 days

12

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

13

Echo 30120707530

HOOK

$5.99

$

Usually ships in 2-4 days

14

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

15

Echo 30120042230

MAIN PIPE CLAMP KIT

Note: Includes ITEM 16

$9.49

$

Usually ships in 2-4 days

16

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

17

Echo 17800351830

THROTTLE BRACKET SET

Note: INCLUDES ITEMS 18-20

$45.99

$

Usually ships in 2-4 days

18

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

19

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

20

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

21

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 14

22

Echo 17801352630

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 10

23

Echo 17809052632

LEVER, TRIGGER LOCKOUT

$2.49

$

In Stock, Qty 20+

24

Echo 17801252730

LOCKOUT, THROTTLE

$4.99

$

In Stock, Qty 16

25

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

26

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

27

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

28

Echo 17800156730

CABLE, THROTTLE

$10.99

$

In Stock, only 2 left!

29

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

30

Echo 35121351830

GRIP, HANDLE

$11.99

$

Usually ships in 2-4 days

31

Echo 61027251830

CLAMP

$19.99

$

Usually ships in 2-4 days

32

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

33

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

34

Echo 61020655630

PIPE, MAIN

$195.99

$

Usually ships in 2-4 days

35

Echo 61001106230

DRIVESHAFT - SOLID

$51.99

$

Usually ships in 2-4 days

36

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

37

Echo 30100052131

SHOULDER STRAP ASSY

(Superseded to C062000070) 

$21.99

$

In Stock, only 1 left!

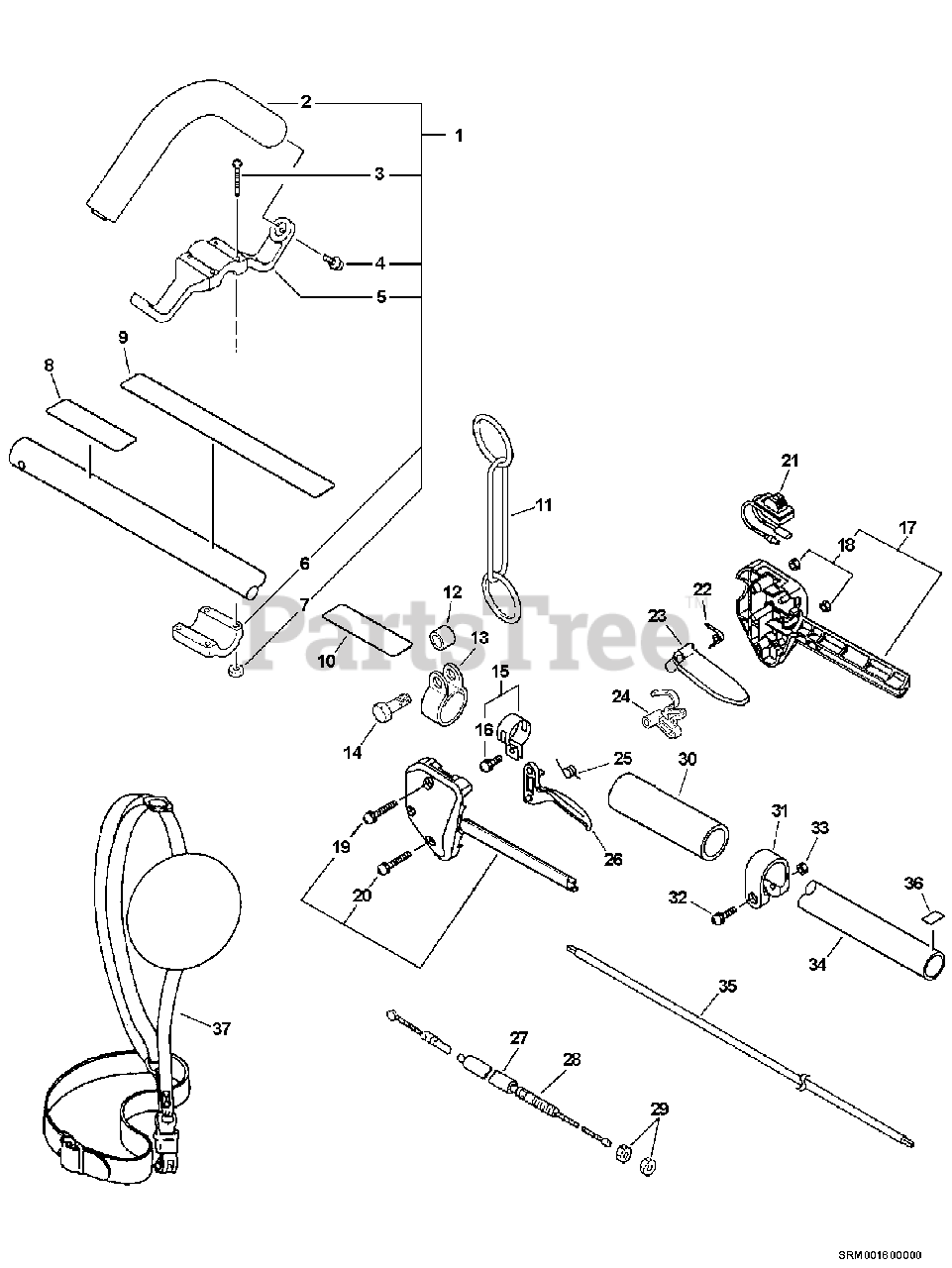

SRM-340 - Echo String Trimmer (SN: 04001001 - 04999999) Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

Handle, Ignition Switch, Throttle Cable, Driveshaft Parts Diagram

Echo 35120107131

Echo 35120507130

Echo 90024205035

Echo 90024205014

Echo 35123207130

Echo 35122506930

Echo 90050000005

Echo 89022809560

Echo 89016054130

Echo 89031749030

Echo X505001930

Echo 30130524330

Echo 69901203330

Echo 30120707530

Echo 90010005018

Echo 30120042230

Echo 90024205014

Echo 17800351830

Echo 90050000005

Echo 90024205035

Echo 90024205025

Echo A440000280

Echo 17801352630

Echo 17809052632

Echo 17801252730

Echo 17804342230

Echo 17801052130

Echo 17812751030

Echo 17800156730

Echo 90050200006

Echo 35121351830

Echo 61027251830

Echo 90024205028

Echo 90050000005

Echo 61020655630

Echo 61001106230

Echo 89015204930

Echo 30100052131
