SRM-340 - Echo String Trimmer (SN: 04001001 - 04999999) Carburetor -- WT-418B Parts Diagram

String Trimmer

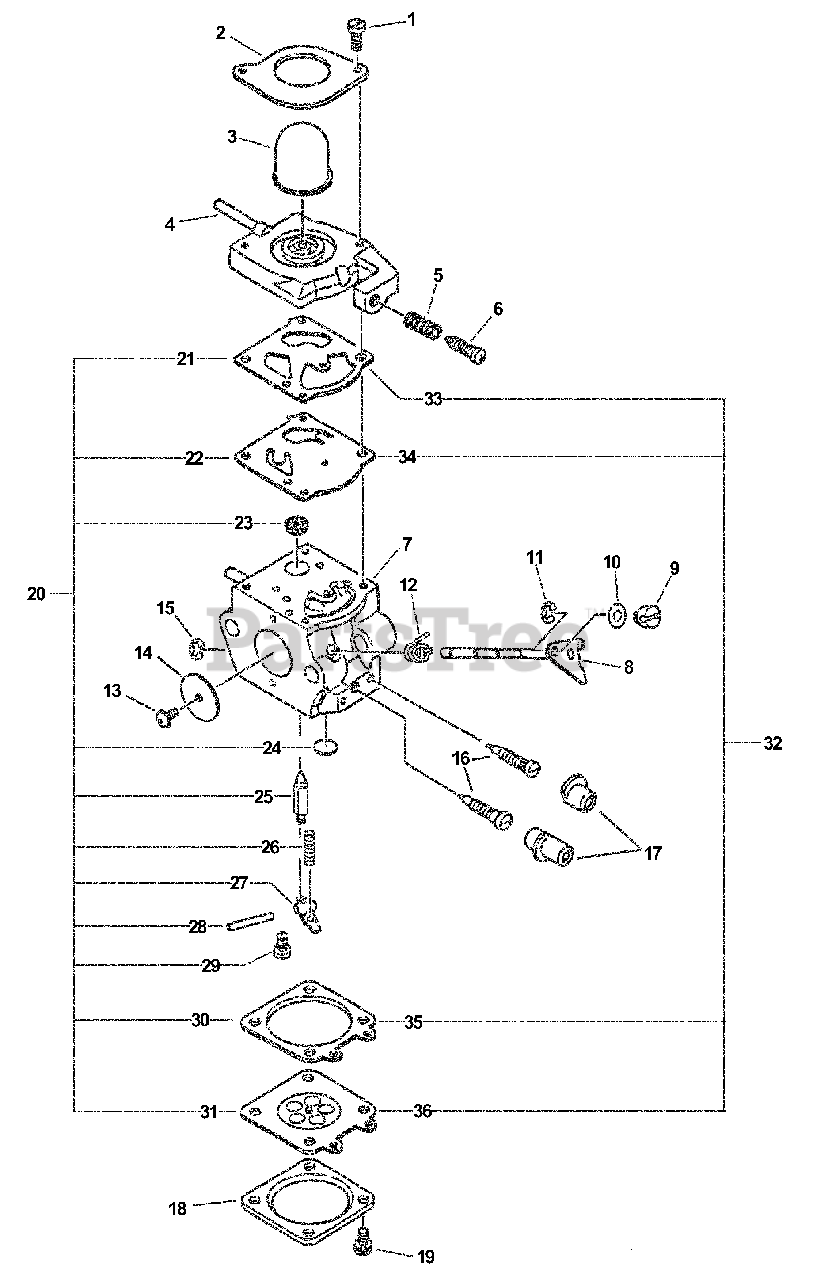

Carburetor -- WT-418B Parts Diagram

  • Title

Echo 12300055832

CARBURETOR WT-418B

$119.99

$

In Stock, only 1 left!

0

1

Echo 12311043130

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

2

Echo 12314209560

RETAINER, PURGE BULB

$6.99

$

Usually ships in 2-4 days

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$4.99

$

In Stock, Qty 20+

0

4

Echo 12312443230

BASE, PURGE

$8.49

$

In Stock, only 1 left!

0

5

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 15

0

6

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 10

0

7

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

8

Echo 12311755830

SHAFT, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

9

$1.99

$

Usually ships in 2-4 days

0

10

$0.99

$

In Stock, only 1 left!

0

11

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

12

Echo 12311352130

SPRING, THROTTLE RETURN

$1.99

$

Usually ships in 2-4 days

0

13

$1.49

$

In Stock, Qty 13

0

14

Echo 12311623230

VALVE, THROTTLE

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

16

Echo 12312003661

NEEDLE - MIXTURE

$3.99

$

Usually ships in 2-4 days

0

17

Echo 12315139530

CAP, LIMITER

$0.99

$

Usually ships in 2-4 days

0

18

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

19

$1.99

$

Usually ships in 2-4 days

0

20

Echo 12310055730

REPAIR KIT

Note: INCLUDES ITEMS 21-31

$15.99

$

Usually ships in 2-4 days

0

21

------------------

GASKET, PUMP

$

$

Not available

22

------------------

DIAPHRAGM, PUMP

$

$

Not available

23

------------------

STRAINER

$

$

Not available

24

------------------

PLUG, WELCH

$

$

Not available

25

------------------

VALVE, INLET NEEDLE

$

$

Not available

26

------------------

SPRING, METERING LEVER

$

$

Not available

27

------------------

LEVER, METERING

$

$

Not available

28

------------------

PIN, METERING LEVER

$

$

Not available

29

------------------

SCREW, METERING LEVER PIN

$

$

Not available

30

------------------

GASKET, METERING

$

$

Not available

31

------------------

DIAPHRAGM, METERING

$

$

Not available

32

Echo 12310155730

DIAPHRAGM/GASKET KIT

Note: INCLUDES ITEMS 33-36

$9.99

$

Usually ships in 2-4 days

0

33

------------------

GASKET, PUMP

$

$

Not available

34

------------------

DIAPHRAGM, PUMP

$

$

Not available

35

------------------

GASKET, METERING

$

$

Not available

36

------------------

DIAPHRAGM, METERING

$

$

Not available
