SRM-340 - Echo String Trimmer (SN: 03001001 - 03999999) Ignition, Starter, Clutch, Fuel System Parts Diagram

String Trimmer

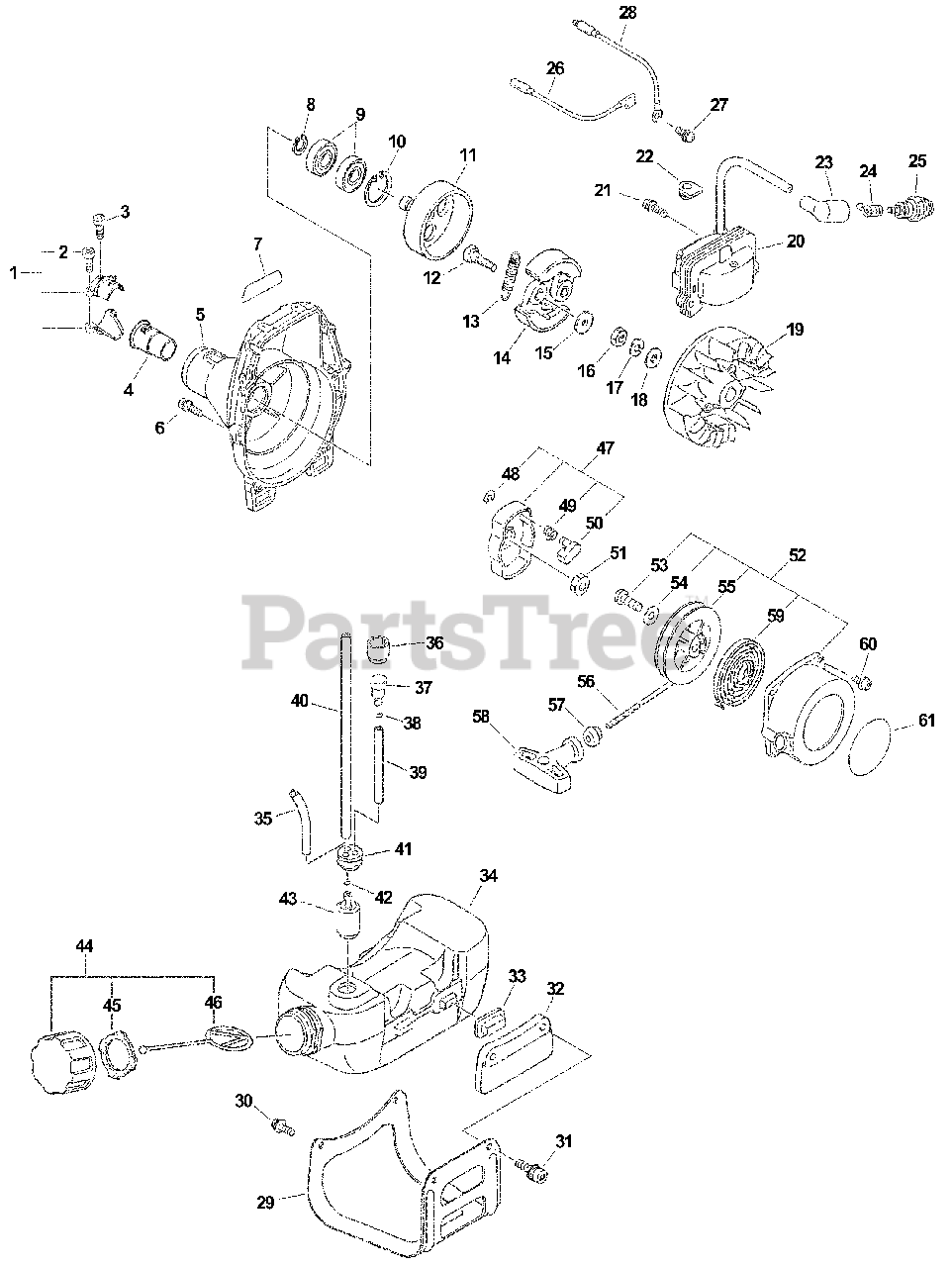

Ignition, Starter, Clutch, Fuel System Parts Diagram

  • Title

1

Echo 61090355630

HOLDER KIT
(Superseded to P021012800)

Note: Includes ITEM 2

$17.99

$

Usually ships in 2-4 days

0

2

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

3

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

4

Echo 61091051830

CUSHION

$10.99

$

In Stock, only 1 left!

0

5

Echo 10151155730

CASE, FAN

$94.99

$

Usually ships in 2-4 days

0

6

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

7

Echo X503003310

LABEL - MODEL SRM-340
(Superseded to Discontinued)

$

$

Not available

8

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

9

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

10

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

11

Echo 17500549930

DRUM, CLUTCH

$68.99

$

Usually ships in 2-4 days

0

12

Echo 17504646430

BOLT, CLUTCH

$6.49

$

Usually ships in 2-4 days

0

13

Echo 17501849932

SPRING, CLUTCH
(Superseded to 17501849933)

$3.49

$

Usually ships in 2-4 days

0

14

Echo A553000000

SHOE, CLUTCH

$24.99

$

Usually ships in 2-4 days

0

15

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 19

0

16

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

17

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

18

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

19

Echo 15280155430

FLYWHEEL

$132.99

$

Usually ships in 2-4 days

0

20

Echo 15262655730

COIL, IGNITION

$137.99

$

In Stock, only 1 left!

0

21

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

22

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

23

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

25

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

25

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: CANADA MODELS: 04001001-04999999

$3.49

$

In Stock, Qty 20+

0

26

Echo 16201055630

LEAD - IGNITION

$6.49

$

Usually ships in 2-4 days

0

27

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

28

Echo 16201452930

LEAD - GROUND

$4.99

$

In Stock, only 1 left!

0

29

Echo 30511055830

GUARD, FUEL TANK

$42.99

$

Usually ships in 2-4 days

0

30

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

31

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

32

Echo 13191055430

BRACKET, FUEL TANK

$16.99

$

Usually ships in 2-4 days

0

33

Echo 13192055430

CUSHION, FUEL TANK

$3.49

$

In Stock, only 3 left!

0

34

Echo 13101055431

TANK, FUEL

$13.99

$

In Stock, only 1 left!

0

35

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

36

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 10

0

37

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

38

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

39

Echo V471001220

PIPE - 3X5X50 -- BLACK

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 18

0

40

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

41

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

42

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

43

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

44

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEM 45-46

$6.49

$

In Stock, only 2 left!

0

45

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

46

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

47

Echo 17720241030

STARTER PAWL ASSY
(Superseded to A052000370)

Note: INCLUDES ITEMS 48-50

$13.99

$

In Stock, only 2 left!

0

48

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

49

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

50

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 8

0

51

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

52

Echo 17720055630

STARTER ASSY
(Superseded to 17720055631)

Note: INCLUDES ITEMS 53-59

$97.99

$

Usually ships in 2-4 days

0

53

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

54

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

55

Echo 17721543130

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

56

Echo 17722601110

ROPE, STARTER - 4X880

Note: RePower BULK OPTION: 99944450000

$5.99

$

In Stock, only 1 left!

0

57

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

58

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

59

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 12

0

60

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

61

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0
