SRM-311 U - Echo Brush Cutter (SN: 09001001 - 09999999) Engine, Short Block -- SB1073 Parts Diagram

Brush Cutter

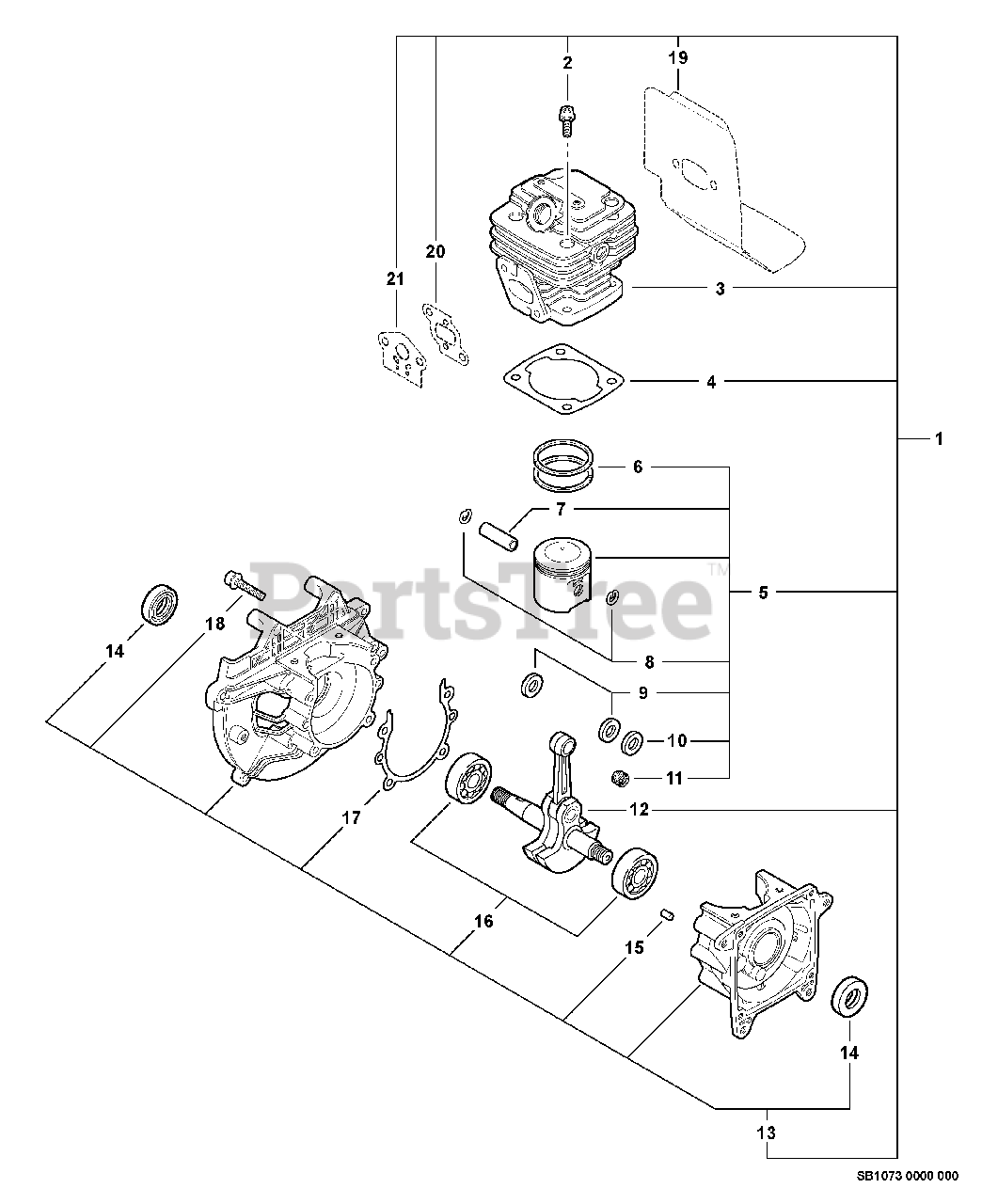

Engine, Short Block -- SB1073 Parts Diagram

  • Title

1

Echo SB1073

SHORT BLOCK -- SB1073

Note: INCLUDES ITEMS 2-21

$307.99

$

Usually ships in 2-4 days

0

2

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

3

Echo A130000560

CYLINDER

$157.99

$

In Stock, Qty 8

0

4

Echo V100000141

GASKET, CYLINDER

$6.99

$

In Stock, only 1 left!

0

5

Echo P021006802

PISTON KIT

Note: Includes ITEMS 6-11

$95.99

$

In Stock, Qty 6

0

6

Echo A101000080

RING, PISTON

$6.49

$

In Stock, Qty 6

0

7

Echo 10001327430

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

8

Echo 10001503931

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

9

Echo 10001453630

SPACER, PISTON

$5.99

$

Usually ships in 2-4 days

0

10

Echo V306000121

WASHER
(Superseded to Discontinued)

$

$

Not available

11

Echo 10001216131

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

12

Echo A011000301

CRANKSHAFT ASSY

$211.99

$

Usually ships in 2-4 days

0

13

Echo P021006980

CRANKCASE KIT

Note: Includes ITEMS 14-18

$287.99

$

Usually ships in 2-4 days

0

14

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

16

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

17

Echo 10024255430

GASKET, CRANKCASE
(Superseded to V102000040)

$3.99

$

Usually ships in 2-4 days

0

18

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

19

------------------

SHIELD, EXHAUST

$

$

Not available

20

------------------

GASKET, INTAKE

$

$

Not available

21

------------------

GASKET, INTAKE

$

$

Not available
