SRM-311 - Echo String Trimmer (SN: 02001001 - 02999999) Fuel System Parts Diagram

String Trimmer

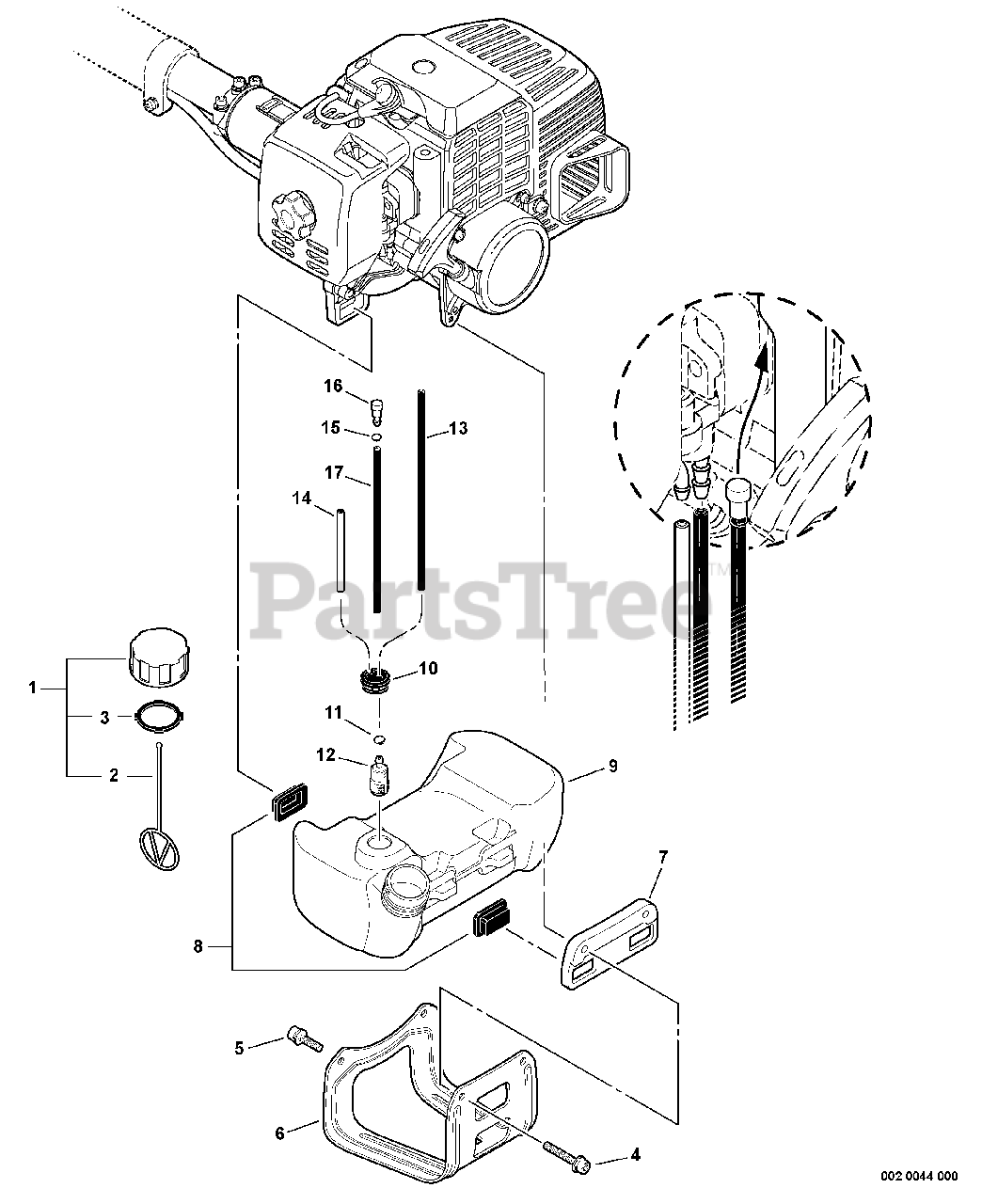

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEMS 2-3

$6.49

$

In Stock, Qty 6

0

2

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

3

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

4

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

5

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

6

Echo 30511055830

GUARD, FUEL TANK

$42.99

$

Usually ships in 2-4 days

0

7

Echo 13191055430

BRACKET, FUEL TANK

$16.99

$

Usually ships in 2-4 days

0

8

Echo 13192055430

CUSHION, FUEL TANK

$3.49

$

In Stock, only 3 left!

0

9

Echo A350000171

TANK, FUEL
(Superseded to A350000670)

$21.99

$

In Stock, only 1 left!

0

10

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

11

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

12

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

13

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

14

Echo 13271750430

PIPE - 3X6X70 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 20+

0

15

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

16

Echo A356000031

VENT, FUEL TANK

$7.99

$

Usually ships in 2-4 days

0

17

Echo V471000600

PIPE - 3X5X120 -- BLACK
(Superseded to V471000601)

Note: RePower BULK OPTION: 90014

$0.99

$

In Stock, only 3 left!

0
