SRM-3100 S - Echo String Trimmer (Type 1E) Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

String Trimmer (Type 1E)

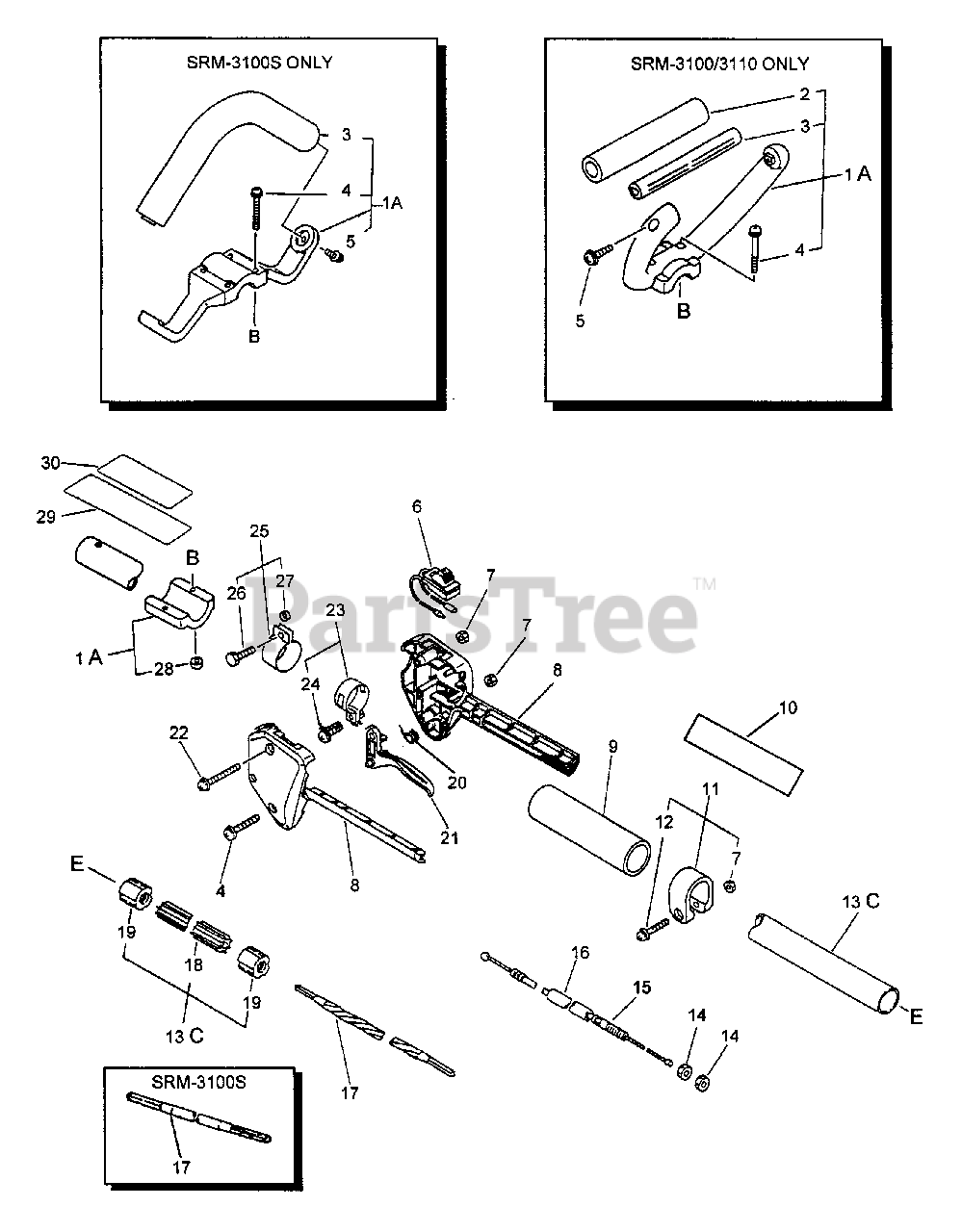

Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 35120152130

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 2-5 & 28

$65.99

$

In Stock, only 1 left!

0

1

Echo 35120107132

LOOP HANDLE ASSY
(Superseded to 35120107133)

Note: INCLUDES ITEMS 3-5 & 28 SRM-3100S

$44.99

$

In Stock, only 1 left!

0

2

Echo 35121351730

GRIP, HANDLE

$8.49

$

In Stock, Qty 6

0

3

Echo 35121051730

HANDLE

Note: SRM-3100

$4.49

$

Usually ships in 2-4 days

0

3

Echo 35120507130

HANDLE - FRONT
(Superseded to 35120507131)

Note: SRM-3100S

$

$

Not available

4

Echo 90024205035

SCREW - 5X35

Note: SRM-3100

$0.99

$

In Stock, Qty 20+

0

4

Echo 90016205035

SCREW - 5X35

Note: SRM-3100S

$1.49

$

In Stock, Qty 6

0

5

Echo 90024605030

SCREW - 5X30

Note: SRM-3100

$0.99

$

Usually ships in 2-4 days

0

5

Echo 90024205014

SCREW - 5X14

Note: SRM-3100S

$0.99

$

In Stock, Qty 20+

0

6

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 13

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 4, 7 & 22

$4.99

$

In Stock, only 1 left!

0

9

Echo 35121352130

GRIP, HANDLE

$9.49

$

In Stock, only 2 left!

0

10

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

11

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 7 & 12

$9.99

$

In Stock, only 1 left!

0

12

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

13

Echo 61020655730

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 18 & 19

$

$

Not available

13

Echo 61020651830

MAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

14

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0

15

Echo 17800151030

CABLE, THROTTLE

$17.99

$

In Stock, Qty 6

0

16

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

17

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, only 2 left!

0

17

Echo 61001127431

DRIVESHAFT - SOLID

Note: SRM-3100S

$46.99

$

Usually ships in 2-4 days

0

18

Echo C507000260

LINER - FLEXIBLE

$25.99

$

Usually ships in 2-4 days

0

19

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

20

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

21

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

22

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

23

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 24

$9.49

$

In Stock, only 1 left!

0

24

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

25

Echo 30120708930

CLAMP

Note: INCLUDES ITEMS 26 & 27

$4.99

$

In Stock, only 2 left!

0

26

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

27

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0

28

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

29

Echo 89016054130

LABEL - CAUTION

$1.49

$

In Stock, only 1 left!

0

30

Echo 89017740630

LABEL - CAUTION

$5.49

$

Usually ships in 2-4 days

0
