SRM-3100 - Echo String Trimmer (Type 2E) Intake, Exhaust, Fuel System Parts Diagram

String Trimmer (Type 2E)

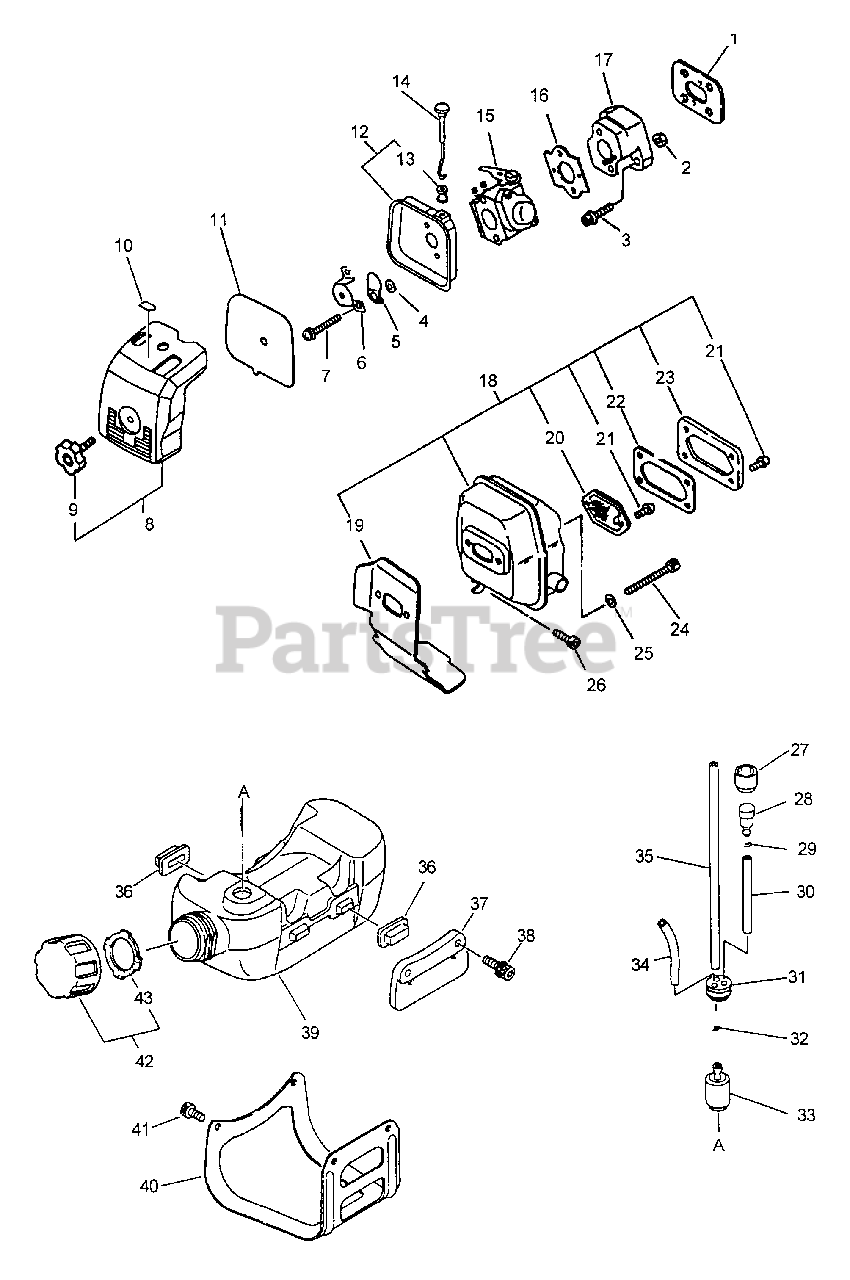

Intake, Exhaust, Fuel System Parts Diagram

  • Title

1

Echo 13001055730

GASKET, INTAKE

$2.49

$

Usually ships in 2-4 days

0

2

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

6

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$5.49

$

In Stock, only 3 left!

0

7

Echo 90016205057

SCREW - 5X57

$1.99

$

Usually ships in 2-4 days

0

8

Echo 13030252130

AIR FILTER COVER ASSY
(Superseded to 13030252131)

Note: Includes ITEM 9

$15.99

$

In Stock, Qty 5

0

9

Echo 13040652131

THUMBSCREW

$5.49

$

In Stock, Qty 20+

0

10

Echo 89012152130

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

12

Echo 13030151730

CASE, AIR FILTER

Note: Includes ITEM 13

$21.99

$

Usually ships in 2-4 days

0

13

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 8

0

14

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

15

Echo 12300055831

CARBURETOR WT-418A
(Superseded to 12300055832)

$119.99

$

In Stock, only 1 left!

0

16

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, only 2 left!

0

17

Echo 13001755630

INSULATOR, INTAKE

$14.99

$

In Stock, only 1 left!

0

18

Echo 14580055430

MUFFLER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEM 19-23

$

$

Not available

19

Echo 14551055430

GASKET, EXHAUST

$13.99

$

Usually ships in 2-4 days

0

20

Echo 14590555730

SCREEN, SPARK ARRESTOR

$5.49

$

Usually ships in 2-4 days

0

21

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

22

Echo 14586655730

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

23

Echo 14586155731

GUIDE, EXHAUST

$5.99

$

Usually ships in 2-4 days

0

24

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

27

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

28

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

29

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

30

Echo V471001220

PIPE - 3X5X50 -- BLACK

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 18

0

31

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

32

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

33

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

34

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

35

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

36

Echo 13192055430

CUSHION, FUEL TANK

$3.49

$

In Stock, only 3 left!

0

37

Echo 13191055430

BRACKET, FUEL TANK

$16.99

$

Usually ships in 2-4 days

0

38

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

39

Echo 13101055430

TANK, FUEL
(Superseded to 13101055431)

$13.99

$

In Stock, only 1 left!

0

40

Echo 30511055830

GUARD, FUEL TANK

$42.99

$

Usually ships in 2-4 days

0

41

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

42

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 43

$4.49

$

In Stock, only 1 left!

0

43

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

Echo 90030

RePower FILTER KIT
(Superseded to 90153)

$18.99

$

In Stock, Qty 12

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available

Echo 88900055430

GASKET KIT

$39.99

$

Usually ships in 2-4 days

0
