SRM-310 U - Echo Brush Cutter (SN: 04001001 - 04999999) Clutch, Engine Cover, Fan Case Parts Diagram

Brush Cutter

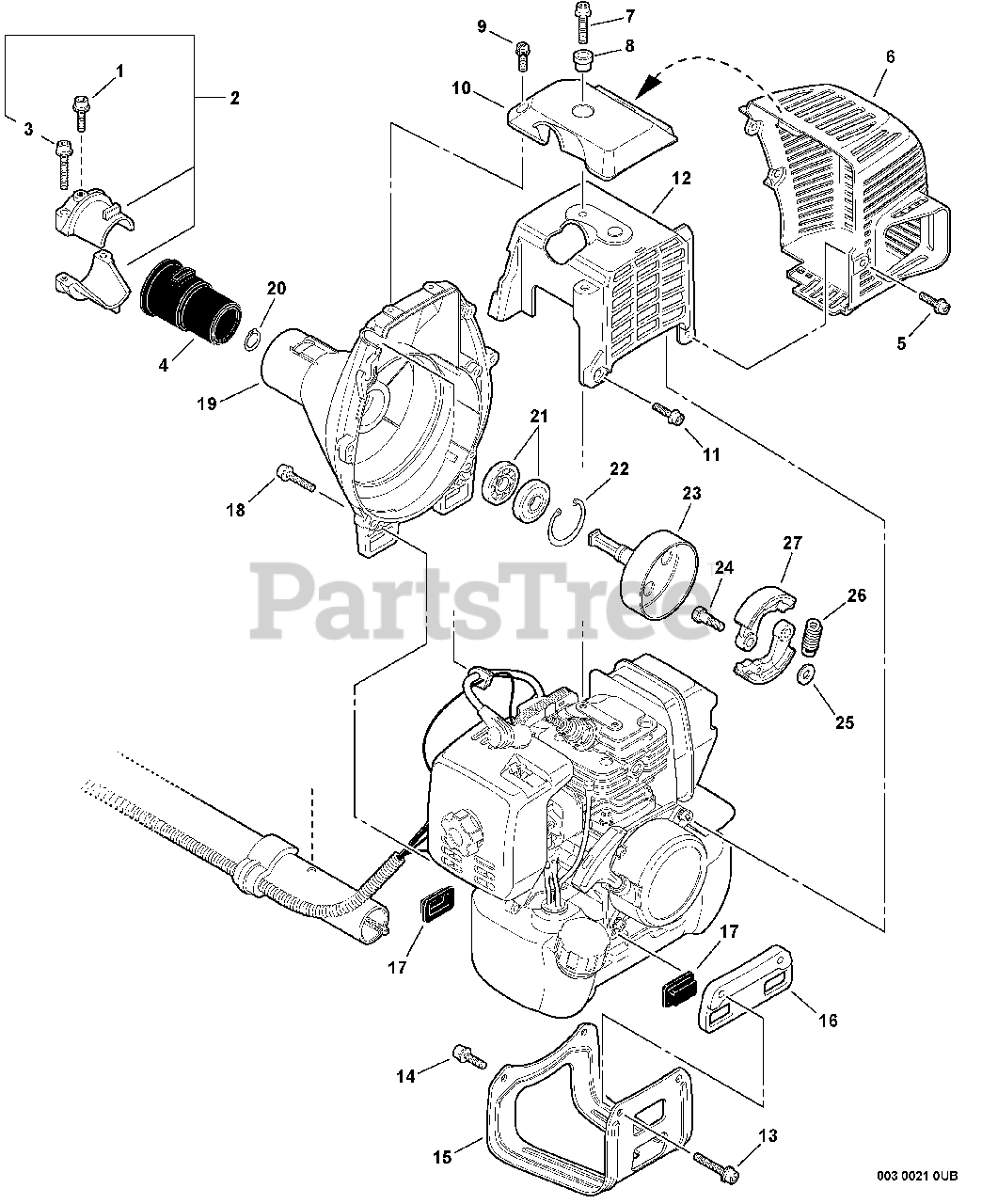

Clutch, Engine Cover, Fan Case Parts Diagram

  • Title
1

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

2

Echo 61090355430

HOLDER KIT

Note: Includes ITEM 3

$18.99

$

Usually ships in 2-4 days

0

3

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

$7.99

$

Usually ships in 2-4 days

0

5

Echo 90010605014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

6

Echo A320000100

COVER, EXHAUST

$11.99

$

Usually ships in 2-4 days

0

7

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

8

Echo V353000020

COLLAR - 5

$1.49

$

In Stock, Qty 20+

0

9

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

10

Echo A162000030

GUARD - TOP
(Superseded to Discontinued)

$

$

Not available

11

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

12

Echo A160000370

COVER, ENGINE - GRAY

$8.99

$

Usually ships in 2-4 days

0

13

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

14

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

15

Echo 30511055830

GUARD, FUEL TANK

$42.99

$

Usually ships in 2-4 days

0

16

Echo 13191055430

BRACKET, FUEL TANK

$16.99

$

Usually ships in 2-4 days

0

17

Echo 13192055430

CUSHION, FUEL TANK

$3.49

$

In Stock, only 3 left!

0

18

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

19

Echo A172000210

CASE, FAN

$59.99

$

Usually ships in 2-4 days

0

20

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

22

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

23

Echo 17500555730

DRUM, CLUTCH

$61.99

$

Usually ships in 2-4 days

0

24

Echo 17504646430

BOLT, CLUTCH

$6.49

$

Usually ships in 2-4 days

0

25

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 19

0

26

Echo 17501827932

SPRING, CLUTCH
(Superseded to 17501849932)

$3.49

$

Usually ships in 2-4 days

0

27

Echo 17500946431

SHOE, CLUTCH
(Superseded to A553000000)

$24.99

$

Usually ships in 2-4 days

0
