SRM-3020 U - Echo Brush Cutter (SN: U33915001001 - U33915999999) Gear Case Parts Diagram

Brush Cutter

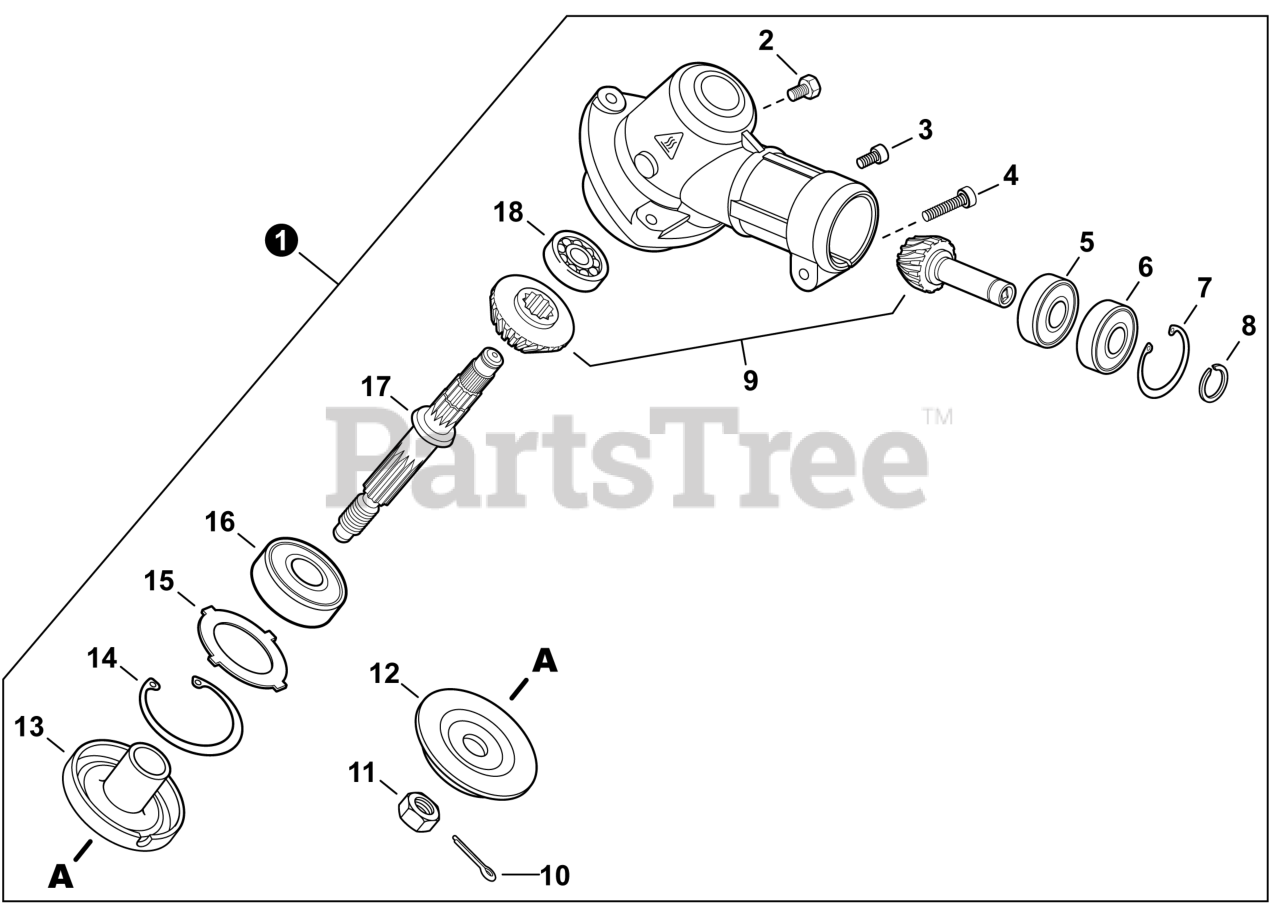

Gear Case Parts Diagram

  • Title

1

Echo P021052200

GEAR CASE ASSY
(Superseded to P021054040)

Note: Includes Items 2-18

$97.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

3

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

4

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo 9411000609

BEARING, BALL 609A

$10.99

$

Usually ships in 2-4 days

0

6

Echo 9411100609

BEARING, BALL 609ZA

$10.99

$

Usually ships in 2-4 days

0

7

Echo 90070200025

RING, SNAP Ø25

$1.99

$

In Stock, Qty 5

0

8

Echo 90070100009

RING, SNAP Ø9

$

$

Not available

9

Echo V000000250

GEAR SET

$69.99

$

In Stock, only 1 left!

0

10

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

11

Echo 90051100010

NUT 10

$1.49

$

In Stock, Qty 9

0

12

Echo C535000150

PLATE, ADAPTOR - LOWER

$9.49

$

In Stock, Qty 7

0

13

Echo C535000941

PLATE, ADAPTOR - UPPER
(Superseded to C535001240)

$19.99

$

In Stock, only 1 left!

0

14

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 13

0

15

Echo V340000180

WASHER

$1.49

$

In Stock, only 4 left!

0

16

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, only 2 left!

0

17

Echo C534001090

SHAFT, GEAR

$50.99

$

In Stock, only 2 left!

0

18

Echo 9411000629

BEARING, BALL 629A

$10.99

$

Usually ships in 2-4 days

0
