SRM-3020 U - Echo Brush Cutter (SN: U09915001001 - U09915999999) Fan Case Parts Diagram

Brush Cutter

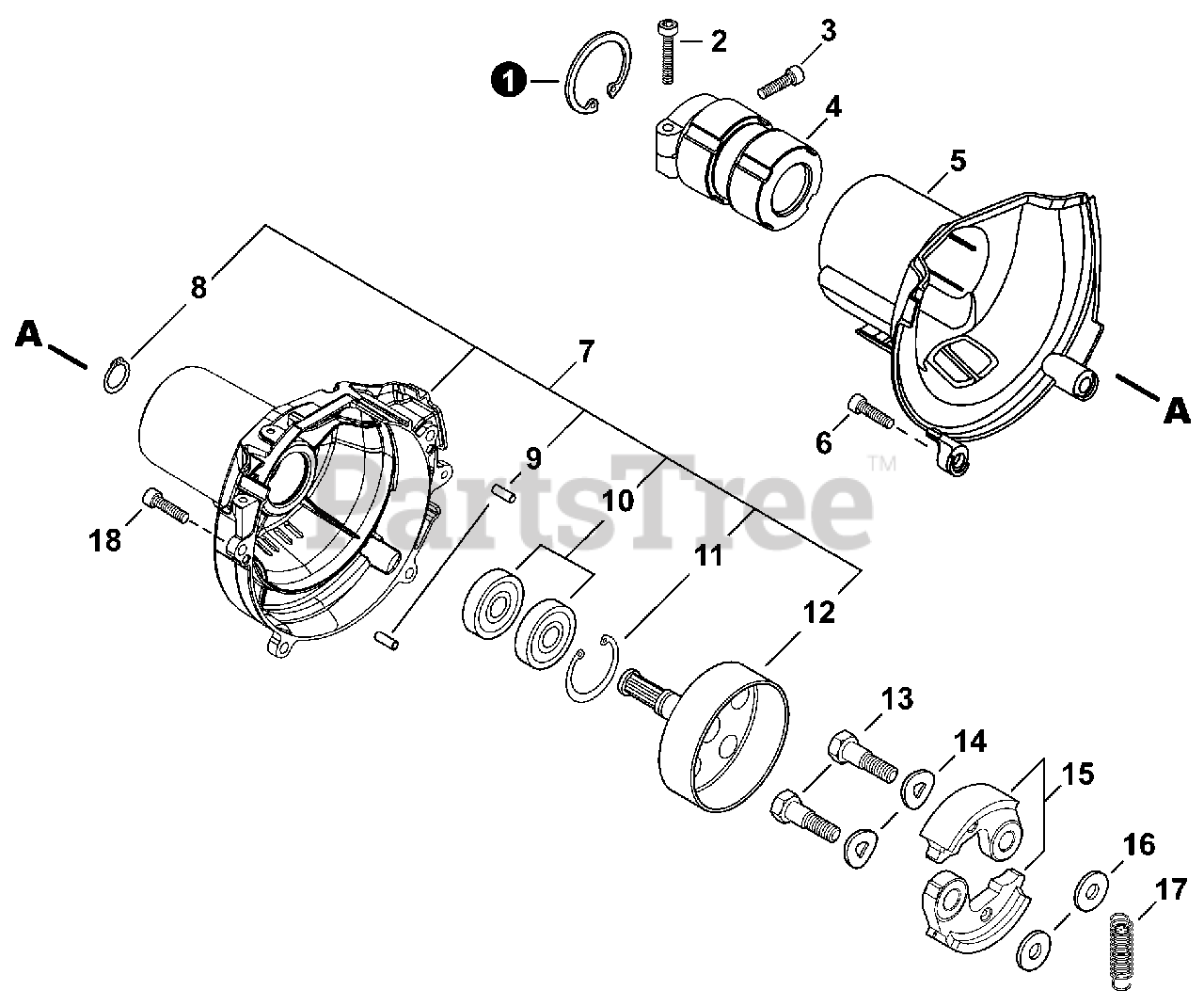

Fan Case Parts Diagram

  • Title

1

Echo 90070200045

RING, RETAINING Ø45

$1.99

$

In Stock, only 2 left!

0

2

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

4

Echo V420000970

HOLDER, MAIN PIPE

$20.99

$

In Stock, only 1 left!

0

5

Echo A413000120

PROTECTOR, FAN COVER

$11.99

$

Usually ships in 2-4 days

0

6

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

7

Echo P021052490

COVER ASSY, FAN

Note: Includes ITEMS 8-12

$100.99

$

In Stock, only 1 left!

0

8

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

9

Echo 90033040080

PIN, LOCATING 4×8

$0.99

$

In Stock, Qty 20+

0

10

Echo 90080706001

BEARING, BALL 6001

$11.99

$

In Stock, only 2 left!

0

11

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 13

0

12

Echo A556000420

DRUM, CLUTCH

$17.99

$

In Stock, only 1 left!

0

13

Echo 17504656030

BOLT, CLUTCH 8×7.9×M6

$4.99

$

In Stock, Qty 6

0

14

Echo 17504956030

WASHER, SPRING 8.5×16×0.5

$1.49

$

In Stock, Qty 20+

0

15

Echo A553000050

SHOE, CLUTCH

$15.99

$

In Stock, only 3 left!

0

16

Echo 17504805530

WASHER 6.2×19×1.0

$1.49

$

In Stock, Qty 7

0

17

Echo A566000020

SPRING, CLUTCH

$1.99

$

In Stock, Qty 19

0

18

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0
