SRM-3020 T - Echo String Trimmer (SN: U09815001001 - U09815999999) Intake Parts Diagram

String Trimmer

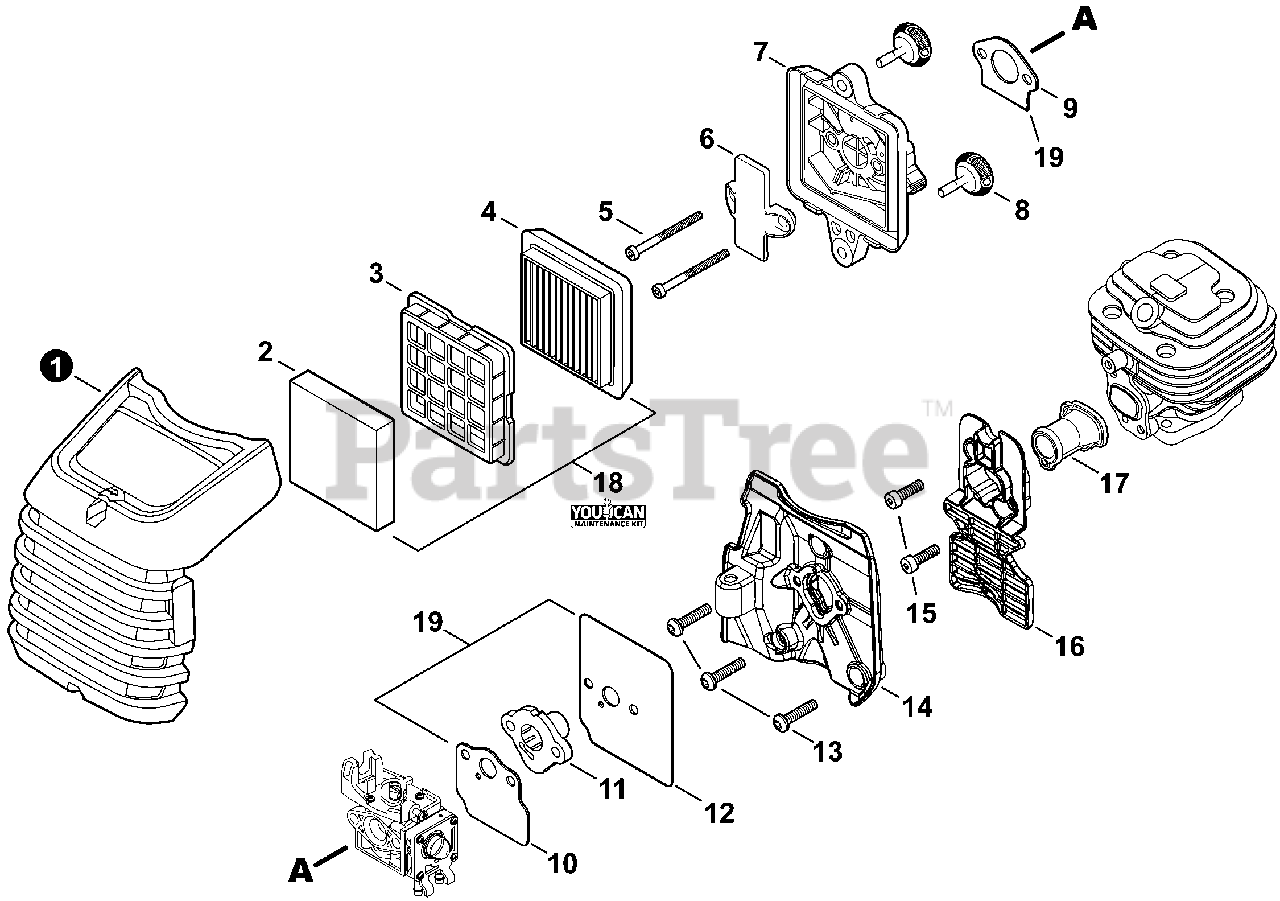

Intake Parts Diagram

  • Title

1

Echo A232001970

COVER, AIR FILTER

$10.99

$

In Stock, only 4 left!

0

2

Echo A226002040

PRE-FILTER, FOAM

Note: Included in Tune-up Kit

$2.99

$

In Stock, Qty 20+

0

3

Echo A227000050

RETAINER, PRE-FILTER

$2.99

$

In Stock, Qty 20+

0

4

Echo A226002030

FILTER, AIR

Note: Included in Tune-up Kit

$14.99

$

In Stock, Qty 20+

0

5

Echo V805000340

BOLT, TORX 5×60

$1.49

$

In Stock, Qty 14

0

6

Echo A244000320

PLATE, PREVENT
(Superseded to A244000370)

$16.99

$

In Stock, only 2 left!

0

7

Echo P021050880

CASE, AIR FILTER

$8.99

$

In Stock, Qty 7

0

8

Echo V299000640

THUMBSCREW

$2.99

$

In Stock, Qty 20+

0

9

Echo V103001900

GASKET, INTAKE

Note: Included in Gasket Kit

$1.99

$

In Stock, only 3 left!

0

10

Echo V103002010

GASKET, BOOT

Note: Included in Gasket Kit

$1.99

$

In Stock, Qty 12

0

11

Echo A209001090

BOOT, INTAKE

$1.99

$

In Stock, Qty 14

0

12

Echo A209001100

GASKET, INSULATOR PLATE

Note: Included in Gasket Kit

$3.99

$

In Stock, only 3 left!

0

13

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

14

Echo A209001080

PLATE, INSULATOR

$12.99

$

In Stock, only 3 left!

0

15

Echo V253001020

SCREW 5×16

$1.49

$

In Stock, Qty 20+

0

16

Echo A206000060

HOLDER, BELLOWS

$4.49

$

In Stock, only 1 left!

0

17

Echo A202000330

BELLOWS, INTAKE

$17.99

$

Usually ships in 2-4 days

0

18

Echo 90181Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$41.99

$

In Stock, only 4 left!

0

19

Echo P021052480

GASKET KIT

Note: See Maintenance Kits

$22.99

$

In Stock, only 2 left!

0
