SRM-3020 - Echo String Trimmer (SN: U09715001001 - U09715999999) Starter Parts Diagram

String Trimmer

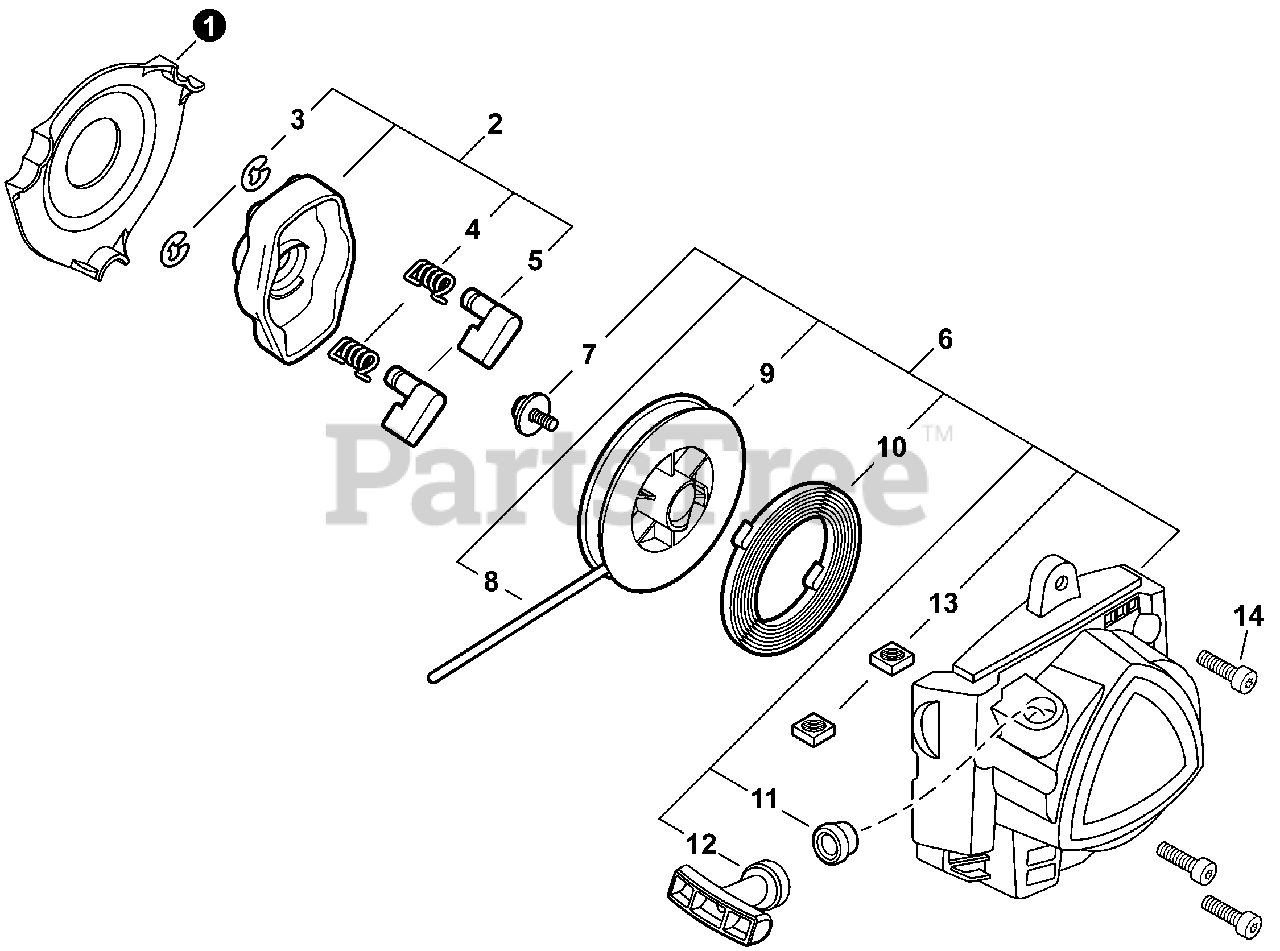

Starter Parts Diagram

  • Title

1

Echo A127000530

COVER, DUST

$2.49

$

Usually ships in 2-4 days

0

2

Echo A052000100

PULLEY ASSY, STARTER

Note: Includes ITEMS 3-5

$7.99

$

In Stock, only 2 left!

0

3

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

0

4

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

5

Echo A514000120

PAWL, STARTER
(Superseded to P022003120)

$3.49

$

In Stock, Qty 6

0

6

Echo A051003360

STARTER ASSY, RECOIL

Note: Includes ITEMS 7-13

$59.99

$

In Stock, Qty 11

0

7

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.49

$

In Stock, only 1 left!

0

8

Echo P022051030

ROPE, STARTER

$5.99

$

Usually ships in 2-4 days

0

9

Echo 17721543130

REEL, ROPE

$15.99

$

In Stock, only 1 left!

0

10

Echo 17722040630

SPRING, RECOIL

$14.99

$

In Stock, Qty 11

0

11

Echo P022045770

GUIDE, ROPE

$3.49

$

Usually ships in 2-4 days

0

12

Echo P022050910

GRIP, STARTER

$7.99

$

Usually ships in 2-4 days

0

13

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0
