SRM-302 ADX - Echo String Trimmer Ignition Parts Diagram

String Trimmer

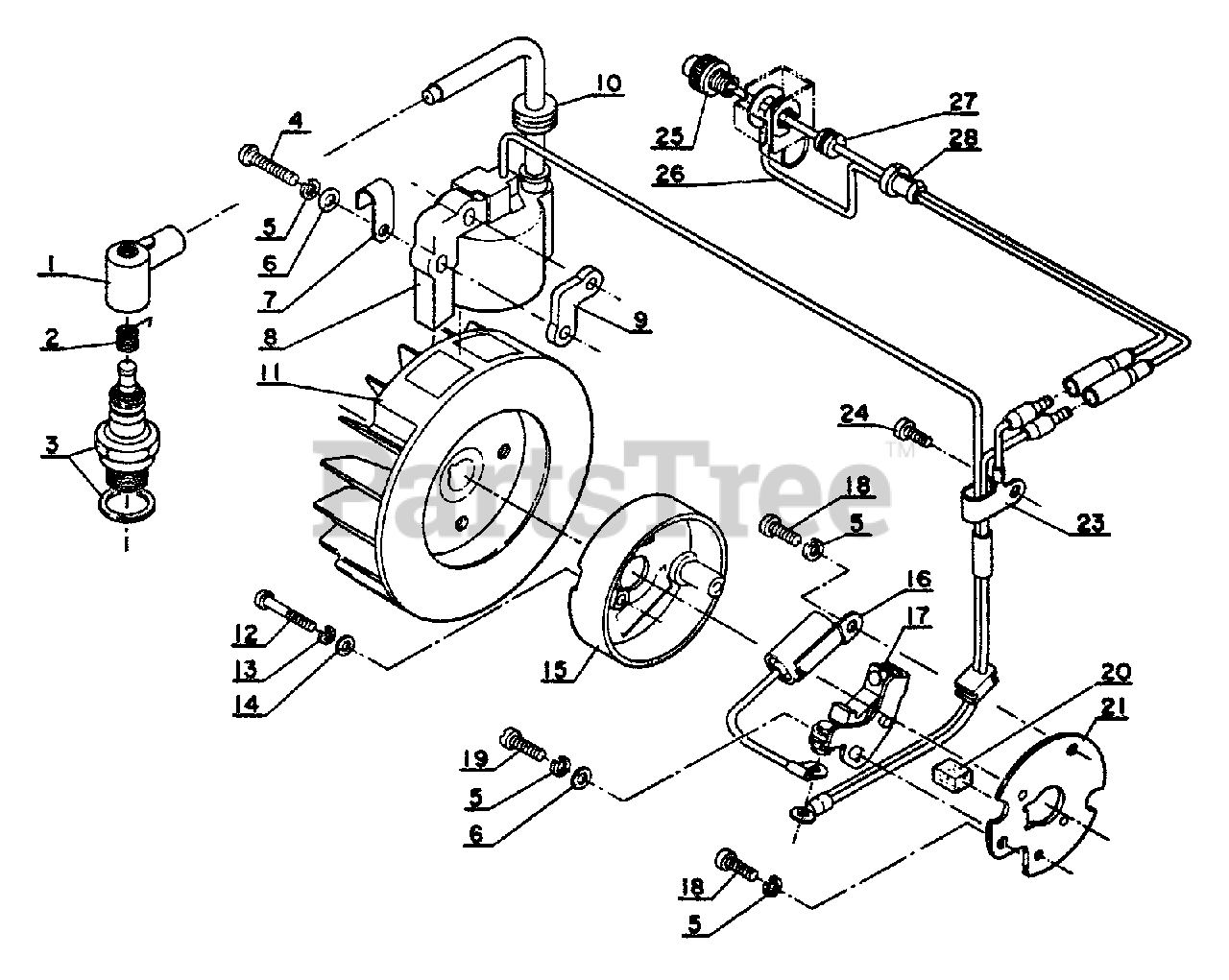

Ignition Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

2

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 13

0

3

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

4

Echo 15931412330

SCREW

$0.99

$

Usually ships in 2-4 days

0

5

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

6

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

7

Echo 15911304930

Clip (B)
(Superseded to Discontinued)

$

$

Not available

8

Echo 15012603930

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

9

Echo 15011703930

SPACER
(Superseded to 15011713730)

$2.99

$

Usually ships in 2-4 days

0

10

Echo 15011204930

BUSHING

$1.49

$

Usually ships in 2-4 days

0

11

Echo 15020004130

FLYWHEEL
(Superseded to 15020004131)

$

$

Not available

12

Echo 90022003020

SCREW - 3X20

$0.99

$

Usually ships in 2-4 days

0

13

Echo 90060500003

LOCKWASHER - 3

$0.99

$

Usually ships in 2-4 days

0

14

Echo 90060000003

WASHER - 3

$0.99

$

Usually ships in 2-4 days

0

15

Echo 15411203430

COVER, BREAKER
(Superseded to 15611203930)

$

$

Not available

16

Echo 15012703930

CONDENSER
(Superseded to Discontinued)

$

$

Not available

17

Echo 15010103930

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

18

Echo 90022004010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90022004012

SCREW - 4X12

$0.99

$

Usually ships in 2-4 days

0

20

Echo 15013403930

PAD
(Superseded to Discontinued)

$

$

Not available

21

Echo 15013203930

PLATE, STATOR
(Superseded to Discontinued)

$

$

Not available

23

Echo 15911204130

CLIP A
(Superseded to Discontinued)

$

$

Not available

24

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, only 3 left!

0

25

Echo 16610104930

Stopper button
(Superseded to Discontinued)

$

$

Not available

26

Echo 16201004930

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

27

Echo 15111404630

GROMMET
(Superseded to Discontinued)

$

$

Not available

28

Echo 16211004930

BUSHING
(Superseded to Discontinued)

$

$

Not available
