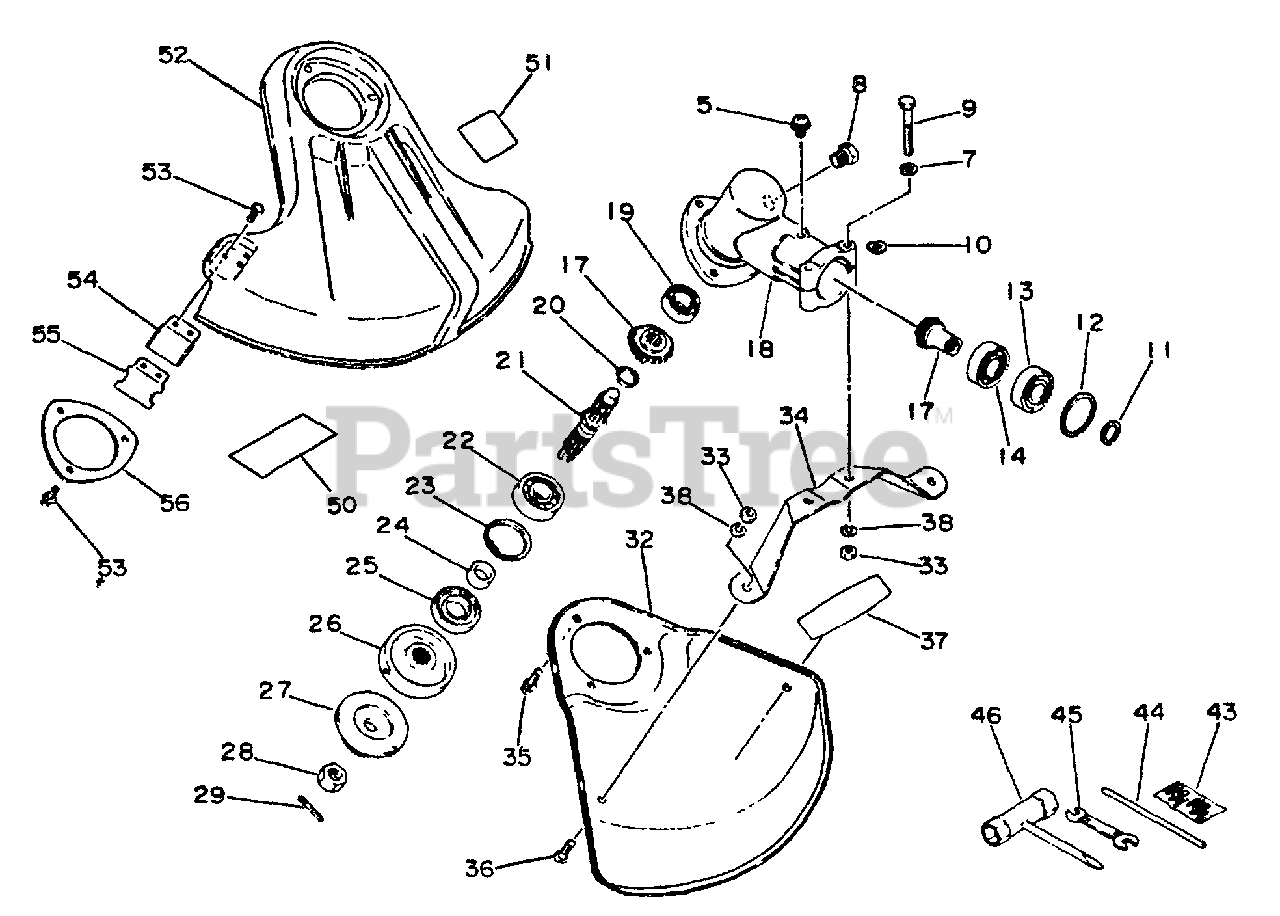

SRM-3010 - Echo String Trimmer (SN: 001001 - 021090) Shield, Gear Case, Tools Parts Diagram

String Trimmer

Shield, Gear Case, Tools Parts Diagram

  • Title

Echo 61040024533

GEAR CASE ASSY
(Superseded to 61040024534)

$309.99

$

Usually ships in 2-4 days

0

5

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

7

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

9

Echo 90010005040

BOLT - 5X40

$0.99

$

In Stock, Qty 6

0

10

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

11

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

12

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 13

0

13

Echo 90080796001

BEARING, BALL - 6001
(Superseded to 9405106001)

$6.49

$

In Stock, Qty 6

0

14

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, only 3 left!

0

17

Echo 61030040430

GEAR SET - BEVEL

$117.99

$

Usually ships in 2-4 days

0

18

Echo 61041007530

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

19

Echo 90080036000

BEARING, BALL - 6000

$11.99

$

Usually ships in 2-4 days

0

20

Echo 61033507130

RING, RETAINING - 12
(Superseded to 90070600012)

$1.49

$

In Stock, Qty 6

0

21

Echo 61031041030

GEAR - SHAFT

$91.99

$

In Stock, only 1 left!

0

22

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

23

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

24

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 5

0

25

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

26

Echo 61031307130

ADAPTOR, BLADE - UPPER
(Superseded to 61031307132)

$17.99

$

In Stock, Qty 5

0

27

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, Qty 7

0

28

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 9

0

29

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

33

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

38

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

32

Echo 69900007531

SHIELD
(Superseded to Discontinued)

$

$

Not available

33

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 69901507532

BRACKET, SHIELD
(Superseded to 69901523532)

$7.49

$

Usually ships in 2-4 days

0

35

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

36

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

38

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

37

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 8

0

43

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 2 left!

0

44

Echo 89751801131

LOCKING TOOL

$

$

Not available

45

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

46

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

50

Echo 89013840630

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 8

0

51

Echo 89017740730

LABEL - CAUTION

$1.49

$

In Stock, only 1 left!

0

52

Echo 69900040830

SHIELD, DEBRIS - PLASTIC
(Superseded to 69900040831)

$25.99

$

In Stock, only 4 left!

0

53

Echo 69901623231

KNIFE, TRIMMER LINE
(Superseded to P021006080)

$1.99

$

In Stock, only 3 left!

0

54

Echo 69921223230

GUARD
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

55

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

56

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

$2.49

$

In Stock, Qty 13

0
