SRM-3010 - Echo String Trimmer (SN: 001001 - 021090) Fuel System Parts Diagram

String Trimmer

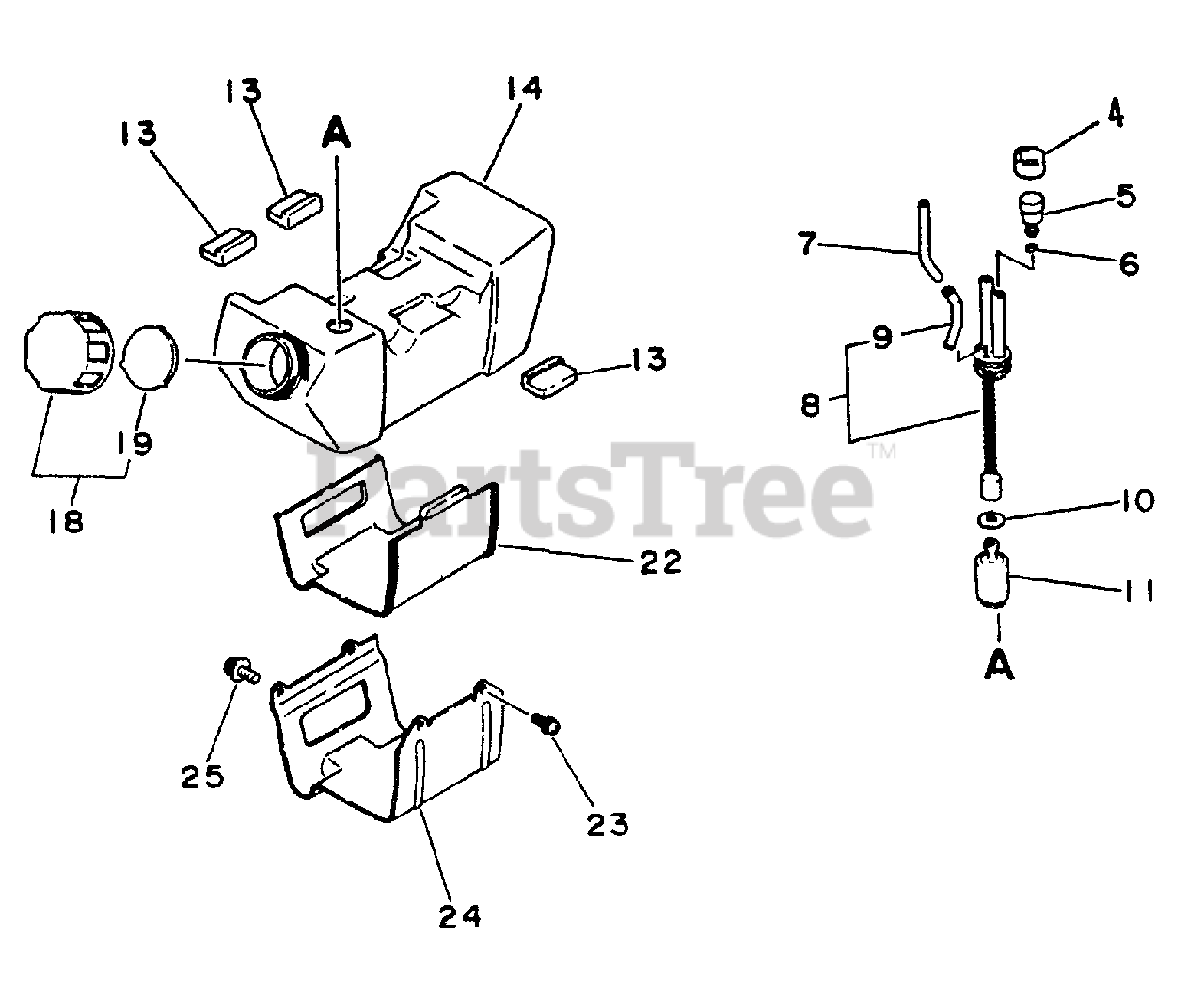

Fuel System Parts Diagram

  • Title

5

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 16

0

6

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

7

Echo 13201049030

PIPE - 3X6X50 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 8

0

8

Echo 13200240930

FUEL SYSTEM KIT

$12.99

$

In Stock, Qty 6

0

9

Echo 13202140630

CONNECTOR, PIPE

$5.99

$

In Stock, only 1 left!

0

10

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$8.99

$

In Stock, Qty 20+

0

13

Echo 13192405530

CUSHION, FUEL TANK

$2.49

$

In Stock, only 2 left!

0

14

Echo 13101041030

TANK, FUEL
(Superseded to 13101051830)

$

$

Not available

18

Echo 13100440630

CAP ASSY
(Superseded to 13100440930)

$7.49

$

In Stock, only 4 left!

0

19

Echo 13101640630

GASKET, CAP
(Superseded to Discontinued)

$

$

Not available

22

Echo 13192441030

CUSHION

$5.49

$

Usually ships in 2-4 days

0

23

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 14

0

24

Echo 13191041030

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

25

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0

4

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, only 4 left!

0
