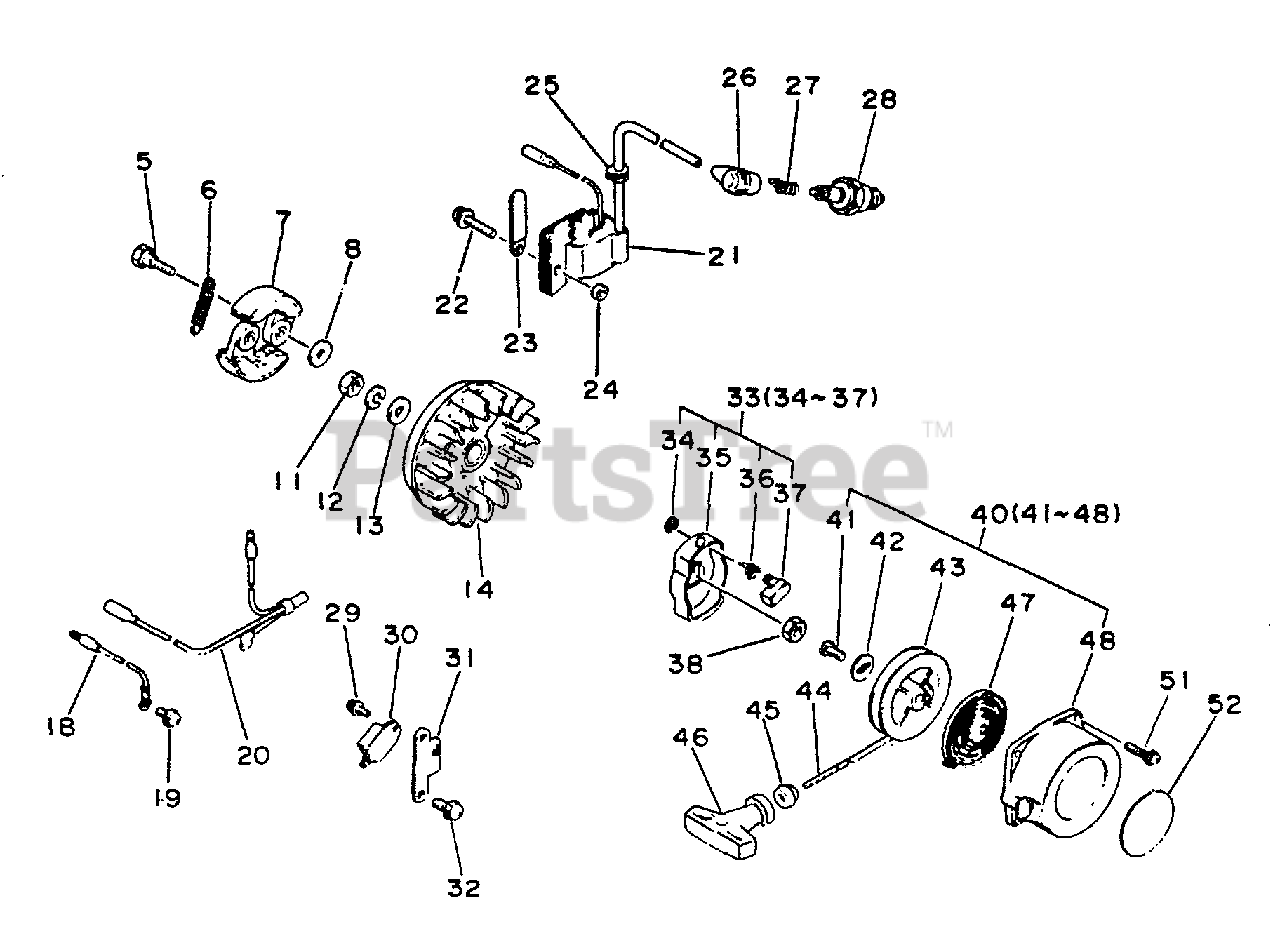

SRM-3010 - Echo String Trimmer (SN: 001001 - 021090) Clutch, Ignition, Starter Parts Diagram

String Trimmer

Clutch, Ignition, Starter Parts Diagram

  • Title

5

Echo 17504622332

BOLT, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

6

Echo 17501805731

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

7

Echo 17500905732

SHOE, CLUTCH
(Superseded to 17500905733)

$

$

Not available

8

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 7

0

11

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

13

Echo 17504903920

WASHER

$1.49

$

In Stock, Qty 10

0

14

Echo 15280127430

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

18

Echo 16201427230

LEAD - GROUND

$2.99

$

In Stock, Qty 5

0

19

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

20

Echo 16200041030

LEAD

$7.49

$

Usually ships in 2-4 days

0

21

Echo 15262627530

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

22

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

23

Echo 15911621231

CLAMP

$1.49

$

In Stock, only 1 left!

0

24

Echo 15211705530

SPACER
(Superseded to 15011716430)

$2.99

$

In Stock, only 2 left!

0

25

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

26

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

27

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

28

Echo 15901713930

SPARK PLUG -- CJ-7Y
(Superseded to 15901010630)

$3.99

$

In Stock, Qty 20+

0

29

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

30

Echo 15260115130

COIL, IGNITION

$145.99

$

Usually ships in 2-4 days

0

31

Echo 15931027430

BRACKET, IGNITION COIL
(Superseded to Discontinued)

$

$

Not available

32

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0

33

Echo 17720241030

STARTER PAWL ASSY
(Superseded to A052000370)

$13.99

$

In Stock, only 2 left!

0

34

Echo 90070000006

RING, RETAINING - 6

$0.99

$

In Stock, Qty 5

0

35

Echo 17721040630

CATCHER, PAWL
(Superseded to 17720240630)

$12.99

$

In Stock, Qty 20+

0

36

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

37

Echo 17721841030

PAWL, STARTER
(Superseded to 17721840630)

$3.49

$

In Stock, Qty 6

0

38

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

40

Echo 17720041030

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

41

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

42

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

43

Echo 17721541030

REEL, ROPE
(Superseded to 17721543130)

$15.99

$

In Stock, only 1 left!

0

44

Echo 17722601110

ROPE, STARTER - 4X880

Note: RePower BULK OPTION: 99944450000

$5.99

$

In Stock, only 1 left!

0

45

Echo 17722705530

GUIDE, ROPE

$3.99

$

In Stock, Qty 10

0

46

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 18

0

47

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 11

0

48

Echo 17723241030

CASE, STARTER - ORANGE
(Superseded to 17723246430)

$43.99

$

Usually ships in 2-4 days

0

51

Echo 90023804020

SCREW - 4X20

$0.99

$

In Stock, Qty 6

0

52

Echo 89011217830

LABEL - ECHO
(Superseded to 89011849330)

$6.49

$

In Stock, only 4 left!

0

Echo 99944400035

BULK ROPE - 3.5X 850
(Superseded to 99944435000)

$27.99

$

Usually ships in 2-4 days

0
