SRM-3000 - Echo String Trimmer (SN: 043226 - 999999) Intake, Exhaust, Air Cleaner, Fuel System Parts Diagram

String Trimmer

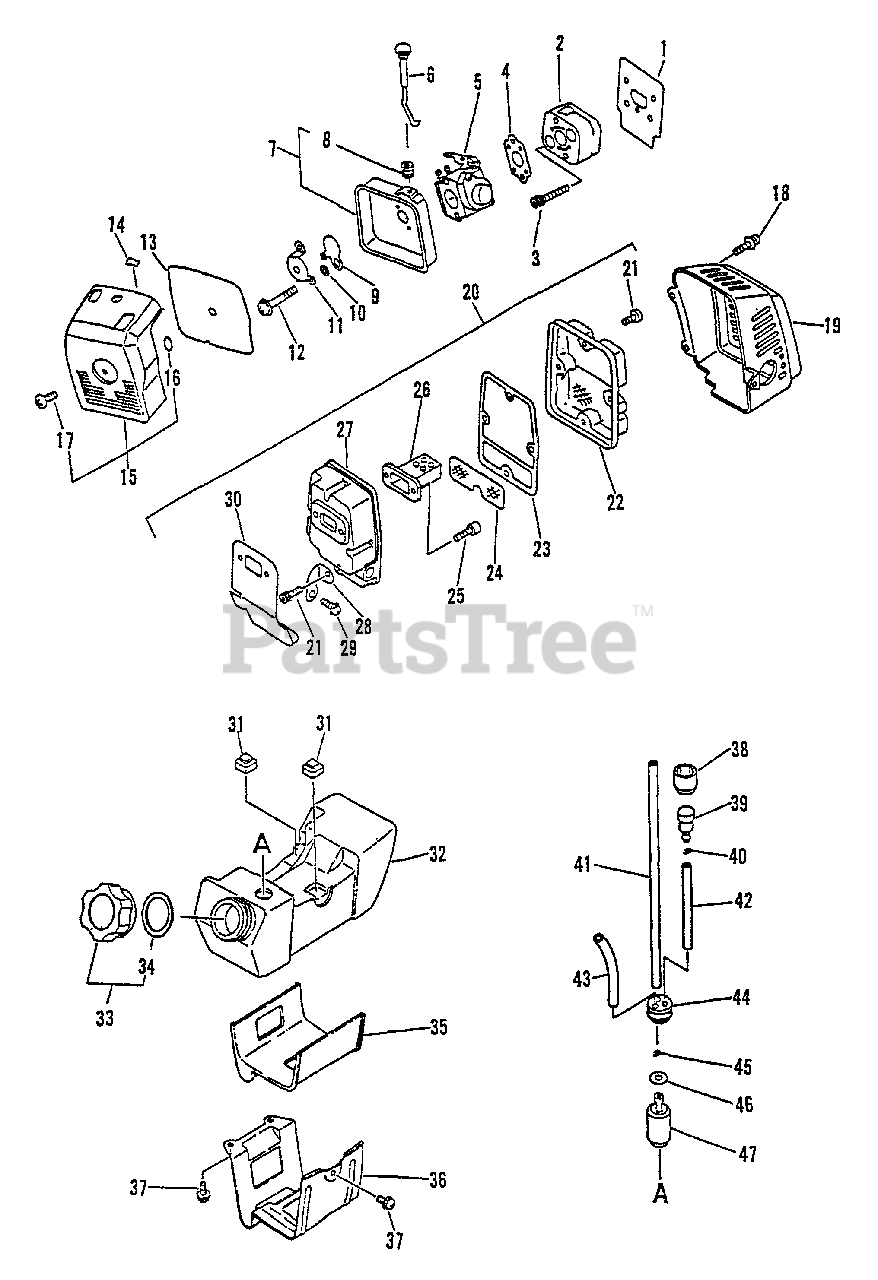

Intake, Exhaust, Air Cleaner, Fuel System Parts Diagram

  • Title

1

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

2

Echo 13000751330

INSULATOR

$10.99

$

Usually ships in 2-4 days

0

3

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo 13001640931

GASKET, INTAKE

$0.99

$

In Stock, Qty 9

0

5

Echo 12520051331

CARBURETOR C1U-K21A
(Superseded to 12520051332)

$

$

Not available

6

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

7

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

Note: Includes ITEM 8

$

$

Not available

8

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 8

0

9

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

10

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 12901151730

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

12

Echo 90023805045

SCREW - 5X45

$0.99

$

In Stock, Qty 6

0

13

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

14

Echo X506000070

LABEL - CHOKE

$0.99

$

In Stock, Qty 9

0

15

Echo 13030251730

AIR FILTER COVER ASSY
(Superseded to 13030251731)

Note: Includes ITEMS 16-17

$15.99

$

In Stock, Qty 5

0

16

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 10

0

17

------------------

UNKNOWN

$

$

Not available

18

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

19

Echo 14562151830

COVER, MUFFLER
(Superseded to 14562151831)

$

$

Not available

20

Echo 14580051330

MUFFLER ASSY
(Superseded to Discontinued)

Note: Includes Items 21 - 30

$

$

Not available

21

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

22

Echo 14586151330

LID, MUFFLER

$41.99

$

Usually ships in 2-4 days

0

23

Echo 14586651330

GASKET, EXHAUST

$5.99

$

Usually ships in 2-4 days

0

24

Echo 14586251030

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

25

Echo 90010505018

SCREW - 5X18

$1.49

$

In Stock, only 2 left!

0

26

Echo 14585951230

BAFFLE, MUFFLER

$5.99

$

Usually ships in 2-4 days

0

27

Echo 14581051330

MUFFLER
(Superseded to Discontinued)

$

$

Not available

28

Echo 14571151330

BRACKET, MUFFLER

$6.99

$

Usually ships in 2-4 days

0

29

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

30

Echo 14551051330

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

31

Echo 13192405530

CUSHION, FUEL TANK

$2.49

$

In Stock, only 2 left!

0

32

Echo 13101051830

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

33

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 34

$4.49

$

In Stock, only 1 left!

0

34

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 19

0

35

Echo 13192441030

CUSHION

$5.49

$

Usually ships in 2-4 days

0

36

Echo 13191041030

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

37

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0

38

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

39

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 9

0

40

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

41

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

42

Echo 13201051230

PIPE - 3X6X70 -- BLACK

Note: RePower BULK OPTION: 90015

$4.99

$

In Stock, Qty 5

0

43

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

44

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

45

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

46

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

47

Echo 13120002830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0
