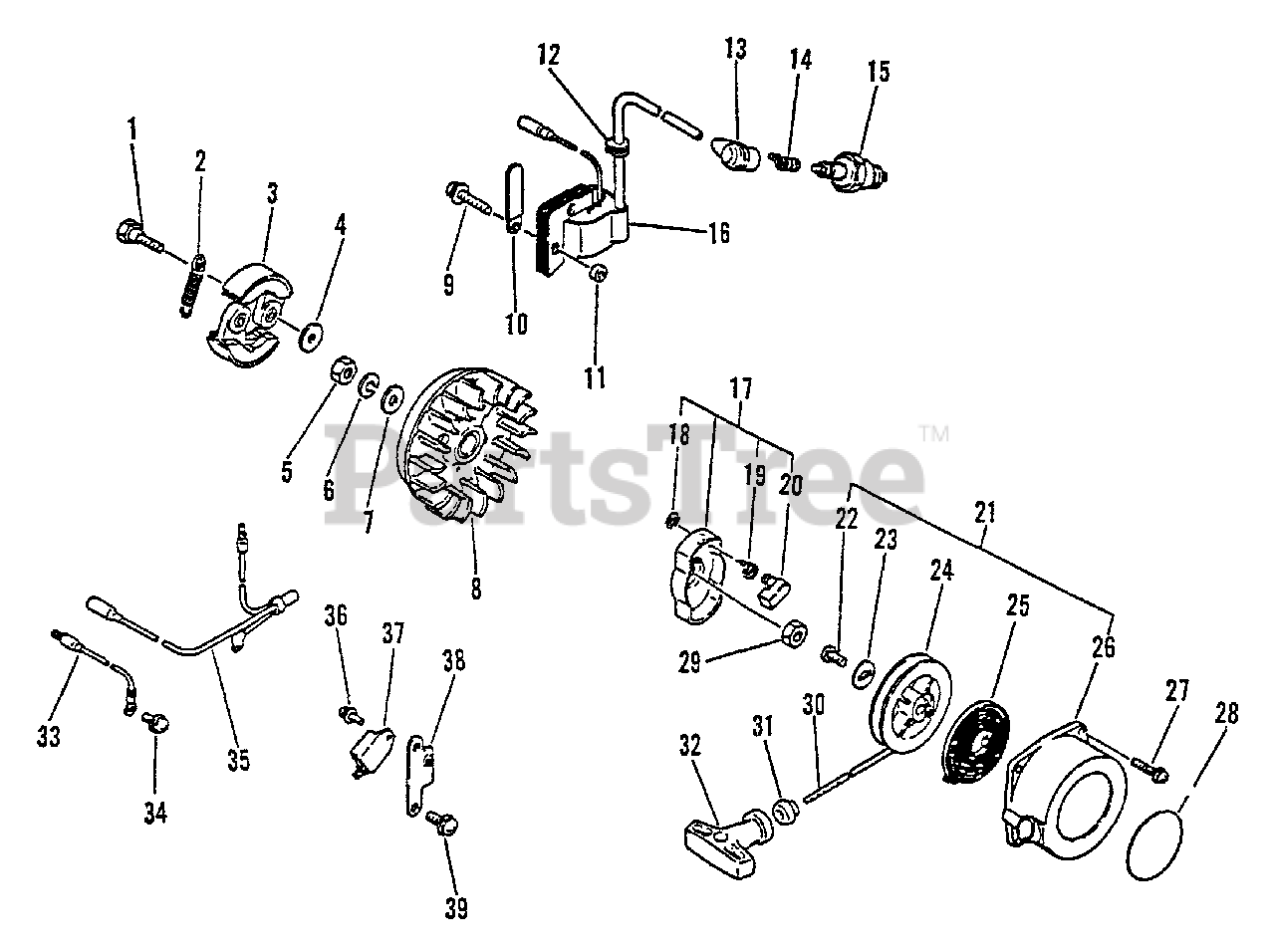

SRM-3000 - Echo String Trimmer (SN: 043226 - 999999) Clutch, Ignition, Starter Parts Diagram

String Trimmer

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 17504622332

BOLT, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

2

Echo 17501805731

SPRING, CLUTCH
(Superseded to Discontinued)

$

$

Not available

3

Echo 17500905733

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

4

Echo 17504805530

WASHER - 6

$1.49

$

In Stock, Qty 7

0

5

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

6

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

7

Echo 17504903920

WASHER

$1.49

$

In Stock, Qty 10

0

8

Echo 15280127430

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

9

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

10

Echo 15911621231

CLAMP

$1.49

$

In Stock, only 1 left!

0

11

Echo 15011716430

SPACER

$2.99

$

In Stock, only 2 left!

0

12

Echo 15611240630

GROMMET

$1.49

$

In Stock, only 2 left!

0

13

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

14

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

15

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

16

Echo 15262627530

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

17

Echo 17720241030

STARTER PAWL ASSY
(Superseded to A052000370)

Note: Includes Items 18 - 20

$13.99

$

In Stock, only 2 left!

0

18

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

19

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

20

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 6

0

21

Echo 17720049730

STARTER ASSY
(Superseded to Discontinued)

Note: Includes Items 22 - 26, 30 - 32

$

$

Not available

22

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

23

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

24

Echo 17721543130

REEL, ROPE

$15.99

$

In Stock, only 1 left!

0

25

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 11

0

26

Echo 17723241030

CASE, STARTER - ORANGE
(Superseded to 17723246430)

$43.99

$

Usually ships in 2-4 days

0

27

Echo 90023804020

SCREW - 4X20

$0.99

$

In Stock, Qty 6

0

28

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0

29

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

30

Echo 17722601110

ROPE, STARTER - 4X880

Note: RePower BULK OPTION: 99944450000

$5.99

$

In Stock, only 1 left!

0

31

Echo 17722705530

GUIDE, ROPE

$3.99

$

In Stock, Qty 10

0

32

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 18

0

33

Echo 16201427230

LEAD - GROUND

$2.99

$

In Stock, Qty 5

0

34

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

35

Echo 16200041030

LEAD

$7.49

$

Usually ships in 2-4 days

0

36

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

37

Echo 15260115130

COIL, IGNITION

$145.99

$

Usually ships in 2-4 days

0

38

Echo 15931027430

BRACKET, IGNITION COIL
(Superseded to Discontinued)

$

$

Not available

39

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0
