SRM-3000 - Echo String Trimmer (SN: 037501 - 043225) Driveshaft, Clutch Housing, Throttle, Stop Switch, Handles, Harness Parts Diagram

String Trimmer

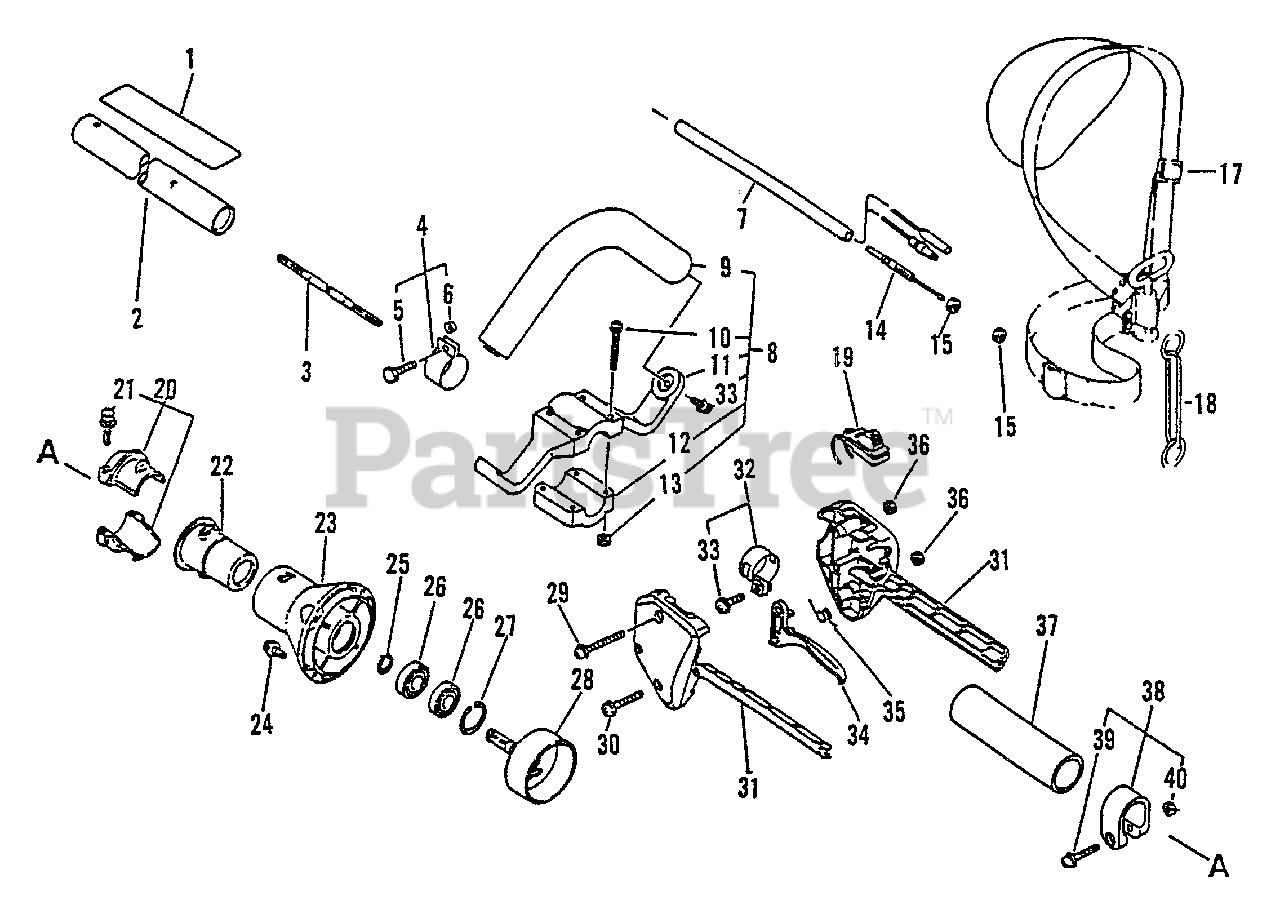

Driveshaft, Clutch Housing, Throttle, Stop Switch, Handles, Harness Parts Diagram

  • Title

1

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days

0

2

Echo 61020643130

MAIN PIPE ASSY
(Superseded to 61020643131)

$122.99

$

Usually ships in 2-4 days

0

3

Echo 61001106230

DRIVESHAFT - SOLID

$51.99

$

Usually ships in 2-4 days

0

4

Echo 30120707530

HOOK

Note: INCLUDES ITEMS 5 & 6

$5.99

$

Usually ships in 2-4 days

0

5

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

6

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0

7

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

8

Echo 35120107131

HANDLE ASSY
(Superseded to P021041120)

Note: INCLUDES ITEMS 9 - 13 & 33

$66.99

$

Usually ships in 2-4 days

0

9

Echo 35120507130

HANDLE - FRONT
(Superseded to 35120507131)

$

$

Not available

10

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

11

Echo 35123207130

BRACKET, HANDLE - UPPER

$22.99

$

Usually ships in 2-4 days

0

12

Echo 35122506930

BRACKET, HANDLE

$6.49

$

In Stock, only 2 left!

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 17800151030

CABLE, THROTTLE

$17.99

$

In Stock, Qty 6

0

15

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0

17

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$21.99

$

In Stock, only 1 left!

0

18

Echo 30130524330

HOOK

$10.99

$

Usually ships in 2-4 days

0

19

Echo A440000280

IGNITION SWITCH ASSY

$11.99

$

In Stock, Qty 13

0

20

Echo 61090340430

HOLDER KIT

Note: Includes ITEM 21

$13.99

$

Usually ships in 2-4 days

0

21

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

22

Echo 61091040430

CUSHION

$

$

Not available

23

Echo 61020549730

CASE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

24

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

25

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

26

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

27

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

28

Echo 17500540430

DRUM, CLUTCH

$44.99

$

Usually ships in 2-4 days

0

29

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

30

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

31

Echo 17800351830

THROTTLE BRACKET SET

Note: INCLUDES ITEMS 29, 30 & 36

$45.99

$

Usually ships in 2-4 days

0

32

Echo 30120042230

MAIN PIPE CLAMP KIT

Note: Includes ITEM 33

$9.49

$

Usually ships in 2-4 days

0

33

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

34

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

35

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

36

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

37

Echo 35121351830

GRIP, HANDLE

$11.99

$

Usually ships in 2-4 days

0

38

Echo 61027251830

CLAMP

Note: INCLUDES ITEMS 39 & 40

$19.99

$

Usually ships in 2-4 days

0

39

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

40

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0
