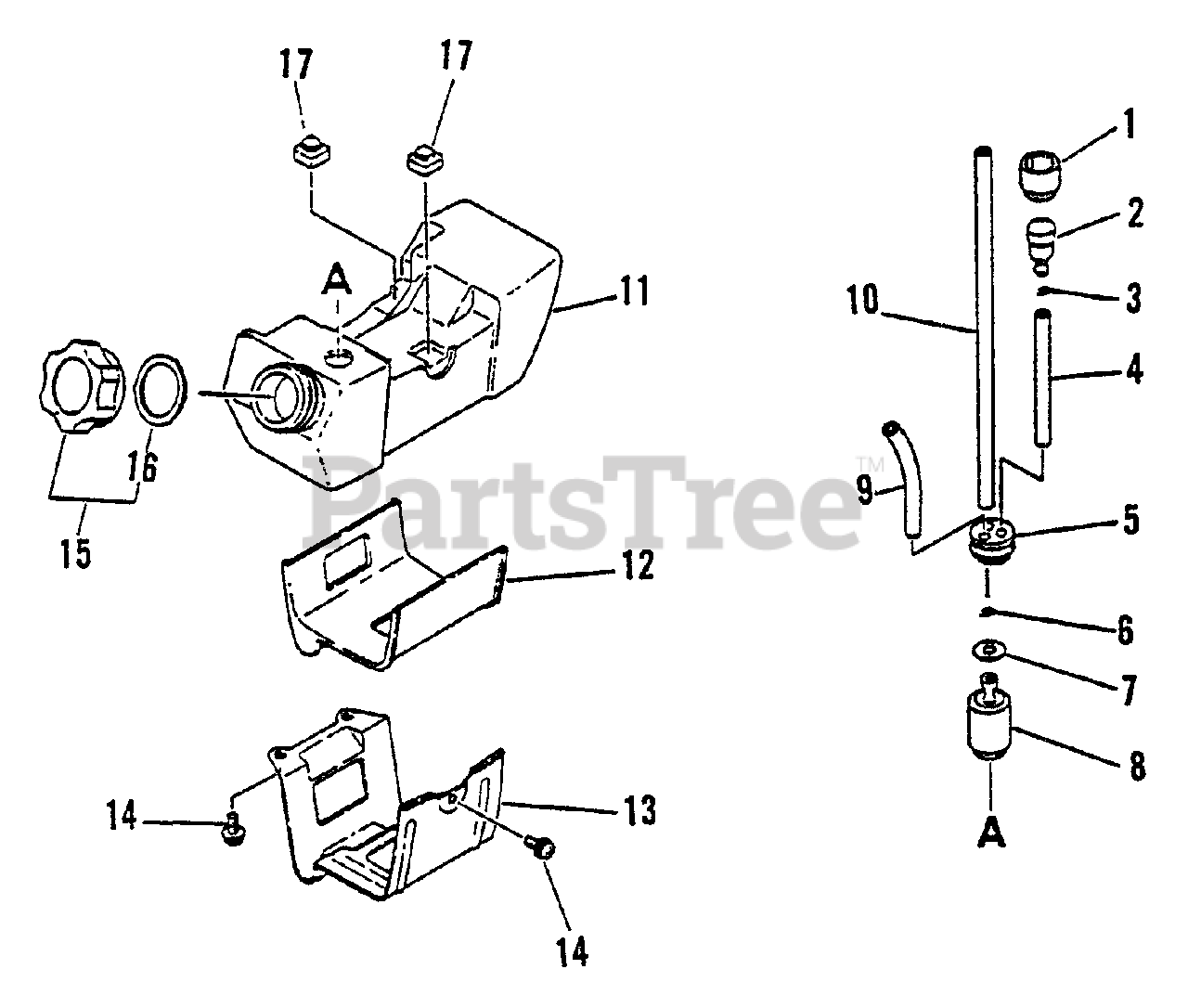

SRM-3000 - Echo String Trimmer (SN: 034001 - 037500) Fuel System Parts Diagram

String Trimmer

Fuel System Parts Diagram

  • Title

1

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, only 4 left!

0

2

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 16

0

3

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

4

Echo 13201051230

PIPE - 3X6X70 -- BLACK

Note: RePower BULK OPTION: 90015

$4.99

$

In Stock, Qty 5

0

5

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

6

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

7

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 13120002830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0

9

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

10

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

11

Echo 13101049730

TANK, FUEL
(Superseded to 13101051830)

$

$

Not available

12

Echo 13192441030

CUSHION

$5.49

$

Usually ships in 2-4 days

0

13

Echo 13191041030

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

14

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0

15

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 16

$4.49

$

In Stock, only 1 left!

0

16

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 20+

0

17

Echo 13192405530

CUSHION, FUEL TANK

$2.49

$

In Stock, only 2 left!

0
