SRM-3000 - Echo String Trimmer (SN: 034001 - 037500) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

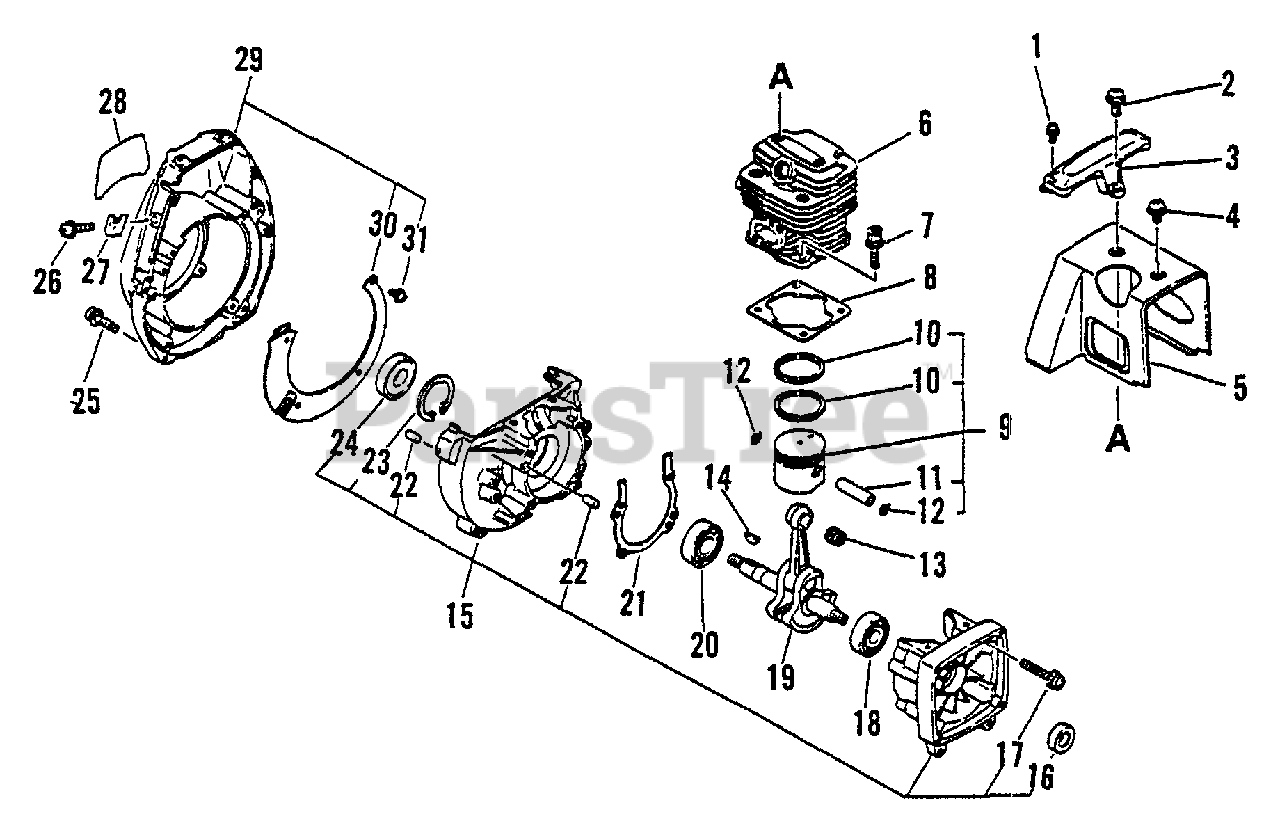

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title
1

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

2

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

3

Echo 15990541030

GUARD - TOP
(Superseded to Discontinued)

$

$

Not available

4

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

5

Echo 10151449730

COVER, ENGINE

$11.99

$

Usually ships in 2-4 days

0

6

Echo 10101127530

CYLINDER
(Superseded to Discontinued)

$

$

Not available

7

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

8

Echo 10101021230

GASKET, CYLINDER
(Superseded to Discontinued)

Note: USE GASKET KIT P/N 88900051830

$

$

Not available

9

Echo 10000027430

PISTON KIT
(Superseded to 10000027431)

Note: Includes ITEMS 10-12

$

$

Not available

10

Echo 10001116131

RING, PISTON

$7.49

$

In Stock, Qty 6

0

11

Echo 10001327430

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

12

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 10001216131

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

$1.49

$

Usually ships in 2-4 days

0

15

Echo 10020427430

CRANKCASE KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 16 - 18, 20 - 24

$

$

Not available

16

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

17

Echo 90023805030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

18

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

19

Echo 10010021230

CRANKSHAFT ASSY
(Superseded to Discontinued)

Note: Includes ITEM 13

$

$

Not available

20

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

21

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT P/N 88900051830

$

$

Not available

22

Echo 10021502830

PIN - LOCATING

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

24

Echo 10021205730

SEAL, OIL

$5.49

$

Usually ships in 2-4 days

0

25

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

26

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

27

Echo 17812151330

HOLDER, CABLE

$3.49

$

Usually ships in 2-4 days

0

28

$1.49

$

Usually ships in 2-4 days

0

29

Echo 10150351830

FAN CASE ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 26, 27, 30, 31

$

$

Not available

30

Echo 10153421230

SHIELD, FAN

$8.99

$

Usually ships in 2-4 days

0

31

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

Echo 88900051830

GASKET KIT

$21.99

$

Usually ships in 2-4 days

0
