SRM-3000 - Echo String Trimmer (SN: 027001 - 034000) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

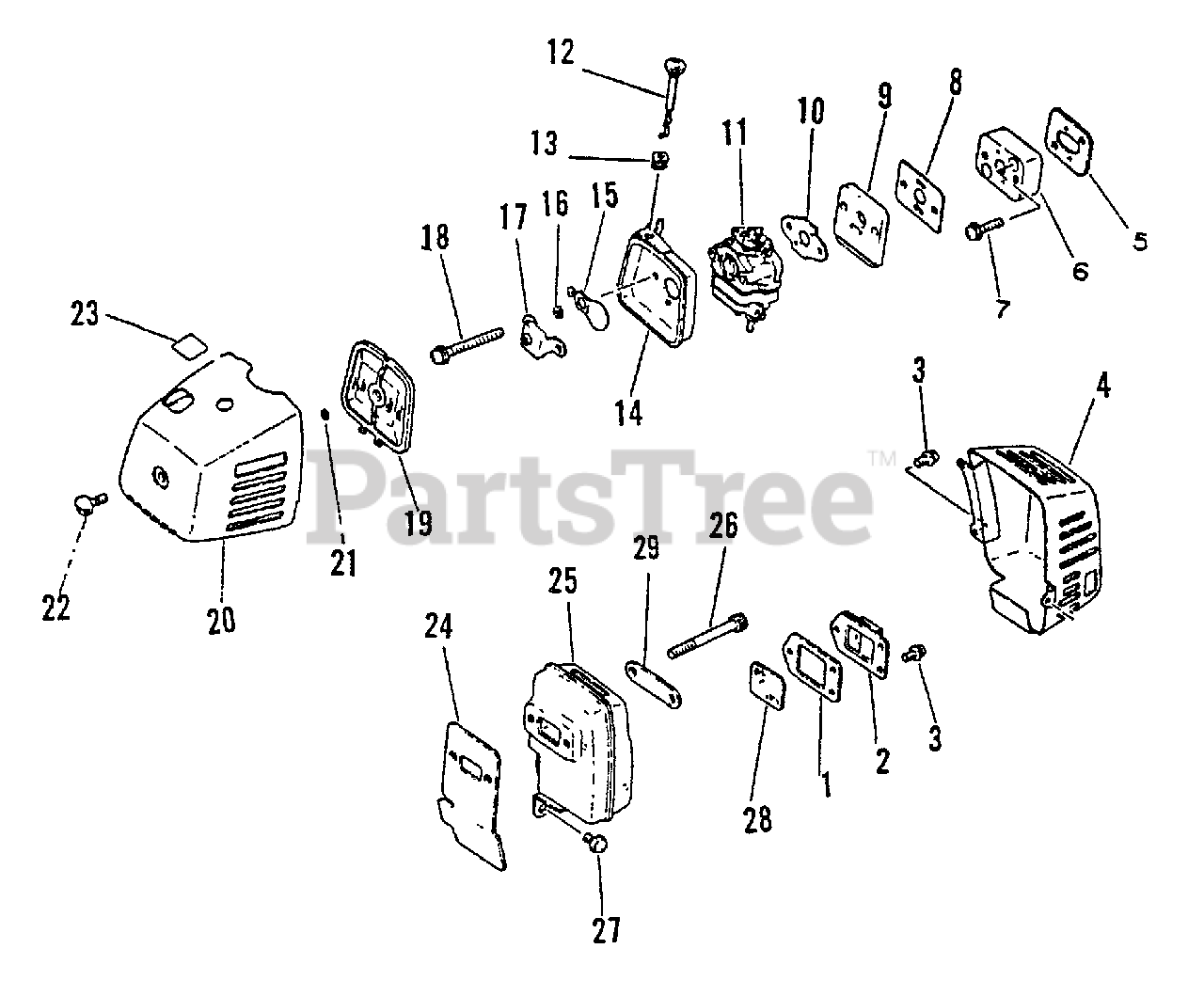

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
1

Echo 14586627231

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

2

Echo 14580941030

GUIDE, EXHAUST

$7.99

$

Usually ships in 2-4 days

0

3

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

4

Echo 14587141031

COVER, EXHAUST
(Superseded to Discontinued)

$

$

Not available

5

Echo 13001027531

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

6

Echo 13000741030

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

7

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

8

Echo 13002240931

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13002641030

PLATE
(Superseded to Discontinued)

$

$

Not available

10

Echo 13001640931

GASKET, INTAKE

$0.99

$

In Stock, Qty 10

0

11

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

12

Echo 17851049130

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

13

$1.99

$

In Stock, Qty 8

0

14

Echo 13030740930

CASE, AIR FILTER

$10.99

$

Usually ships in 2-4 days

0

15

Echo 17851540630

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

16

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 12900640930

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

18

Echo 90023805050

SCREW - 5X50

$0.99

$

In Stock, Qty 11

0

19

Echo 13031040930

FILTER, AIR

$11.99

$

In Stock, only 1 left!

0

20

Echo 13030241030

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 21-22

$

$

Not available

21

Echo 90072000004

O-RING - 4

$1.99

$

In Stock, Qty 14

0

22

$2.99

$

In Stock, only 1 left!

0

23

Echo X506000070

LABEL - CHOKE

$0.99

$

In Stock, Qty 9

0

24

Echo 14551027531

GASKET, EXHAUST

$3.49

$

Usually ships in 2-4 days

0

25

Echo 14580641030

MUFFLER
(Superseded to Discontinued)

$

$

Not available

26

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 15

0

27

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

28

Echo 14586227230

SCREEN, SPARK ARRESTOR

$3.99

$

Usually ships in 2-4 days

0

29

$1.49

$

Usually ships in 2-4 days

0
