SRM-3000 - Echo String Trimmer (SN: 027001 - 034000) Fuel System Parts Diagram

String Trimmer

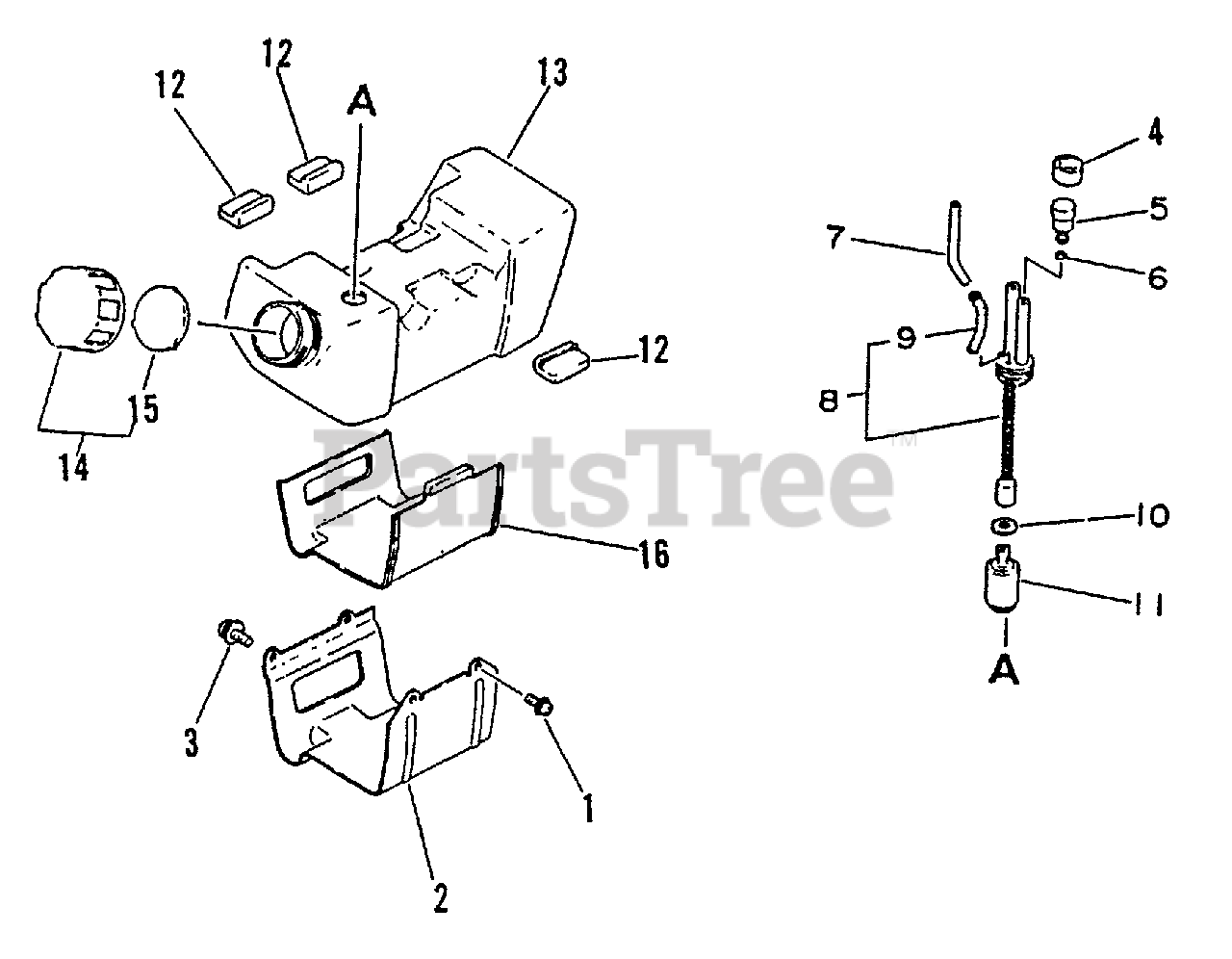

Fuel System Parts Diagram

  • Title

1

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 14

0

2

Echo 13191041030

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

3

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0

4

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, only 4 left!

0

5

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 16

0

6

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

7

Echo 12902840930

PIPE - 3X5X50 -- BLACK
(Superseded to 13201049030)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 8

0

8

Echo 13200240930

FUEL SYSTEM KIT

Note: Includes ITEM 9

$12.99

$

In Stock, Qty 6

0

9

Echo 13202140630

CONNECTOR, PIPE

$5.99

$

In Stock, only 1 left!

0

10

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13120021330

FILTER, FUEL
(Superseded to 13120002830)

$8.99

$

In Stock, Qty 20+

0

12

Echo 13192405530

CUSHION, FUEL TANK

$2.49

$

In Stock, only 2 left!

0

13

Echo 13101049730

TANK, FUEL
(Superseded to 13101051830)

$

$

Not available

14

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 15

$4.49

$

In Stock, only 1 left!

0

15

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 20+

0

16

Echo 13192441030

CUSHION

$5.49

$

Usually ships in 2-4 days

0
