SRM-300 AE1 - Echo String Trimmer Driveshaft, Handles, Harness, Throttle Parts Diagram

String Trimmer

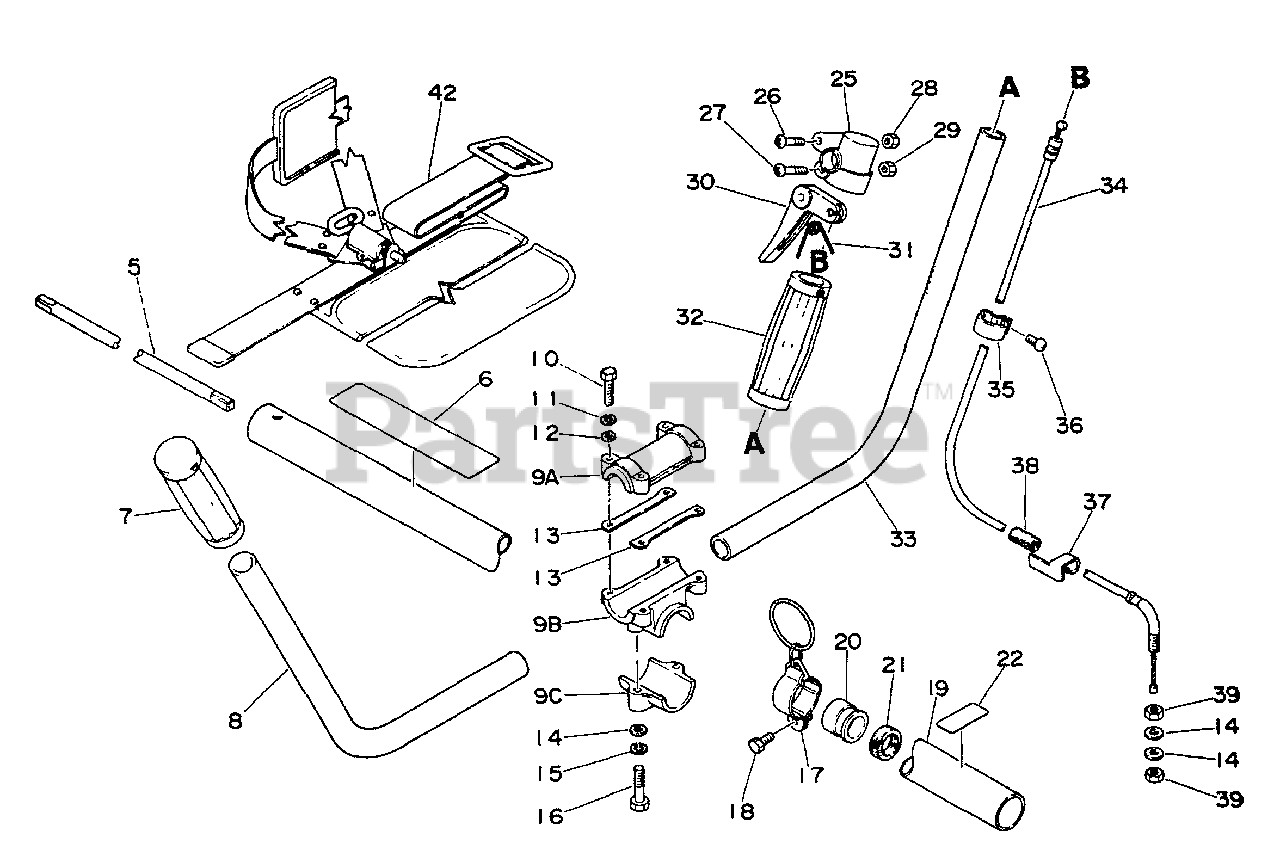

Driveshaft, Handles, Harness, Throttle Parts Diagram

  • Title

5

Echo 61001104130

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

6

Echo 89016024230

LABEL - CAUTION
(Superseded to 89016044730)

$3.99

$

Usually ships in 2-4 days

0

7

Echo 35131102330

GRIP, HANDLE - LEFT

$6.49

$

In Stock, only 3 left!

0

8

Echo 35121005530

HANDLE, FRONT - LEFT

$

$

Not available

9

Echo 35130104130

HANDLE BRACKET KIT

Note: Includes ITEMS 10-16

$31.99

$

Usually ships in 2-4 days

0

9A

Echo 35130104130

HANDLE BRACKET KIT

Note: See Ref No. 9, Bracket ass'y P\N 35130104130

$31.99

$

Usually ships in 2-4 days

0

9B

Echo 35130104130

HANDLE BRACKET KIT

Note: See Ref No. 9, Bracket ass'y P\N 35130104130

$31.99

$

Usually ships in 2-4 days

0

9C

Echo 35130104130

HANDLE BRACKET KIT

Note: See Ref No. 9, Bracket ass'y P\N 35130104130

$31.99

$

Usually ships in 2-4 days

0

10

Echo 90010005025

BOLT - 5X25

$2.99

$

Usually ships in 2-4 days

0

11

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

12

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 35131904130

SPACER

$0.99

$

Usually ships in 2-4 days

0

14

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

15

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

16

Echo 90010006030

BOLT - 6X30
(Superseded to Discontinued)

$

$

Not available

17

Echo 30120005230

HANGER KIT
(Superseded to P021012660)

$5.99

$

In Stock, only 4 left!

0

18

Echo 90010005012

BOLT - 5X12

$0.99

$

In Stock, Qty 5

0

19

Echo 61020609130

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes items 20 thru 21

$

$

Not available

20

Echo 61010504930

STOPPER

$27.99

$

Usually ships in 2-4 days

0

21

Echo 61011204930

O-RING

$3.99

$

Usually ships in 2-4 days

0

22

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

25

Echo 17802406130

BRACKET, TRIGGER

$5.49

$

Usually ships in 2-4 days

0

26

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

27

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, only 1 left!

0

28

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

29

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

30

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

31

Echo 17804305230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 7

0

32

Echo 35131504230

GRIP, HANDLE
(Superseded to 35131527930)

$5.49

$

In Stock, only 1 left!

0

33

Echo 35101005530

HANDLE

$27.99

$

Usually ships in 2-4 days

0

34

Echo 17800209131

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

35

Echo 17810605330

CLAMP

$4.99

$

Usually ships in 2-4 days

0

36

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

37

Echo 17811104930

BRACKET

$1.99

$

Usually ships in 2-4 days

0

38

Echo 17812704930

TUBE
(Superseded to Discontinued)

$

$

Not available

39

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

42

Echo 30100105330

SHOULDER STRAP ASSY
(Superseded to 30100048930)

$21.99

$

In Stock, only 1 left!

0
