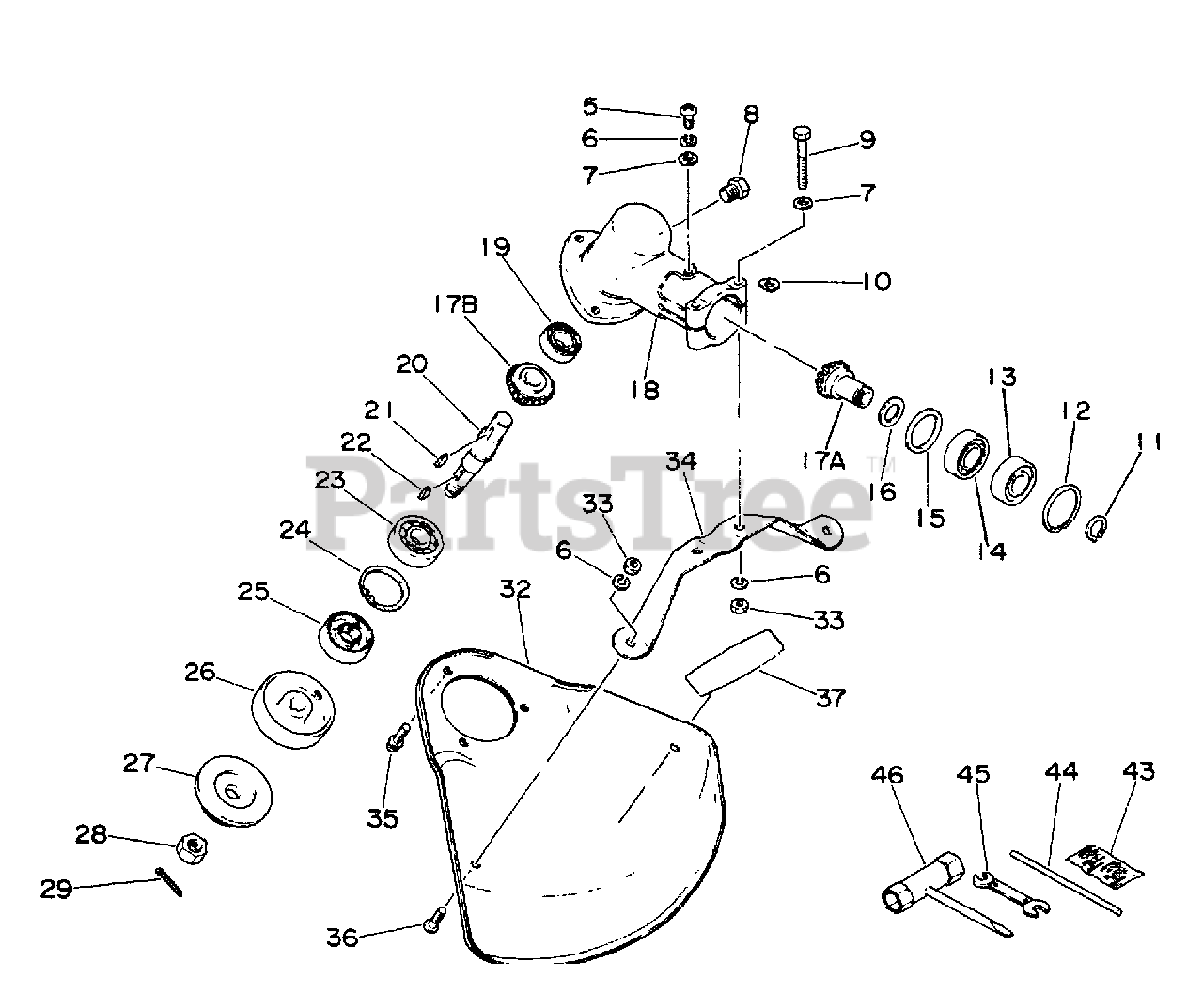

SRM-300 AE - Echo String Trimmer Shield, Gear Case, Tools Parts Diagram

String Trimmer

Shield, Gear Case, Tools Parts Diagram

  • Title

Echo 61040007530

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 9

0

6

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

7

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

9

Echo 90010005040

BOLT - 5X40

$0.99

$

In Stock, Qty 6

0

10

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

11

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

12

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

13

Echo 90080106001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 4 left!

0

14

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 6

0

15

Echo 61031604130

WASHER

$0.99

$

Usually ships in 2-4 days

0

16

Echo 61031705330

WASHER

$0.99

$

Usually ships in 2-4 days

0

18

Echo 61041007530

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

19

Echo 90080006000

BEARING, BALL - 6000

$10.99

$

Usually ships in 2-4 days

0

20

Echo 61031005330

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

21

Echo 10013101620

KEY

$2.99

$

Usually ships in 2-4 days

0

22

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

23

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

24

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 15

0

25

Echo 61041305330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

26

Echo 61031304130

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

27

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, only 2 left!

0

28

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

29

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

32

Echo 69900007531

SHIELD
(Superseded to Discontinued)

Note: Includes items 6 and 33 thru 36

$

$

Not available

33

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

34

Echo 69901507532

BRACKET, SHIELD
(Superseded to 69901523532)

$7.49

$

Usually ships in 2-4 days

0

35

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

36

Echo 90022005008

SCREW - 5X8

$0.99

$

In Stock, Qty 12

0

37

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 8

0

43

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 2 left!

0

44

Echo 89751801131

LOCKING TOOL

$

$

Not available

45

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

46

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

Echo 69500121430

BLADE, 25mm ID - 10" (25cm)

Note: OPTIONAL

$

$

Currently unavailable

Echo 69600121430

BLADE, 30 TOOTH - 25mm -- 8"

Note: OPTIONAL

$

$

Not available
