SRM-280 U - Echo Brush Cutter (SN: S82513001001 - S82513999999) Gear Case S/N: S82513001001-S82513007917 Parts Diagram

Brush Cutter

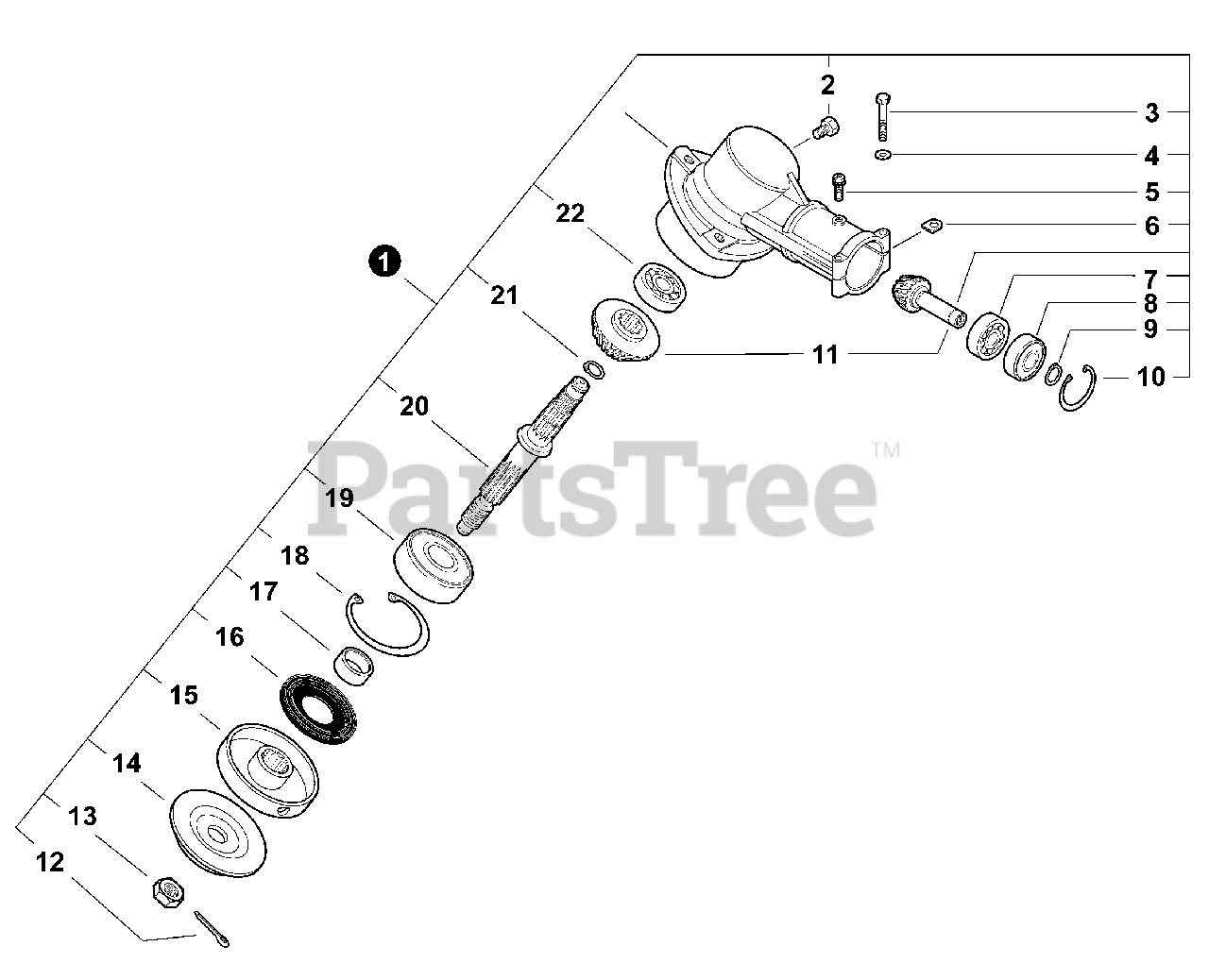

Gear Case S/N: S82513001001-S82513007917 Parts Diagram

  • Title

1

Echo P021038040

GEAR CASE ASY
(Superseded to P021046670)

Note: Includes Items 2-22

$158.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT - 8×8

$1.99

$

In Stock, Qty 6

0

3

Echo 90010005035

BOLT - 5×35

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060000005

WASHER

$0.99

$

In Stock, Qty 20+

0

5

Echo 90024205010

SCREW - 5×10

$0.99

$

In Stock, Qty 20+

0

6

Echo 61023904130

WASHER, SHIM

$0.99

$

In Stock, Qty 10

0

7

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

8

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

9

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

10

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

11

Echo 61030044830

GEAR SET - BEVEL

$88.99

$

Usually ships in 2-4 days

0

12

Echo 90030020022

PIN, SPLIT - 2X22

$0.99

$

In Stock, Qty 20+

0

13

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 6

0

14

Echo C535000150

PLATE, ADAPTER - LOWER

$9.49

$

In Stock, only 2 left!

0

15

Echo C535000160

ADAPTER, BLADE - UPPER

$10.99

$

In Stock, Qty 18

0

16

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

17

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 5

0

18

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 14

0

19

Echo 90081006201

BEARING, BALL - 6201

$6.99

$

Usually ships in 2-4 days

0

20

Echo 61036008931

GEAR, SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

21

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

22

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 11

0
