SRM-280 T - Echo String Trimmer (SN: S74212001001 - S74212999999) Gear Case Parts Diagram

String Trimmer

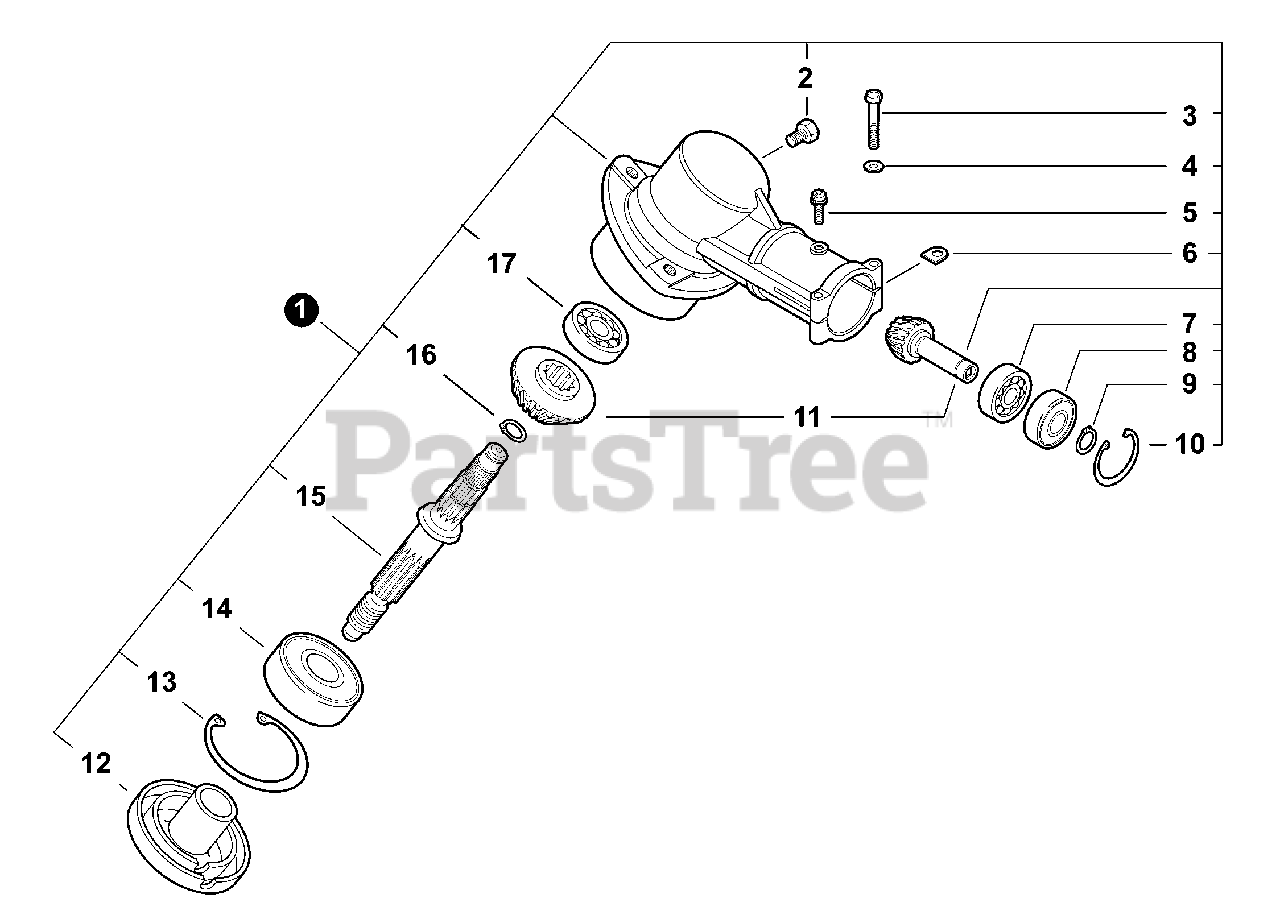

Gear Case Parts Diagram

  • Title

1

Echo P021013432

GEAR CASE ASSY

Note: Includes Items 2-18

$125.99

$

In Stock, only 2 left!

0

2

Echo 61043450031

BOLT - 8×8

$1.99

$

In Stock, only 3 left!

0

3

Echo 90010005035

SCREW - 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060000005

WASHER

$0.99

$

In Stock, Qty 20+

0

5

Echo 90024205012

SCREW - 5×10

$0.99

$

In Stock, Qty 20+

0

6

Echo 61023904130

WASHER, SHIM

$0.99

$

In Stock, Qty 10

0

7

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

8

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

9

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

10

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

11

Echo V000000020

GEAR SET - BEVEL

$61.99

$

In Stock, only 3 left!

0

12

Echo C535000320

ADAPTER, BLADE - UPPER

$9.99

$

In Stock, Qty 7

0

13

Echo 90070200042

RING, RETAINING - 32

$1.99

$

In Stock, Qty 18

0

14

Echo 90081206302

WASHER

$16.99

$

In Stock, Qty 7

0

15

Echo C534000220

BEARING, BALL - 6201

$60.99

$

In Stock, only 1 left!

0

16

Echo 90070600012

GEAR, SHAFT

$1.49

$

In Stock, Qty 10

0

17

Echo 90081000629

RING, RETAINING - 12

$15.99

$

In Stock, only 2 left!

0
