SRM-280 S - Echo String Trimmer (SN: S81613001001 - S81613999999) Gear Case S/N: S81613001001-S81613008527 Parts Diagram

String Trimmer

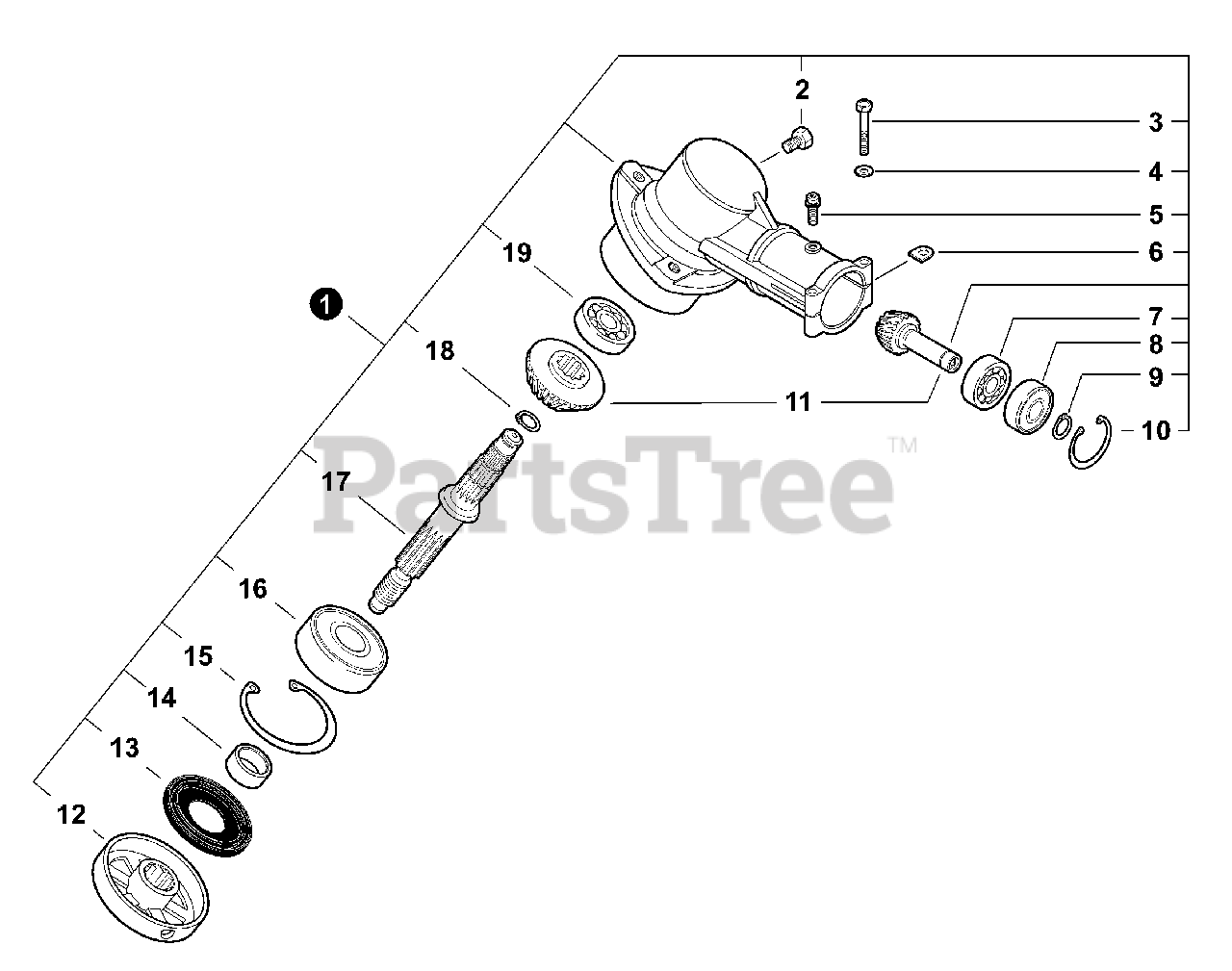

Gear Case S/N: S81613001001-S81613008527 Parts Diagram

  • Title

1

Echo 61040057732

GEAR CASE ASY
(Superseded to 61040057733)

Note: Includes Items 2-19

$150.99

$

In Stock, Qty 6

0

2

Echo 61043450031

BOLT - 8×8

$1.99

$

In Stock, Qty 6

0

3

Echo 90010005035

BOLT - 5×35

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060000005

WASHER

$0.99

$

In Stock, Qty 20+

0

5

Echo 90024205010

SCREW - 5×10

$0.99

$

In Stock, Qty 20+

0

6

Echo 61023904130

WASHER, SHIM

$0.99

$

In Stock, Qty 10

0

7

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

8

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

9

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

10

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

11

Echo 61030040930

GEAR SET - BEVEL

$74.99

$

Usually ships in 2-4 days

0

12

Echo 61031347731

ADAPTER, BLADE - UPPER

$12.99

$

In Stock, Qty 18

0

13

Echo 61041307130

SEAL, OIL

$5.99

$

In Stock, Qty 11

0

14

Echo 61031507130

SPACER

$3.99

$

In Stock, Qty 5

0

15

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

16

Echo 90081006201

BEARING, BALL - 6201

$6.99

$

Usually ships in 2-4 days

0

17

Echo 61036008931

GEAR, SHAFT
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

18

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 6

0

19

Echo 90080000609

BEARING, BALL - 609

$9.99

$

In Stock, Qty 11

0
