SRM-280 - Echo String Trimmer (SN: S74012001001 - S74012999999) Throttle Control S/N: S74012001001-S74012016577 Parts Diagram

String Trimmer

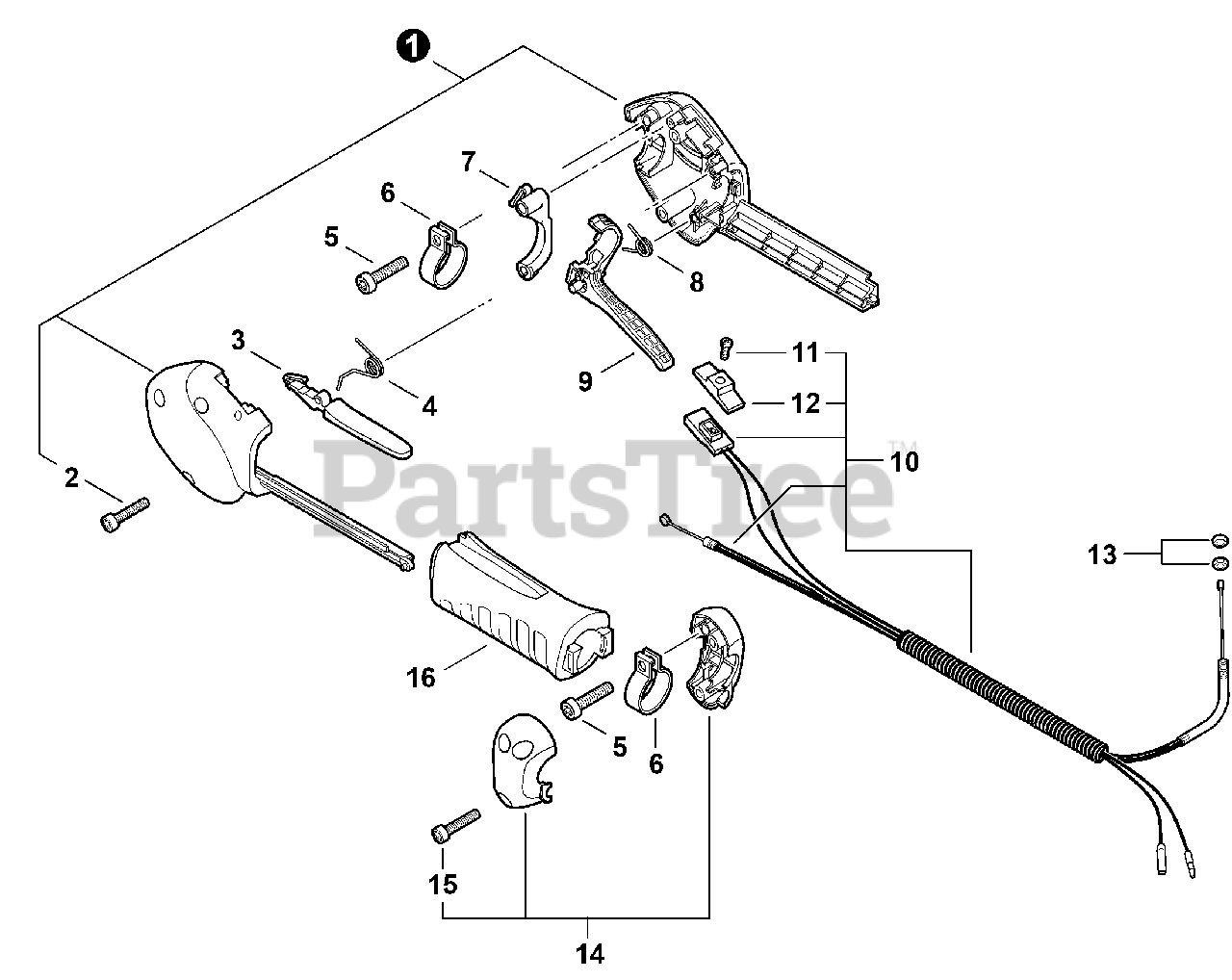

Throttle Control S/N: S74012001001-S74012016577 Parts Diagram

  • Title

1

Echo P021009961

CONTROL HANDLE KIT

Note: Includes Item 2

$10.99

$

In Stock, only 1 left!

0

2

Echo 88995021060

SCREW - 4×22 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

3

Echo C460000051

LEVER, THROTTLE LOCKOUT

$1.49

$

In Stock, Qty 20+

0

4

Echo V452000240

SPRING, LEVER RETURN

$0.99

$

In Stock, Qty 20+

0

5

Echo 90016205020

SCREW - 5×20

$1.49

$

In Stock, Qty 20+

0

6

Echo V495000680

CLAMP

$1.49

$

In Stock, only 3 left!

0

7

Echo C453000151

LOCKOUT, TRIGGER

$2.99

$

In Stock, Qty 20+

0

8

Echo V452000210

SPRING, TRIGGER
(Superseded to V452000211)

$0.99

$

In Stock, Qty 20+

0

9

Echo C450000183

TRIGGER, THROTTLE

$2.99

$

In Stock, Qty 20+

0

10

Echo V043000100

CONTROL CABLE ASY
(Superseded to P021052450)

Note: Includes Items 11-12

$16.99

$

In Stock, Qty 9

0

11

Echo 9154503010

SCREW - 3×10

$0.99

$

In Stock, Qty 20+

0

12

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

13

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

14

Echo P021009970

HANDLE FIXTURE KIT

Note: Inlcudes Item 15

$4.99

$

Usually ships in 2-4 days

0

15

Echo 88995021060

SCREW - 4×22 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

16

Echo C412000090

GRIP, HANDLE

$5.49

$

Usually ships in 2-4 days

0
