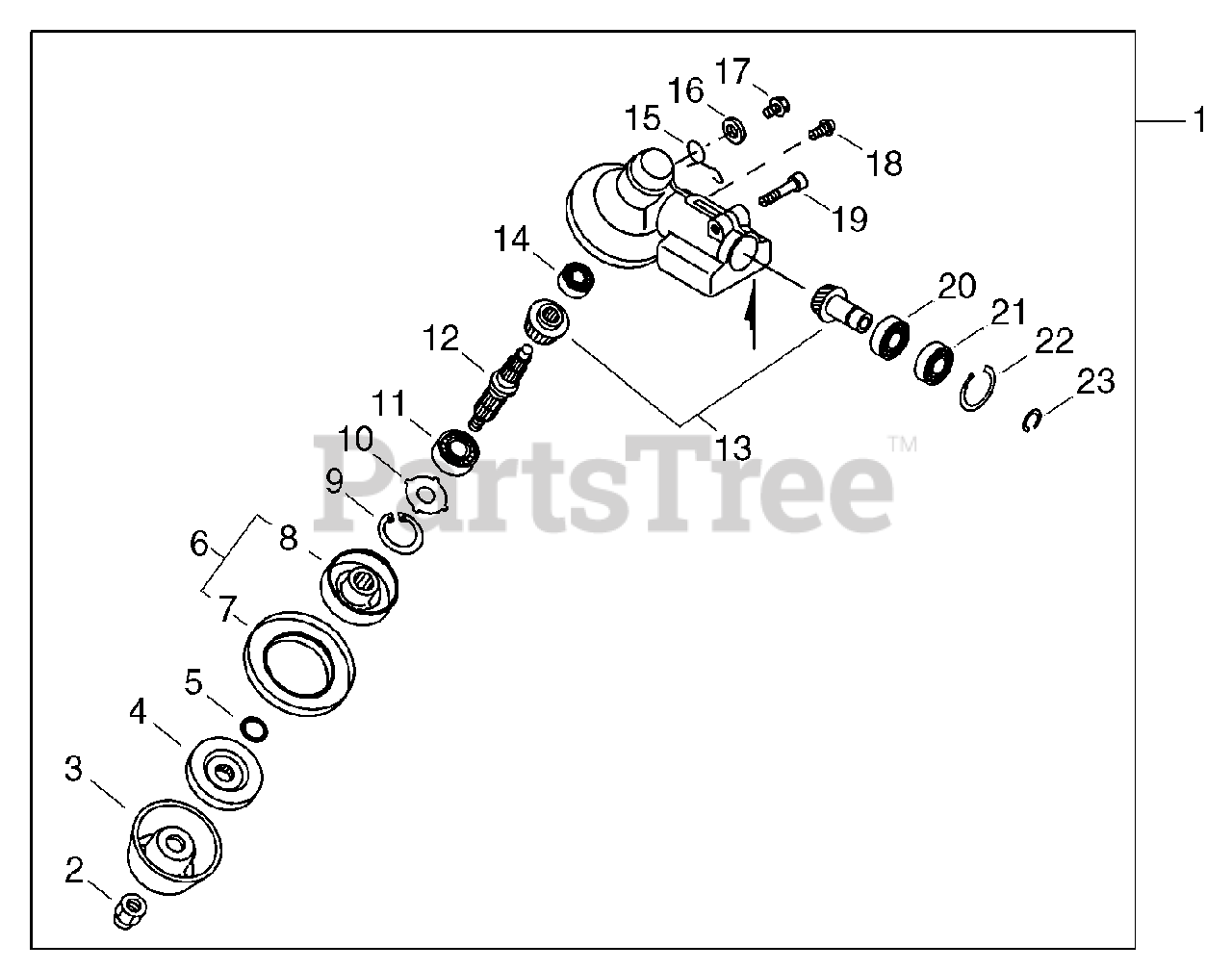

SRM-270 U - Echo Brush Cutter (SN: S52520001001 - S52520999999) Gear Case Parts Diagram

Brush Cutter

Gear Case Parts Diagram

  • Title

1

Echo P021012613

GEAR CASE ASSY
(Superseded to P021012614)

$157.99

$

Usually ships in 2-4 days

0

2

Echo 61032052130

NUT - 10

$4.99

$

Usually ships in 2-4 days

0

3

Echo 69922956830

GUARD

$24.99

$

Usually ships in 2-4 days

0

4

Echo 61031452130

ADAPTOR, BLADE - LOWER

$22.99

$

Usually ships in 2-4 days

0

5

Echo 90072000012

O-RING - 12

$1.49

$

In Stock, only 2 left!

0

6

Echo C535000001

BLADE ADAPTER KIT
(Superseded to 61031352932)

$38.99

$

Usually ships in 2-4 days

0

7

Echo 61035256830

RETAINER, BLADE

$22.99

$

Usually ships in 2-4 days

0

8

Echo C535000011

ADAPTOR, BLADE - UPPER

$34.99

$

Usually ships in 2-4 days

0

9

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 15

0

10

Echo 61044456830

WASHER

$1.49

$

Usually ships in 2-4 days

0

11

Echo 90081206201

BEARING, BALL - 6201

$12.99

$

In Stock, only 3 left!

0

12

Echo 61031056831

GEAR - SHAFT
(Superseded to 61031056832)

$46.99

$

Usually ships in 2-4 days

0

13

Echo V000000040

GEAR SET

$113.99

$

Usually ships in 2-4 days

0

14

Echo 9406000626

BEARING, BALL - 626
(Superseded to 90081000626)

$11.99

$

Usually ships in 2-4 days

0

15

Echo V452001310

SPRING

$6.99

$

Usually ships in 2-4 days

0

16

Echo 90060350008

WASHER - 8

$1.49

$

Usually ships in 2-4 days

0

17

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, only 3 left!

0

18

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

19

Echo 9111806025

SCREW - 6X25

$1.99

$

Usually ships in 2-4 days

0

20

Echo 9406006900

BEARING, BALL - 6900
(Superseded to 90085506900)

$18.99

$

In Stock, Qty 5

0

21

Echo 9406306900

BEARING, BALL - 6900Z
(Superseded to 90085806900)

$22.99

$

In Stock, Qty 6

0

22

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

23

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0
