SRM-270 - Echo String Trimmer (SN: 36001001 - 36999999) Fuel Tank Parts Diagram

String Trimmer

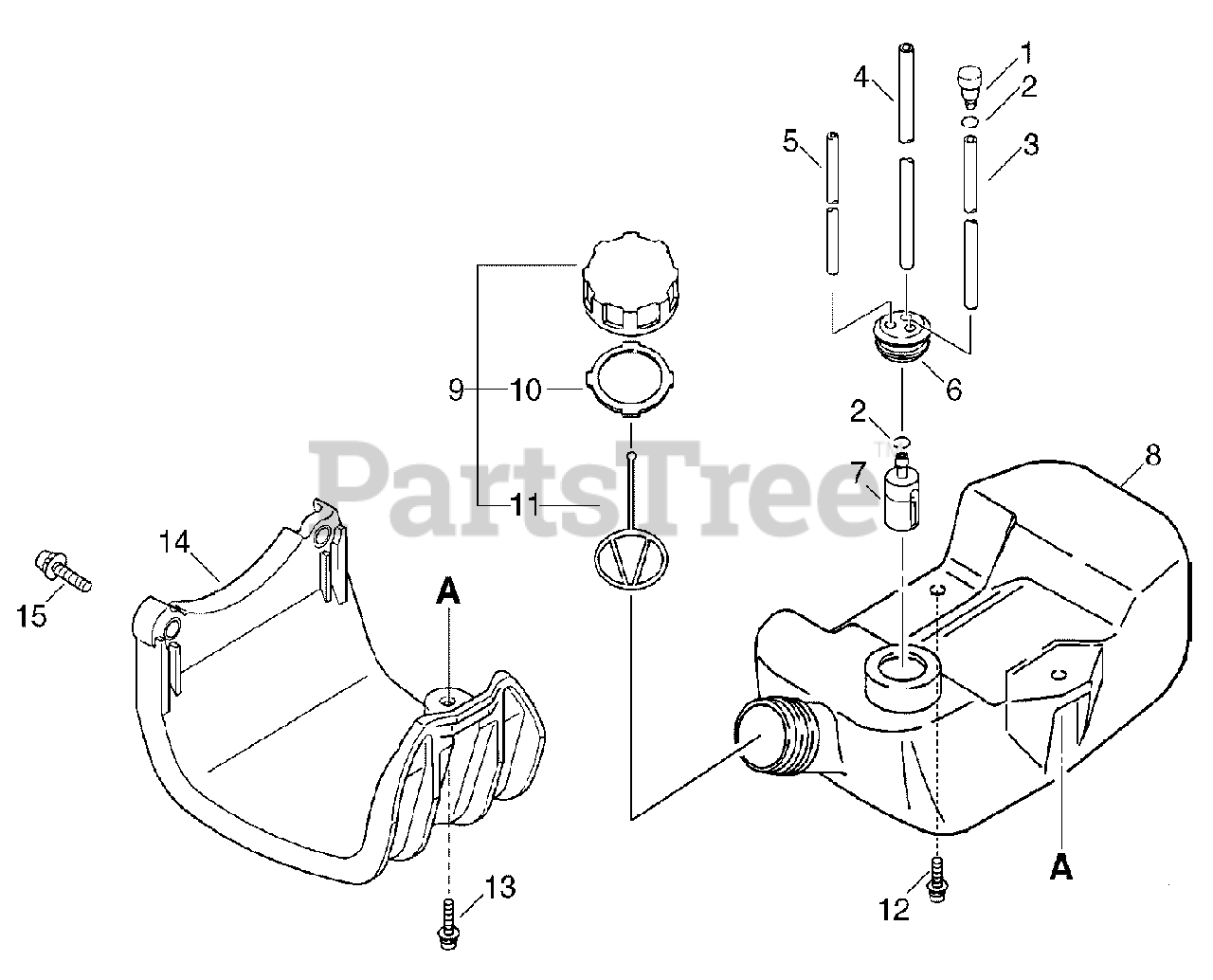

Fuel Tank Parts Diagram

  • Title

1

Echo 13130056430

VENT, FUEL TANK
(Superseded to 13130056431)

$7.49

$

In Stock, Qty 11

0

2

Echo 13201326630

CLIP - 6.5
(Superseded to V490001230)

$0.99

$

In Stock, Qty 20+

0

3

Echo 43721720760

PIPE - 3X6X100 -- BLACK
(Superseded to 43721720761)

$5.49

$

In Stock, only 1 left!

0

4

Echo 13201052030

PIPE - 3X6X170 -- BLACK
(Superseded to 13201052031)

$2.99

$

In Stock, Qty 15

0

5

Echo 43721520760

PIPE - 3X6X60 -- CLEAR

$1.99

$

In Stock, Qty 15

0

6

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

7

Echo 13120519830

FILTER, FUEL
(Superseded to 13120519831)

$9.49

$

In Stock, Qty 20+

0

8

Echo 13100556532

TANK, FUEL

$22.99

$

In Stock, only 1 left!

0

9

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

$6.49

$

In Stock, Qty 9

0

10

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

11

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

12

Echo 90023905016

SCREW - 5X16
(Superseded to Discontinued)

$

$

Not available

13

Echo 90024405020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

14

Echo 30511057733

GUARD, FUEL TANK

$14.99

$

In Stock, only 2 left!

0

15

Echo 9111805022

SCREW - 5X22

$1.49

$

Usually ships in 2-4 days

0
