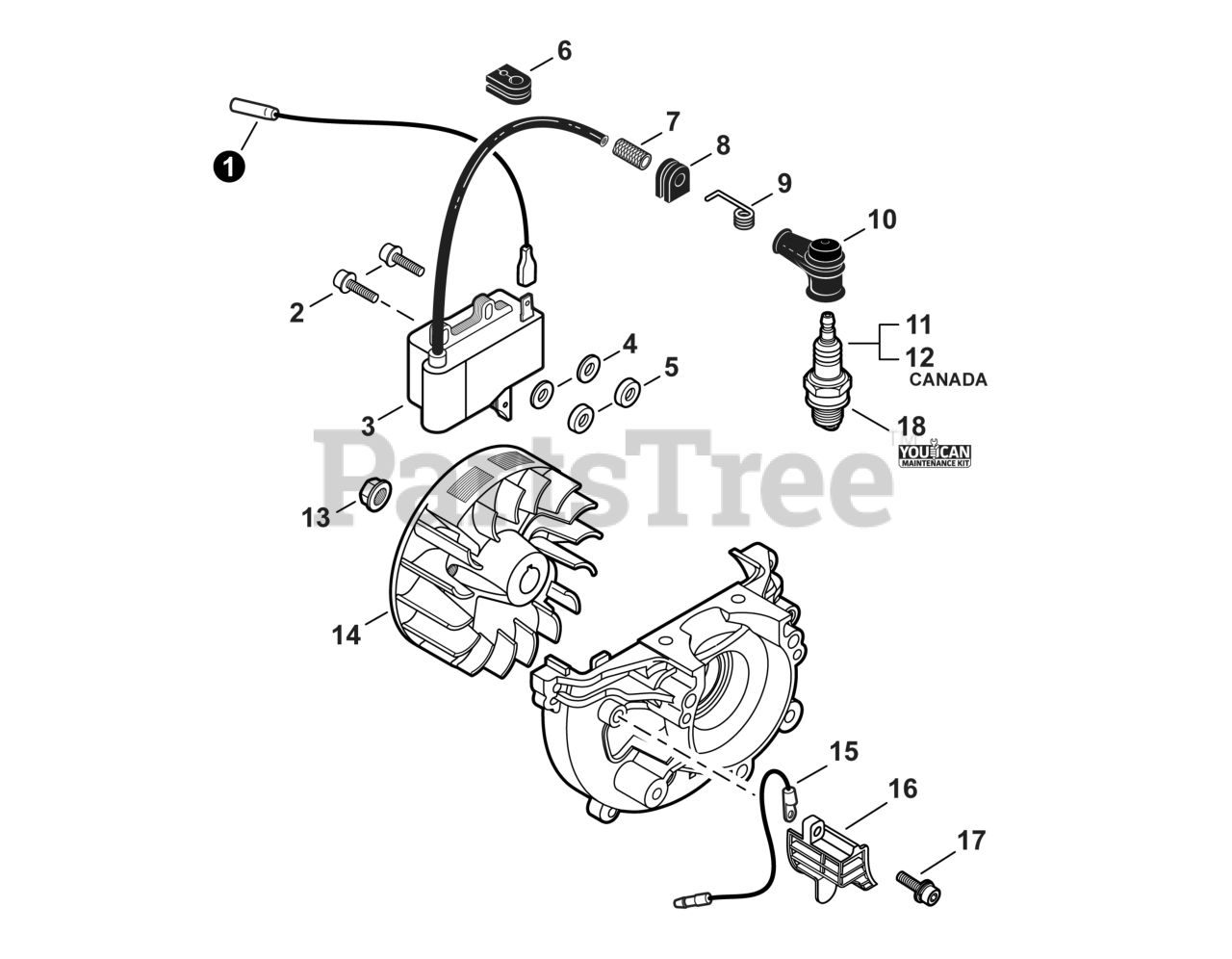

SRM-266 - Echo String Trimmer (SN: U54313001001 - U54313999999) Ignition Parts Diagram

String Trimmer

Ignition Parts Diagram

  • Title

1

Echo V485002331

LEAD - IGNITION

$3.99

$

In Stock, only 2 left!

0

2

Echo V202000130

BOLT 4

$0.99

$

Usually ships in 2-4 days

0

3

Echo A411000252

COIL, IGNITION

$87.99

$

In Stock, Qty 10

0

4

Echo 90060300004

WASHER 4 MM

$0.99

$

In Stock, Qty 5

0

5

Echo V322000031

INSULATOR 4

$0.99

$

In Stock, Qty 13

0

6

Echo V135000030

GROMMET

$1.49

$

In Stock, only 4 left!

0

7

Echo V475003380

TUBE, INSULATOR

$0.99

$

In Stock, Qty 7

0

8

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 8

0

9

Echo A426000010

TERMINAL, SPARK PLUG

$1.49

$

In Stock, Qty 17

0

10

Echo A427000013

CAP, SPARK PLUG

$2.99

$

In Stock, Qty 9

0

11

Echo 15901019830

SPARK PLUG - BPM8Y

$3.49

$

In Stock, Qty 20+

0

12

Echo A425000000

SPARK PLUG - BPMR8Y

Note: Included In Tune-up kit

$3.49

$

In Stock, Qty 20+

0

13

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 3 left!

0

14

Echo A409001222

FLYWHEEL

$125.99

$

Usually ships in 2-4 days

0

15

Echo 15663543130

LEAD - GROUND

$1.99

$

In Stock, only 3 left!

0

16

Echo A127000160

COVER, DUST

$1.49

$

Usually ships in 2-4 days

0

17

Echo 90016205016

BOLT 5x16

$1.49

$

In Stock, Qty 20+

0

18

Echo 90125Y

TUNE-UP KIT - YOUCANT

$21.99

$

In Stock, Qty 20+

0
