SRM-266 - Echo String Trimmer (SN: U54313001001 - U54313999999) Fuel System Parts Diagram

String Trimmer

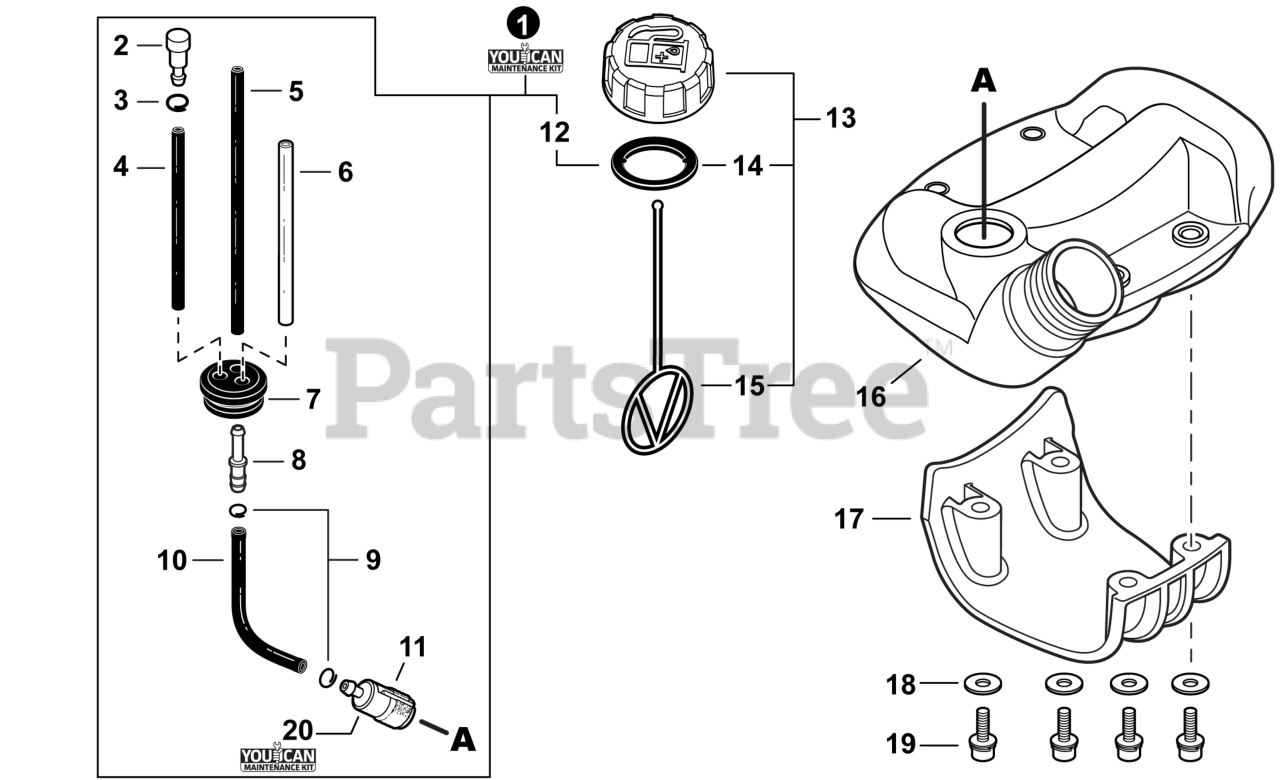

Fuel System Parts Diagram

  • Title

1

Echo 90137Y

FUEL SYSTEM KIT - YOUCANT

Note: Includes items 2-12

$27.99

$

In Stock, only 3 left!

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

4

Echo V471001181

PIPE, FUEL 3x6x35 BLACK

$1.99

$

In Stock, Qty 15

0

5

Echo V471005600

PIPE, FUEL 3x5.5x67 BLACK

$2.99

$

In Stock, only 1 left!

0

6

Echo 13201040830

PIPE, FUEL 3x6x75 CLEAR

$1.99

$

In Stock, Qty 20+

0

7

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 18

0

10

Echo V471003651

PIPE, FUEL - 3x5x125 - BLACK

$1.49

$

In Stock, Qty 6

0

11

Echo A369000440

FILTER, FUEL

Note: Included In Tune-up and Fuel system kit

$6.99

$

In Stock, Qty 20+

0

12

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

13

Echo P021040030

CAP ASSY, FUEL

Note: Includes items 14-15

$5.99

$

In Stock, Qty 20+

0

14

Echo V107000150

GASKET, FUEL CAP

Note: Included in Fuel system kit

$4.49

$

In Stock, Qty 20+

0

15

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

16

Echo P021054050

TANK, FUEL

$32.99

$

In Stock, only 1 left!

0

17

Echo A175000030

GUARD, FUEL TANK

$5.49

$

In Stock, only 1 left!

0

18

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 90016205025

BOLT 5x25

$0.99

$

In Stock, Qty 20+

0

20

Echo 90125Y

TUNE-UP KIT - YOUCANT

$21.99

$

In Stock, Qty 20+

0
