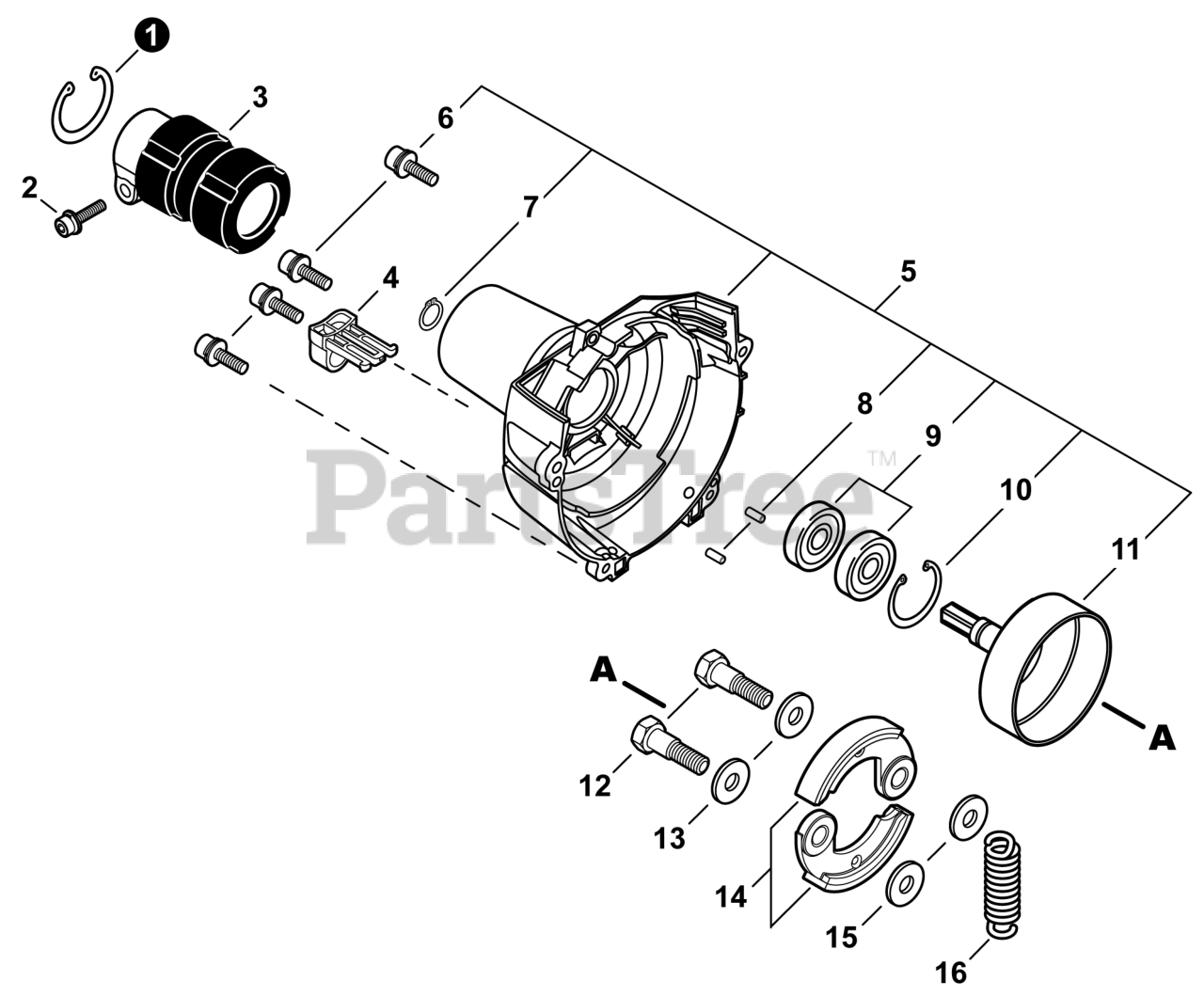

SRM-266 - Echo String Trimmer (SN: U54212001001 - U54212999999) Fan Case Parts Diagram

String Trimmer

Fan Case Parts Diagram

  • Title

1

Echo 90070200042

RING, SNAP 42

$1.99

$

In Stock, Qty 18

0

2

Echo 90016205028

BOLT 5x28

$1.99

$

In Stock, Qty 20+

0

3

Echo A575000640

HOLDER, MAIN PIPE

$18.99

$

In Stock, only 1 left!

0

4

Echo V491000180

CLIP

$0.99

$

In Stock, Qty 20+

0

5

Echo P021048600

COVER ASSY, FAN

Note: Includes items 6-11

$82.99

$

In Stock, only 1 left!

0

6

Echo V202000830

BOLT 4x16

$1.49

$

In Stock, Qty 20+

0

7

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

8

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, Qty 7

0

9

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 13

0

10

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 15

0

11

Echo A556000390

DRUM, CLUTCH

$17.99

$

In Stock, only 1 left!

0

12

Echo 17504656030

BOLT, CLUTCH 8x7.9xM6

$4.99

$

In Stock, Qty 9

0

13

Echo 17504956030

WASHER, SPRING 8.5x16x0.5

$1.49

$

In Stock, Qty 20+

0

14

Echo A553000200

SHOE, CLUTCH

$15.99

$

In Stock, Qty 20+

0

15

Echo 17504805530

WASHER 6.2x19x1.0

$1.49

$

In Stock, Qty 19

0

16

Echo V451001390

SPRING, CLUTCH

$3.49

$

In Stock, Qty 20+

0
