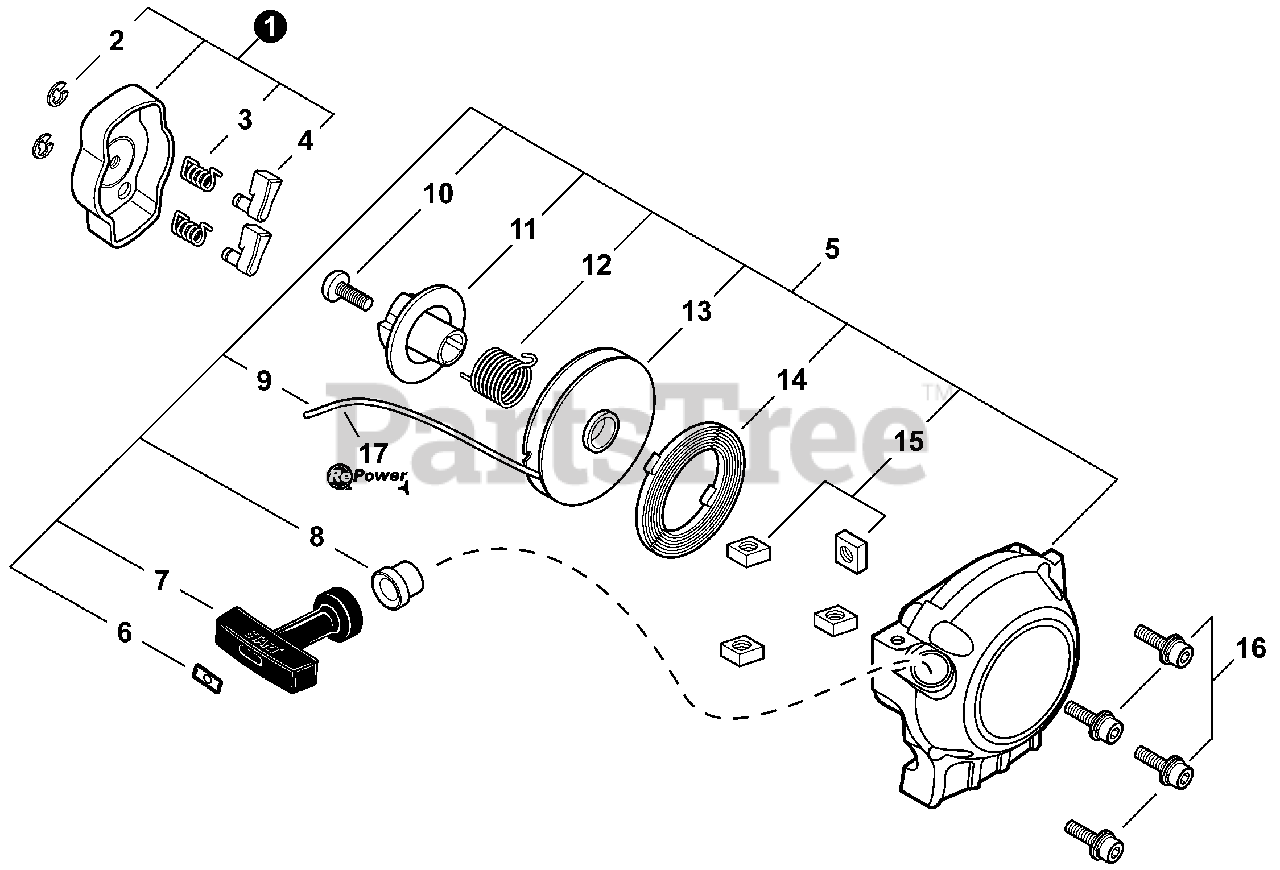

SRM-266 - Echo String Trimmer (SN: T42112001001 - T42112999999) Starter S/N: T42112014217 - T42112999999 Parts Diagram

String Trimmer

Starter S/N: T42112014217 - T42112999999 Parts Diagram

  • Title

1

Echo A052000180

PAWL ASSY, STARTER

Note: Inlcudes Items 2-4

$8.99

$

In Stock, Qty 18

0

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

0

3

Echo P022006510

SPRING, RETURN
(Superseded to 17723412220)

$3.99

$

In Stock, Qty 10

0

4

Echo P022006850

PAWL, STARTER

$3.49

$

In Stock, only 2 left!

0

5

Echo A051000941

STARTER ASSY, RECOIL

Note: Includes Items 6-15

$40.99

$

In Stock, Qty 20+

0

6

Echo P022037670

RETAINER, ROPE

$2.49

$

In Stock, Qty 7

0

7

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

8

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

9

Echo P022008260

ROPE, STARTER 3×700

$

$

Not available

10

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

11

Echo P022028000

PLATE, CAM

$3.99

$

In Stock, Qty 20+

0

12

Echo P022008270

SPRING, TORSION

$8.99

$

In Stock, Qty 20+

0

13

Echo P022027980

REEL, ROPE

$6.49

$

In Stock, only 3 left!

0

14

Echo 17722042030

SPRING, RECOIL
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

15

Echo P022022010

NUT
(Superseded to 90056500005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

17

Echo 99944440000

ROPE, STARTER - REPOWER BULK Ø3

$29.99

$

In Stock, Qty 8

0
