SRM-266 - Echo String Trimmer (SN: T42112001001 - T42112999999) Gear Case S/N: T42112024862 - T42112999999 Parts Diagram

String Trimmer

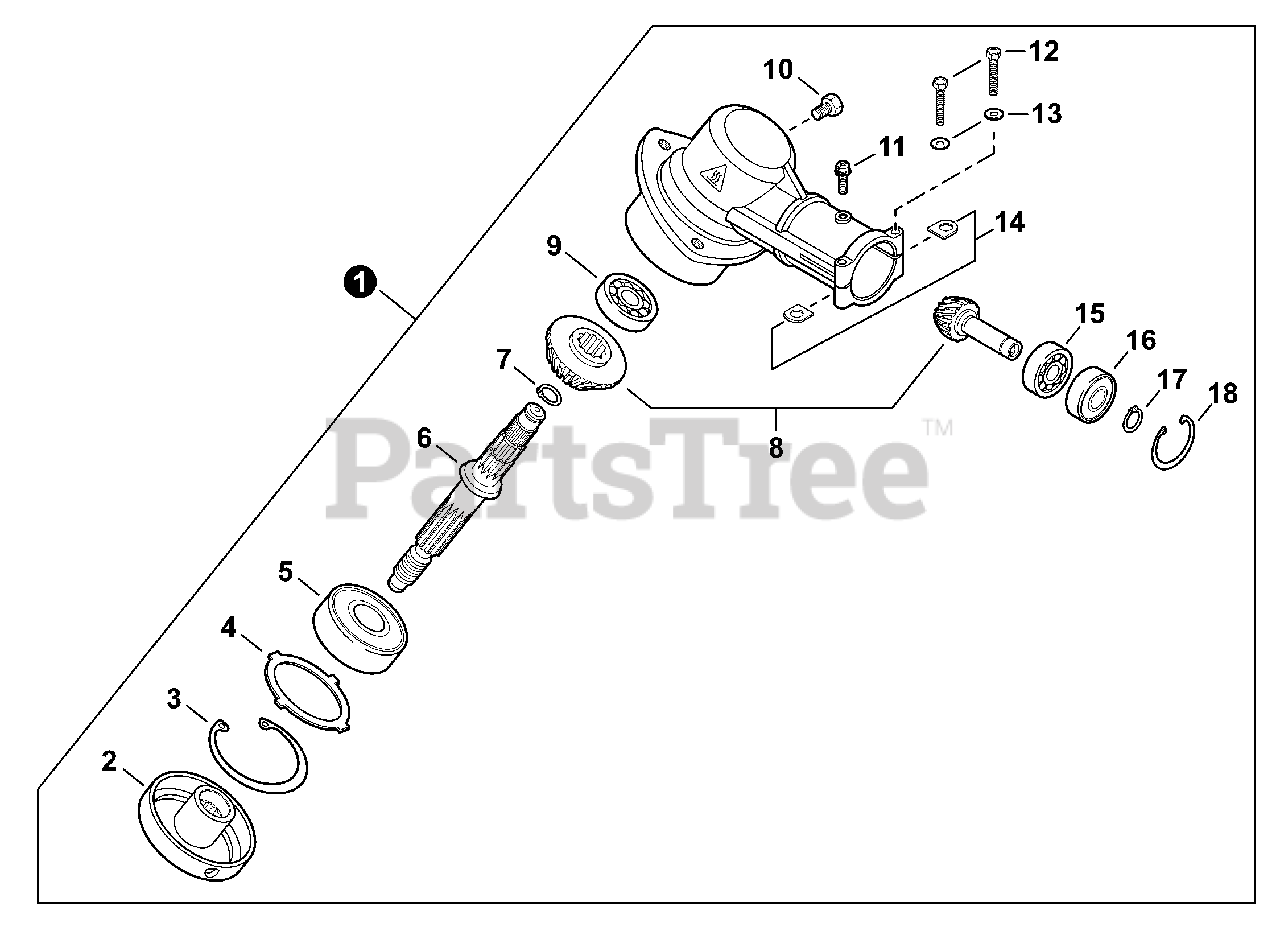

Gear Case S/N: T42112024862 - T42112999999 Parts Diagram

  • Title

1

Echo P021044540

GEAR CASE ASSY
(Superseded to P021053000)

Note: Includes Items 2-18

$98.99

$

Usually ships in 2-4 days

0

2

Echo C535000210

PLATE, ADAPTOR - UPPER

$12.99

$

Usually ships in 2-4 days

0

3

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 13

0

4

Echo V340000180

WASHER

$1.49

$

In Stock, only 4 left!

0

5

Echo 90081206201

BEARING, BALL 6201

$12.99

$

In Stock, only 2 left!

0

6

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$67.99

$

In Stock, Qty 5

0

7

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 6

0

8

Echo 61030044830

GEAR SET

$88.99

$

Usually ships in 2-4 days

0

9

Echo 9406000609

BEARING, BALL 609
(Superseded to 90080000609)

$9.99

$

In Stock, Qty 11

0

10

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

11

Echo 90024205010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

12

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 20+

0

13

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 10

0

15

Echo 9406006900

BEARING, BALL 6900
(Superseded to 90085506900)

$18.99

$

In Stock, Qty 5

0

16

Echo 9406306900

BEARING, BALL 6900Z
(Superseded to 90085806900)

$22.99

$

In Stock, Qty 6

0

17

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

18

Echo 90070200022

RING, SNAP Ø22

$1.99

$

In Stock, Qty 5

0
