SRM-266 - Echo String Trimmer (SN: T41913001001 - T41913999999) Starter S/N T41913001001 - T41913001324 Parts Diagram

String Trimmer

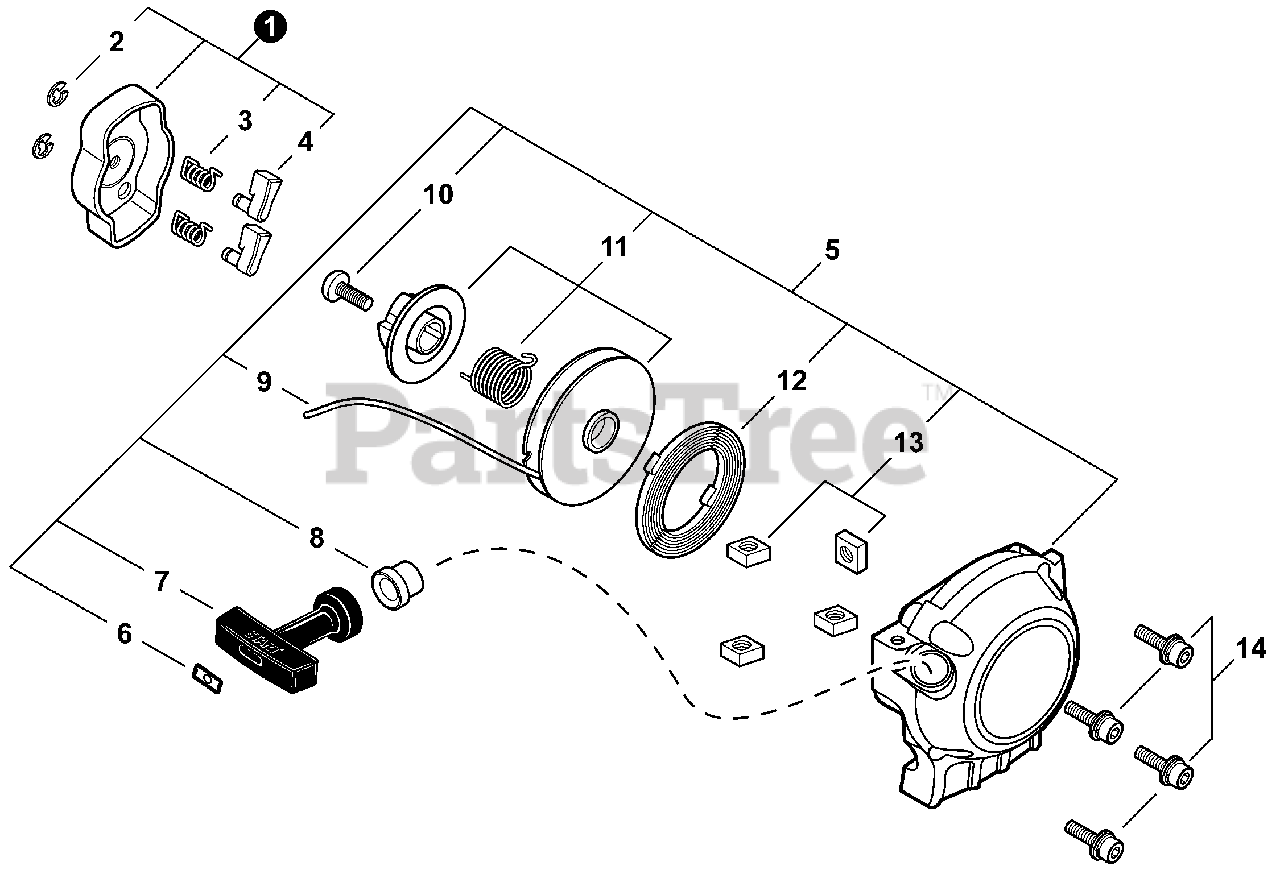

Starter S/N T41913001001 - T41913001324 Parts Diagram

  • Title

1

Echo A052000180

PAWL ASSY, STARTER

Note: Includes Items 2-4

$8.99

$

In Stock, Qty 19

0

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 8

0

3

Echo P022006510

SPRING, RETURN
(Superseded to 17723412220)

$3.99

$

In Stock, Qty 11

0

4

Echo P022006850

PAWL, STARTER

$3.49

$

In Stock, only 2 left!

0

5

Echo A051000940

STARTER ASSY, RECOIL
(Superseded to A051000941)

Note: Includes Items 6-13

$40.99

$

In Stock, Qty 20+

0

6

Echo A522000040

RETAINER, ROPE
(Superseded to 17724611120)

$2.49

$

In Stock, Qty 7

0

7

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

8

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 15

0

9

Echo A509000310

ROPE, STARTER
(Superseded to P022008260)

$

$

Not available

10

Echo V253000310

SCREW 5

$1.99

$

In Stock, Qty 11

0

11

Echo P050009900

REEL/CAM PLATE SET

$17.99

$

In Stock, Qty 20+

0

12

Echo A504000100

SPRING, RECOIL
(Superseded to 17722042030)

$9.99

$

In Stock, Qty 13

0

13

Echo P022022010

NUT
(Superseded to 90056500005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0
