SRM-266 - Echo String Trimmer (SN: T41913001001 - T41913999999) Fan Case S/N T41913001001 - T41913001942 Parts Diagram

String Trimmer

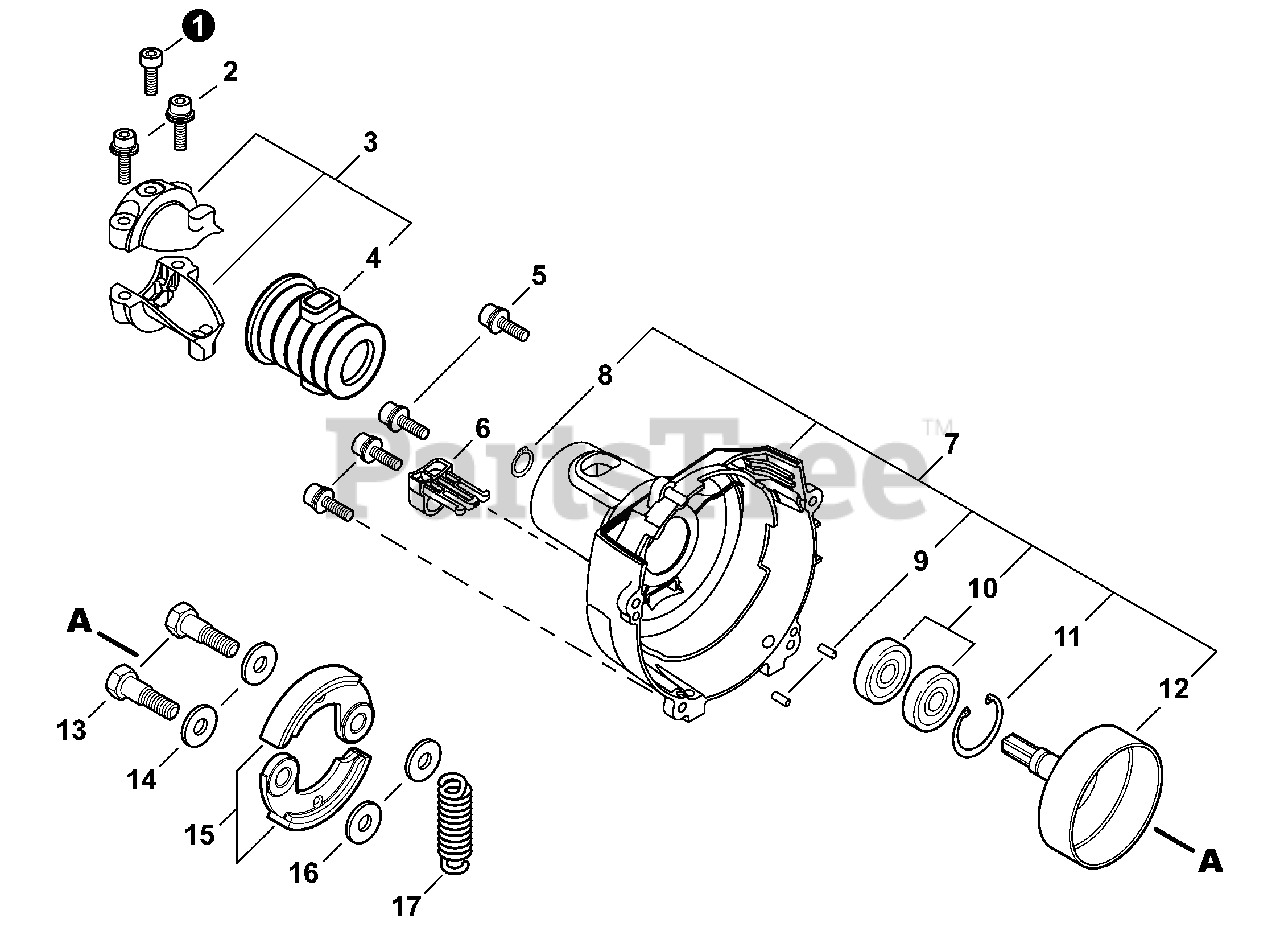

Fan Case S/N T41913001001 - T41913001942 Parts Diagram

  • Title

1

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

2

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

3

Echo P021009380

HOLDER KIT, MAIN PIPE

Note: Includes Item 4

$19.99

$

In Stock, only 3 left!

0

4

Echo V420001081

CUSHION

$8.49

$

In Stock, only 4 left!

0

5

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

6

Echo V491000180

CLIP

$0.99

$

In Stock, Qty 20+

0

7

Echo P021009790

COVER ASSY, FAN

Note: Includes Items 8-12

$82.99

$

In Stock, only 3 left!

0

8

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

9

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, Qty 7

0

10

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 6

0

11

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 13

0

12

Echo A556000390

DRUM, CLUTCH

$17.99

$

In Stock, only 3 left!

0

13

Echo 17504656030

BOLT, CLUTCH 8×7.9×M6

$4.99

$

In Stock, Qty 6

0

14

Echo 17504956030

WASHER 8.5×16×0.5

$1.49

$

In Stock, Qty 20+

0

15

Echo A553000010

SHOE, CLUTCH
(Superseded to A553000200)

$15.99

$

In Stock, Qty 20+

0

16

Echo 17504805530

WASHER 6.2×19×1.0

$1.49

$

In Stock, Qty 7

0

17

Echo V451000400

SPRING, CLUTCH
(Superseded to V451001390)

$3.49

$

In Stock, Qty 20+

0
