SRM-265 T - Echo String Trimmer (SN: S79812001001 - S79812999999) Gear Case Parts Diagram

String Trimmer

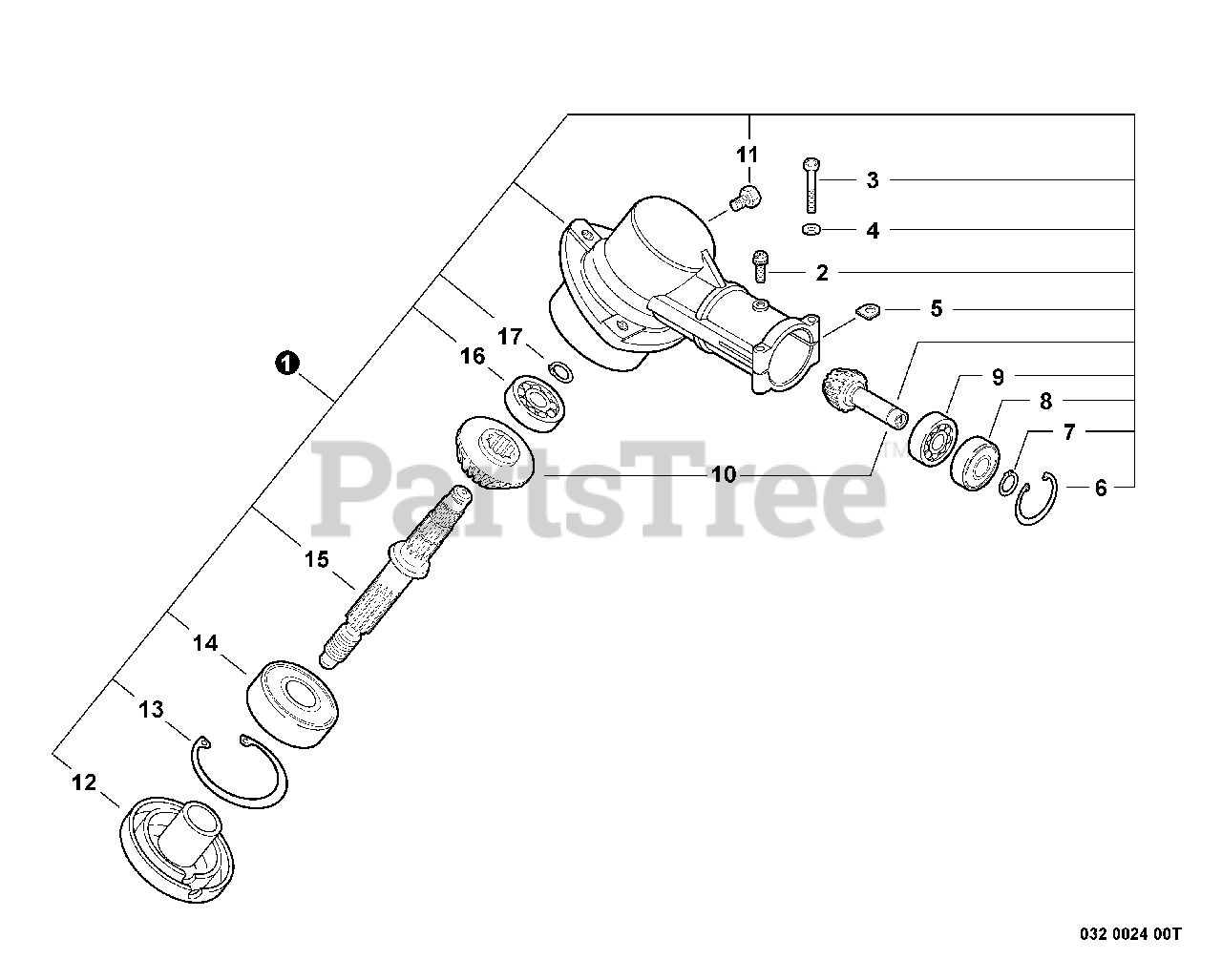

Gear Case Parts Diagram

  • Title

1

Echo P021013432

GEAR CASE ASSY

Note: Includes ITEMS 2-17

$125.99

$

In Stock, only 2 left!

0

2

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

3

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 10

0

6

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

7

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

8

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

9

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

10

Echo V000000020

GEAR SET

$61.99

$

In Stock, only 3 left!

0

11

Echo 61043450031

BOLT - 8X8

$1.99

$

In Stock, only 3 left!

0

12

Echo C535000320

ADAPTOR, BLADE - UPPER

$9.99

$

In Stock, Qty 7

0

13

Echo 90070200042

RING, RETAINING - 42

$1.99

$

In Stock, Qty 18

0

14

Echo 90081206302

BEARING, BALL - 609

$16.99

$

In Stock, Qty 7

0

15

Echo C534000220

GEAR - SHAFT

$60.99

$

In Stock, only 1 left!

0

16

Echo 90081000629

BEARING, BALL - 629

$15.99

$

In Stock, only 2 left!

0

17

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0
