SRM-265 S - Echo String Trimmer (SN: S80913001001 - S80913999999) Engine, Short Block -- SB1090 Parts Diagram

String Trimmer

Engine, Short Block -- SB1090 Parts Diagram

  • Title

1

Echo SB1090

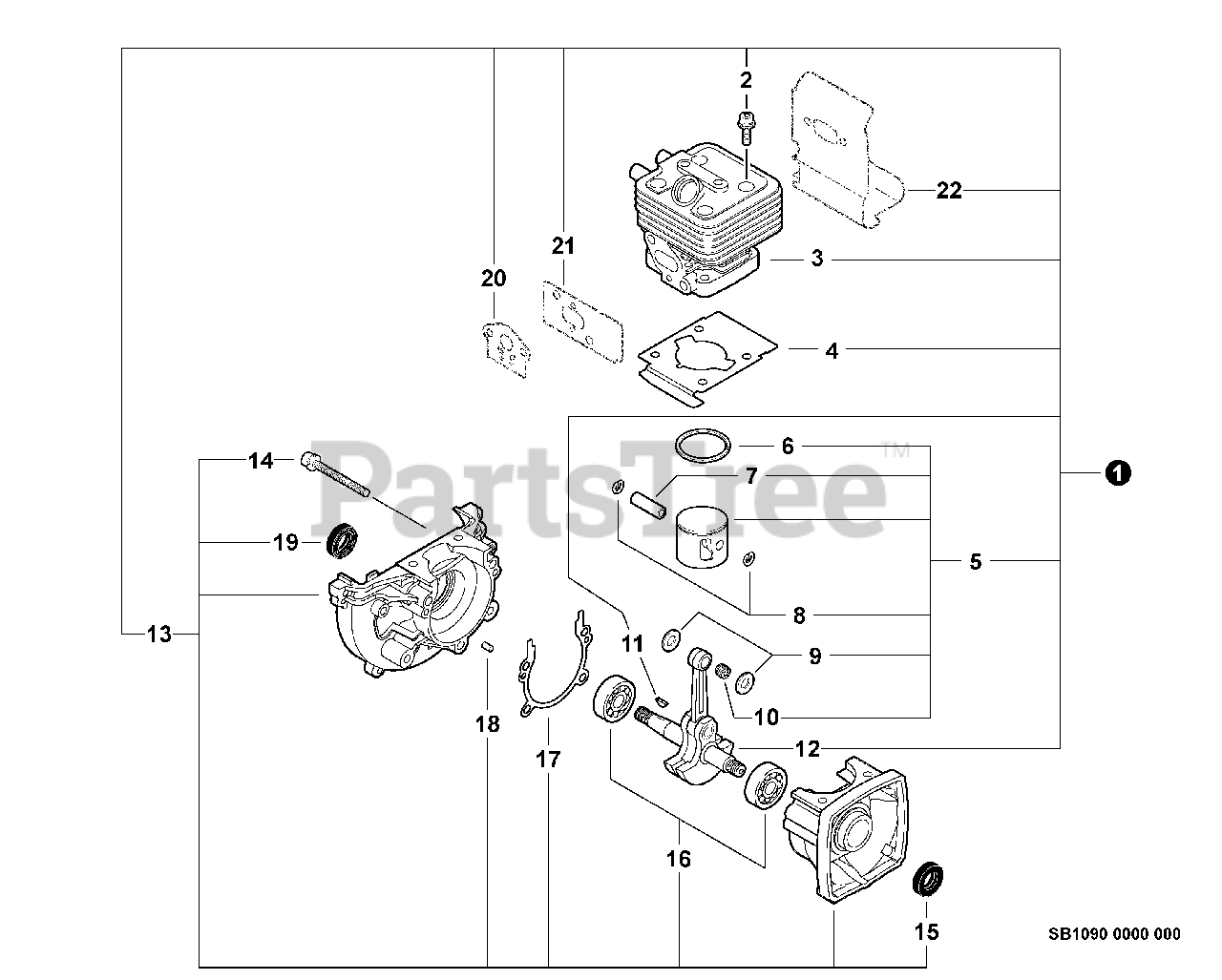

SHORT BLOCK -- SB1090
(Superseded to SB1102)

Note: Includes ITEMS 2-22

$196.99

$

In Stock, Qty 11

0

2

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000761

CYLINDER

$147.99

$

In Stock, only 2 left!

0

4

Echo V100000210

GASKET, CYLINDER

Note: Included In GASKET KIT

$7.49

$

In Stock, Qty 20+

0

5

Echo P021009771

PISTON KIT

Note: Includes ITEMS 6-10

$70.99

$

Usually ships in 2-4 days

0

6

Echo A101000170

RING, PISTON

$9.49

$

In Stock, only 2 left!

0

7

Echo 10001335430

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

8

Echo 10001503931

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

9

Echo 10001453630

SPACER, PISTON

$5.99

$

Usually ships in 2-4 days

0

10

Echo 10001216131

BEARING, NEEDLE

$10.99

$

Usually ships in 2-4 days

0

11

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 14

0

12

Echo A011000434

CRANKSHAFT ASSY

$143.99

$

Usually ships in 2-4 days

0

13

Echo P021010801

CRANKCASE KIT

Note: Includes ITEMS 14-19

$123.99

$

Usually ships in 2-4 days

0

14

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

15

Echo V505000050

SEAL, OIL

$4.49

$

In Stock, Qty 8

0

16

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

17

Echo 10024242030

GASKET, CRANKCASE

Note: Included In GASKET KIT

$1.49

$

In Stock, Qty 20+

0

18

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

19

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

20

------------------

GASKET, INTAKE

Note: Included In GASKET KIT

$

$

Not available

21

------------------

GASKET, INTAKE

Note: Included In GASKET KIT

$

$

Not available

22

------------------

SHIELD, EXHAUST

Note: Included In GASKET KIT

$

$

Not available
